Detection Module ( DM-1008A) Terminal Connections
Wire devices to terminals as shown below. See wiring tables, and Appendix A for electrical specifications and
document LT-1023 for compatible devices.

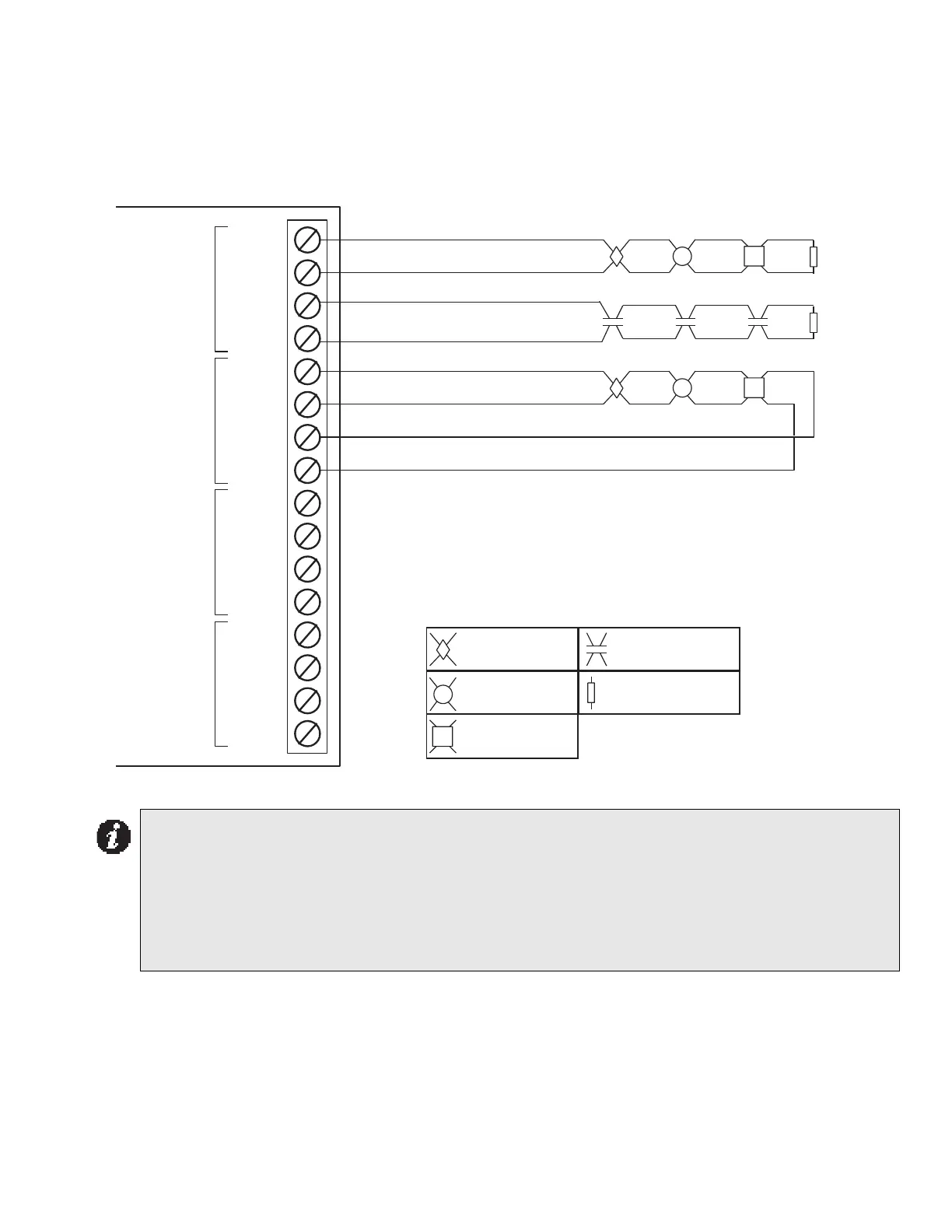

Figure 37: Hardwire Detection Module ( DM-1008A) Terminal Connections
Note:
• Terminal blocks are “depluggable” for ease of wiring.
• All power limited circuits must use type FPL, FPLR, or FPLP power limited cable.
• Initiating circuits are fully supervised and rated for 22 VDC, 3 mA standby, 5 mV ripple, 50 mA max
alar
m. They may be configured as required. The alarm threshold is 21 mA. Maximum loop resistance is
100 ohms, 50 ohms per side.
• All conventional hardwire initiating circuits are Compatibility ID "A".
SUPERVISORY OR
WATERFLOW
SWITCH (NO)
HEAT DETECTOR
Legend:
SMOKE DETECTOR
3.9K 1/2W ELR UL LISTED
INI 1+
INI 1-
INI 2+
INI 2-
INI 3+
INI 3-
INI 4+
INI 4-
INI 2
INI 1
PULL STATION
CLASS B
WIRING
CLASS B
WIRING
CLASS A
WIRING
SUPERVISED INITIATING CIRCUIT #2
(SUPERVISORY OR WATERFLOW ZONE)
(POWER LIMITED)
SUPERVISED INITIATING CIRCUIT #1
(ALARM ZONE) (POWER LIMITED)
SUPERVISED INITIATING CIRCUIT #3
(ALARM ZONE) SEE CLASS A NOTE (POWER LIMITED)
INI 5+
INI 5-
INI 6+
INI 6-
INI 7+
INI 7-
INI 8+
INI 8-
INI 4
INI 3
CLASS A NOTE: Initiating circuits of the DM-1008A
must be either all Class B or all Class A. If Class A
is selected, the number of circuits is cut in half.
