FleX-Net

Installation and Operation Manual

Figure 46 below shows the FleX-Net™ fire alarm and audio shown within the Integrated Network Fire/Audio cabinet

as Node 2 and 3. Paging and telephone devices are hooked up to Nodes 2 and 3.

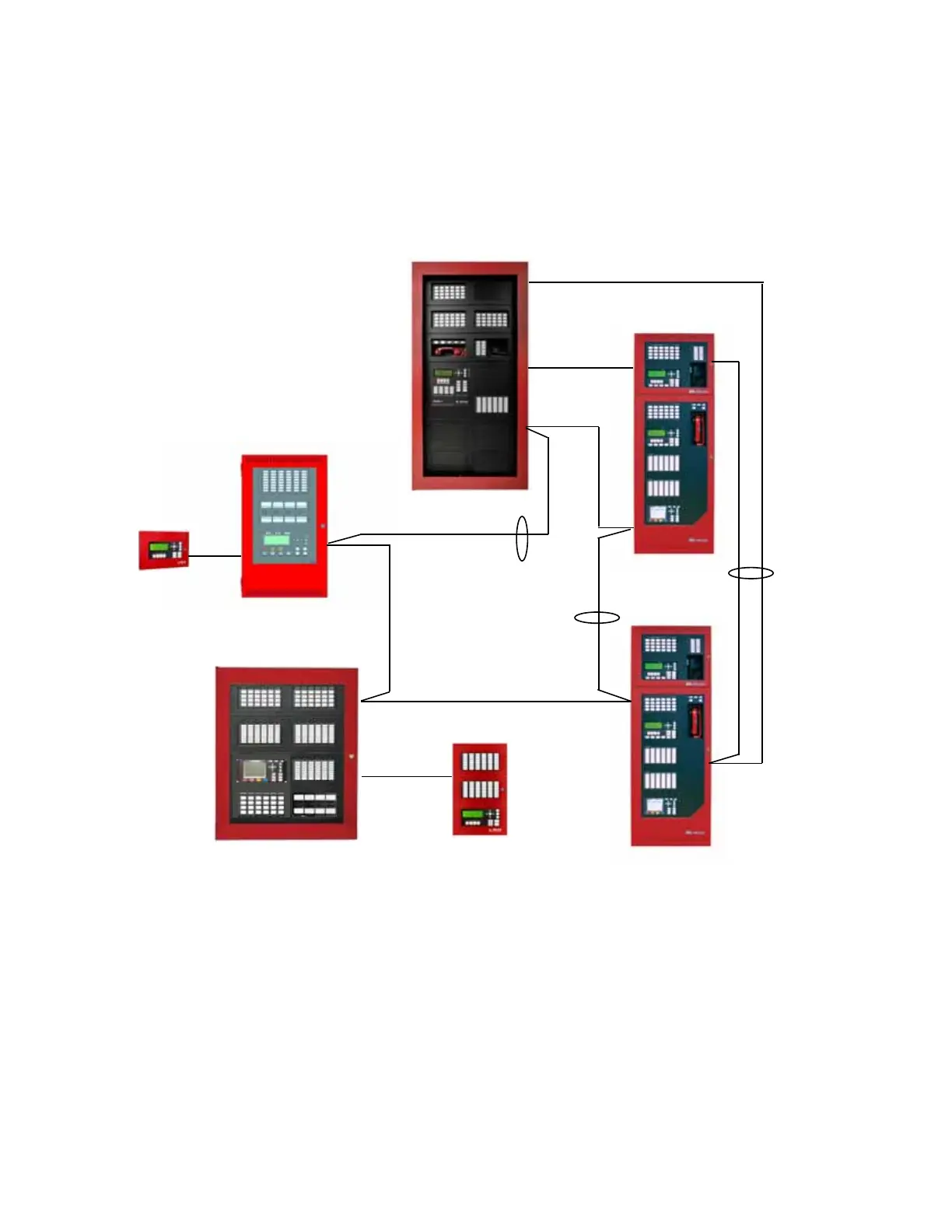

Figure 46: Typical FX-2000N Network System w ith Audio and Non-Audio Nodes

CACF

Node 1

Node 2

Node 3

Node 4

RAXN-LCD in a BB-1003DR

RS-485

RAXN-LCD in a BB-1001DR

Node 5

FXMNS

FX-2009-12NDS in a BB-5008R

FX-2003-12NDS in a BBX-1024DSR

FXMNS

Optional

1 pair for Paging Audio

1 pair for Telephone Audio

1 pair for ARCnet Network

Class A Wiring

NOTE: Wiring for ARCnet Network, Audio and Telephone can be as

shown (3 pairs) or 1 pair as shown in Figure 43
