Audio Amplifier Wiring
92

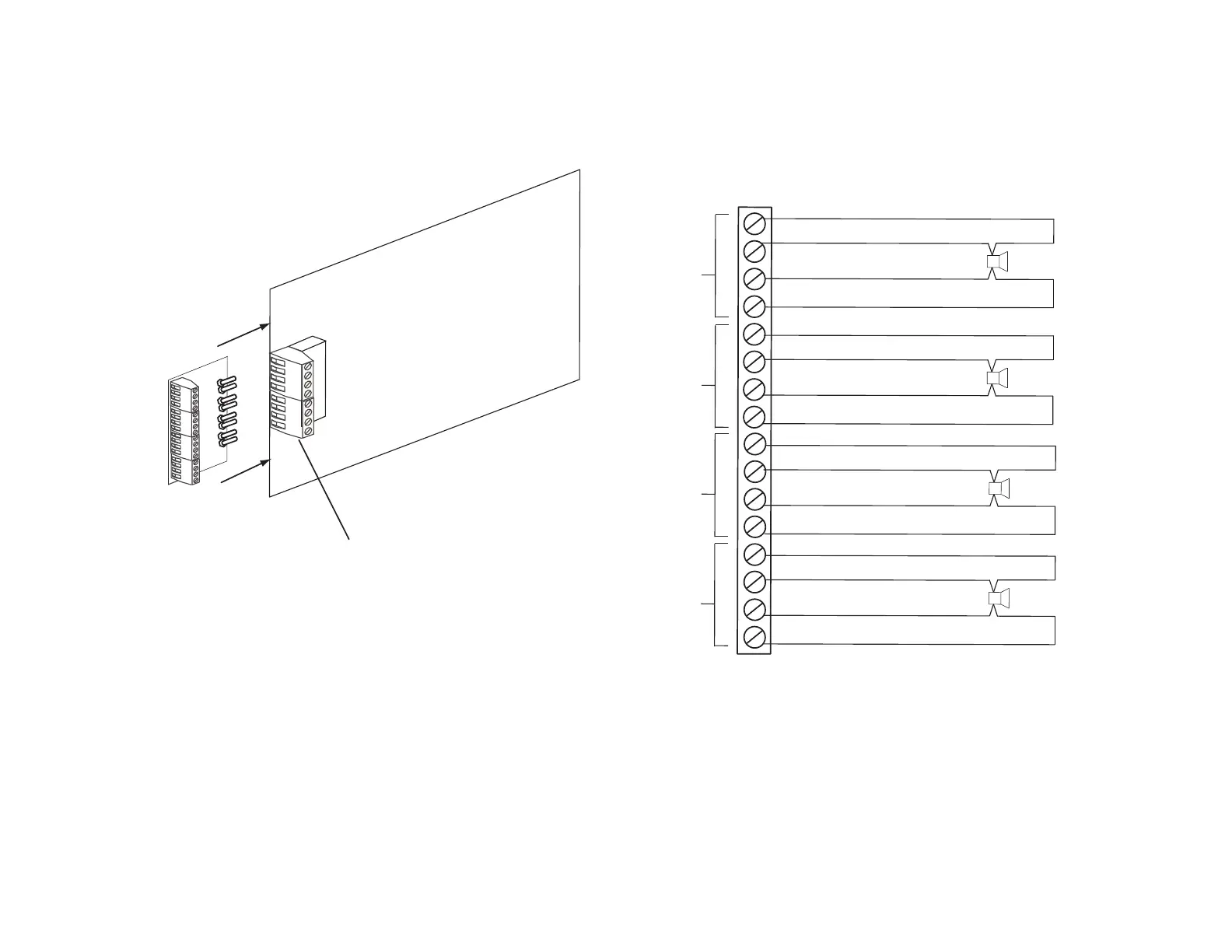

Figure 61: QAA-4CLA Class A Converter For QAA-5415-70/ 25 Amplifier
O4 +
O4 +
R4 +
R4 -
O4 -
O3 +
R3 +
R3 -
O3 -
O2 +
R2 +
R2 -
O2 -
O1 +
R1 +
R1 -
O1 -
O1 -
J1
J2
J3
J4
SPEAKER
SPEAKER
SPEAKER
SPEAKER
QAA-5415-70 and QAA-5415-25 AMPLIFIER
QAA-4CLA
REMOVABLE TERMINAL BLOCK
QAA-4CLA
TERMINAL BLOCK
TO WIRE QAA-4CLA, REMOVE TERMINAL FROM
QAA-5415-70 or QAA-5415-25 AMPLIFIER, CONNECT
TO QAA-4CLA AND SCREW DOWN. WIRE THE FOUR
CLASS A CIRCUITS TO THE 16 TERMINALS AS
SHOWN IN DIAGRAM AT RIGHT.
ALL CIRCUITS ARE POWER LIMITED.
15 WATTS MAX. PER ZONE.
NOTES:
1.
2.
3.
