24

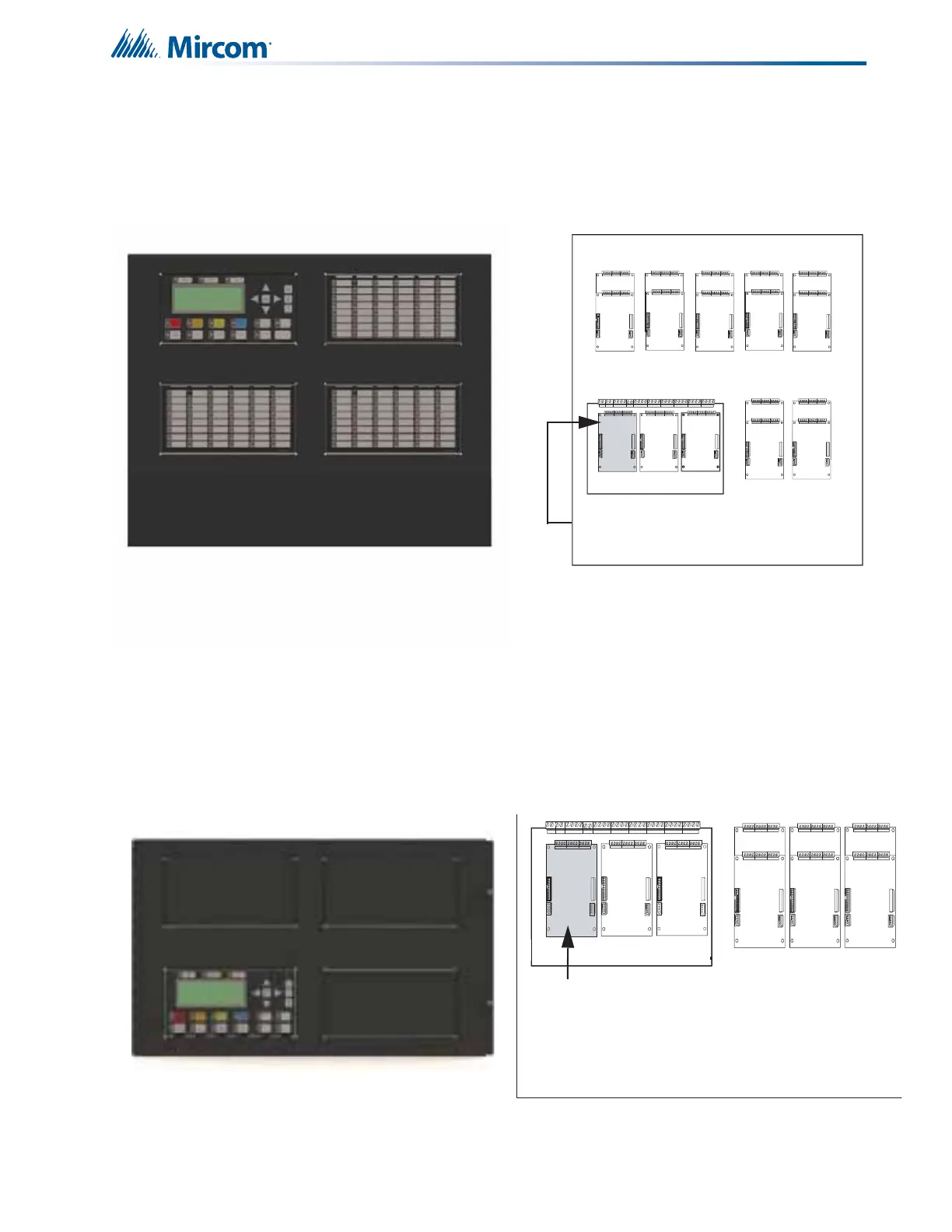

4.3 FX-4017-12N Mid-size Main Chassis
Mounts in the BBX-1072ARDS Enclosure, and supports three display modules and 17 adder
modules.
4.4 FX-4009-12N Large Main Chassis
Mounts and occupies four display positions in BB-5008 or BB-5014 Enclosures, and supports
two display modules and nine adder modules. This large chassis size can hold the integrated
audio and/or telephone modules.
Interior View Inside Backbox View
Interior View Inside Backbox View
1
23
45
67
89101112
1314151617
FX-2000 Main Board
Slot 3 is reserved for PR-300 or UDACT-
300A. If not required, this slot can be used
to mount any of the adder modules.
The recommended mounting position is 2 for
the FNC-2000. The FOM-2000-UM board, if
used, is mounted over the FNC-2000 board.
4
231
56
789
FX-2000 Main Board
Slot 3 is reserved for PR-300 or UDACT-300A. If not
required, this slot can be used to mount any of the
adder modules. The recommended mounting position
is 2 for the FNC-2000. The FOM-2000-UM board, if
used, is mounted over the FNC-2000 board. Positions
4 to 9 are replaced with the audio and telephone
boards if used.
To Next Page
