Mircom FleXNet FX-4000 User Manual

25

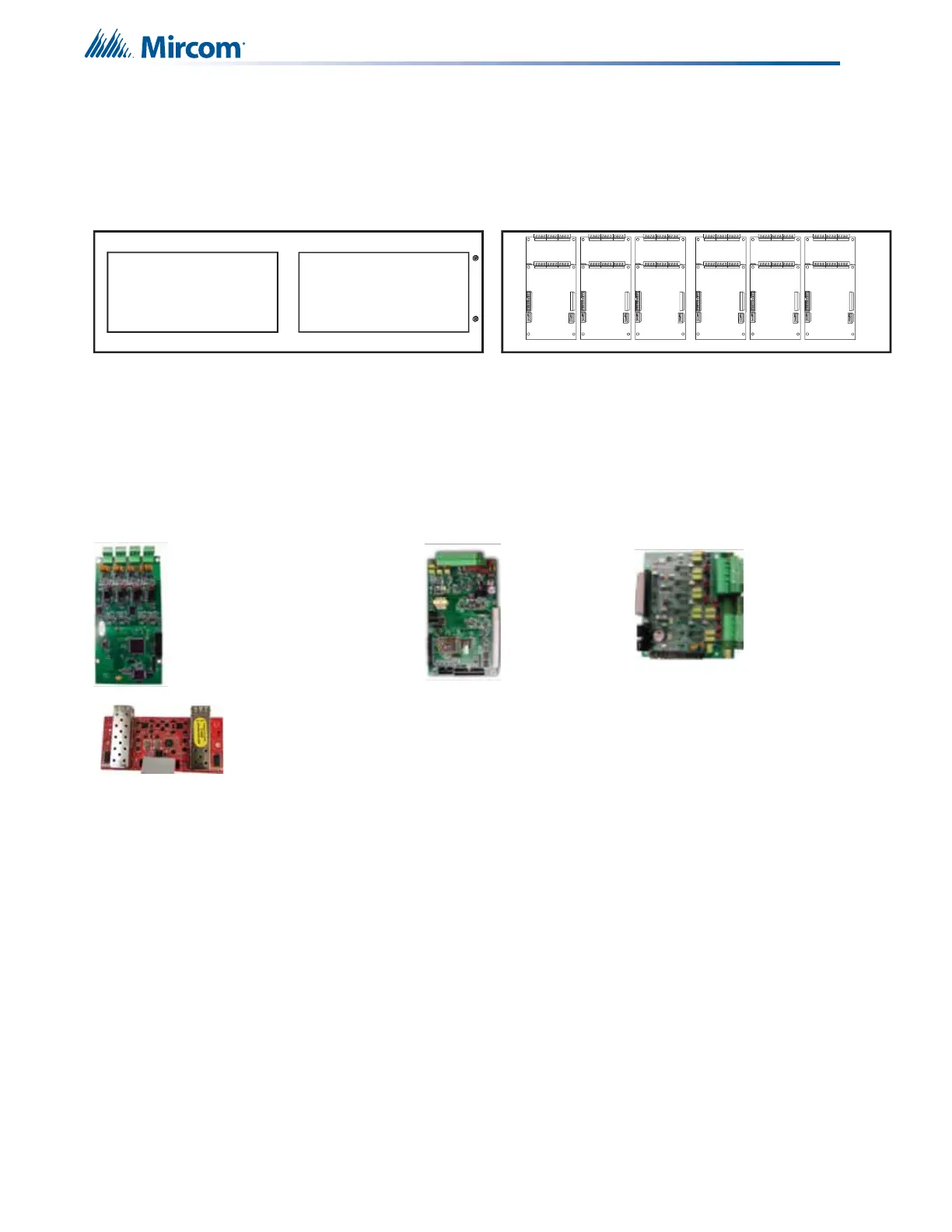

4.5 ECX-0012 Expander Chassis for FX-4009-12N
Mounts and occupies two display positions in BB-5008 or BB-5014 Enclosures, and supports
two display and 12 adder modules.
4.6 Network Controller Modules
The FNC-2000 Fire Network Controller module is mounted in position 2 over the FX-4000N
main board. The TNC-5000 Telephone Network Controller module is mounted over the ANC-
4000 Audio Network Controller module and both are mounted on a metal plate and that plate
is mounted in a BB-5008 or BB-5014 backbox in positions marked 4 to 9 inclusive, refer to
previous drawing of large chassis.
Interior View Inside Backbox View
FNC-2000
Fire Network Controller Module
FOM-2000-UM
Fiber Optics Module
Mounts over the
FNC-2000 Fire Network
Controller Module
ANC-4000
Audio Network
Controller
Module
TNC-5000
Telephone
Network
Controller
Module
Cutout to mount
display module
Cutout to mount
display module
1
2
34
56
789101112
