4.6.1 Adder Modules
Each adder module occupies one module slot and mounts inside the following chassis:
• FX-4003-12N Compact Main Chassis
• FX-4003-12NXT Mid-size Main Chassis
• FX-4017-12N Mid-size Main Chassis
• FX-4009-12N Large Main Chassis and ECX-0012 Expander Chassis for FX-4009-12N

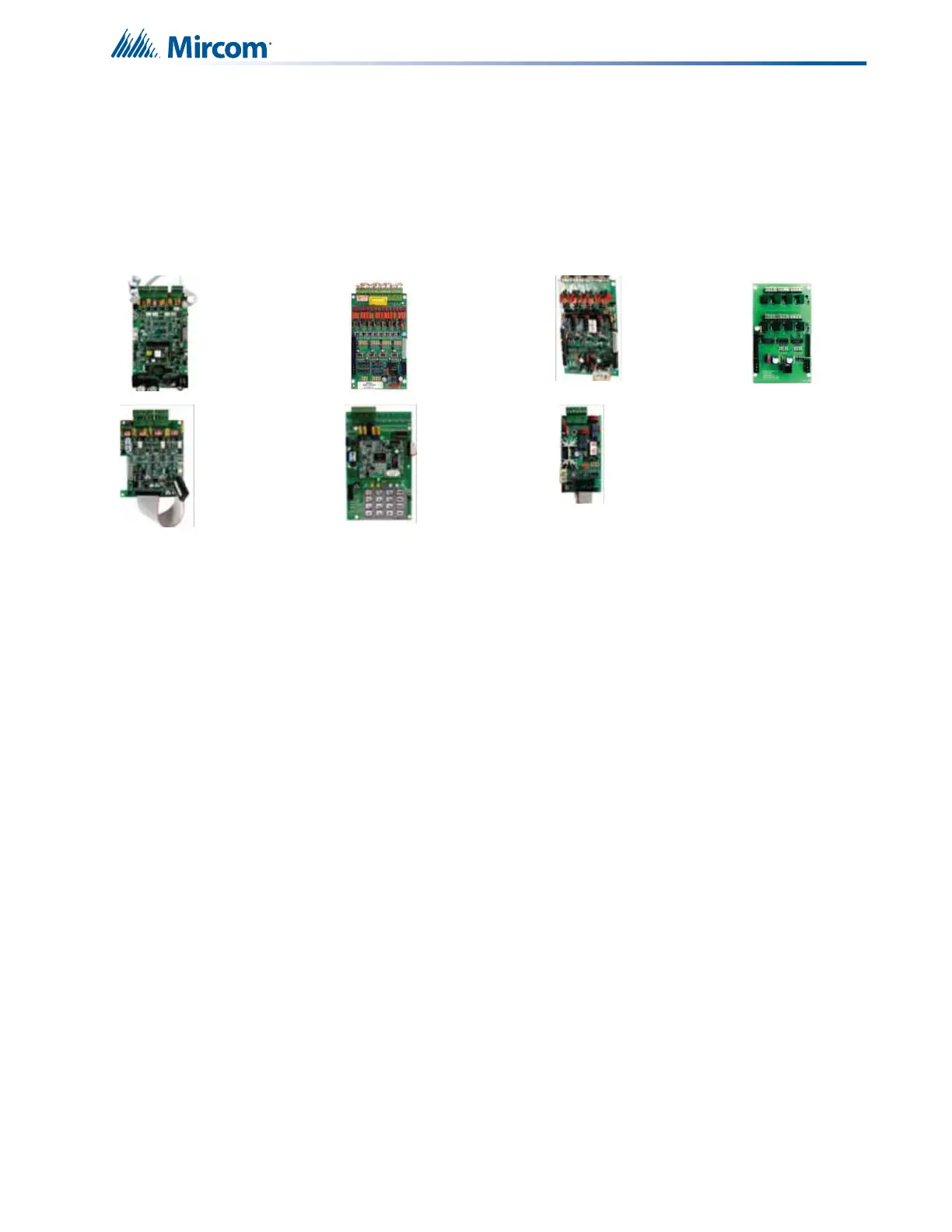

ALCN-960MISO
or ALCN-
4792MISO
Quad Intelligent
Analog Loop
Adder Module.
DM-1008A
Eight Initiating
Circuit
Module
SGM-1004A
Four NAC
circuit
Module
RM-
1008A
Eight
Relay
Circuit
Module
ALCN-960D or
ALCN-792D
Daughter Board
Analog 2 Loop
Adder Module.
Mounts over
ALCN-960MISO
or ALCN-4792MISO
UDACT-300A
Digital Alarm
Communicato
r Module
PR-300
Polarity
Reversal/ City
Tie Module
