27

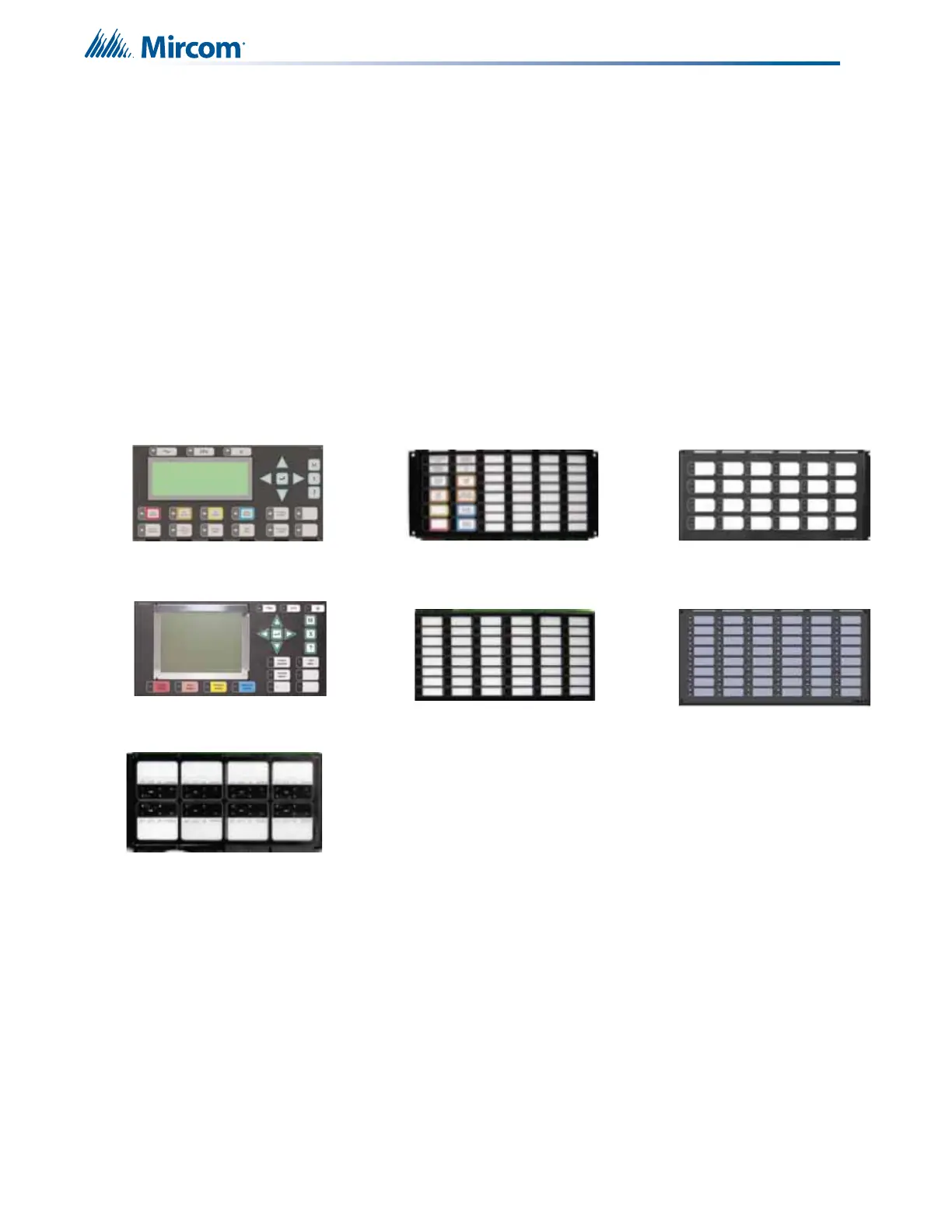

4.6.2 Display Modules
Each display module occupies one display position and mounts to the display cutouts on the
following chassis:
• FX-4003-12N Compact Main Chassis
• FX-4003-12NXT Mid-size Main Chassis
• FX-4017-12N Mid-size Main Chassis
• FX-4009-12N Large Main Chassis
• ECX-0012 Expander Chassis for FX-4009-12N
These modules can also be mounted in the standard BB-5000 Series enclosures which have
cutouts (with brackets), and the BBX-1000 Series enclosures (requires RAXN-4000LCD as a
driver) “Frame” is a measure of display capacity, used in the programming of the system.
DSPL-420DS
Narrow Display Control(3 Frames)
RAM-1032TZDS
Programmable Zone LED
Annunciator Module (3 Frames)
IPS-2424DS
Programmable Input
Switches Module (2 Frames)
DSPL-2440
Graphic Display Control(3 Frames)
RAX-1048TZDS
Programmable Zone/Trouble LED
Annunciator Module (3 Frames)
IPS-4848DS
Programmable Input
Switches Module (2 Frames)
FDX-008W(KI)
Fan Damper Module (1 Frame)
