29
TO CONFIGURE THE FIRE ALARM PANEL USE THE RS-485 CONNECTOR P4 OF THE
LAST ADDER LOOP CONTROLLER MODULE INSTALLED OR IF NOT PRESENT, P3 ON
THE FleX-Net™ MAIN FIRE ALARM MODULE.

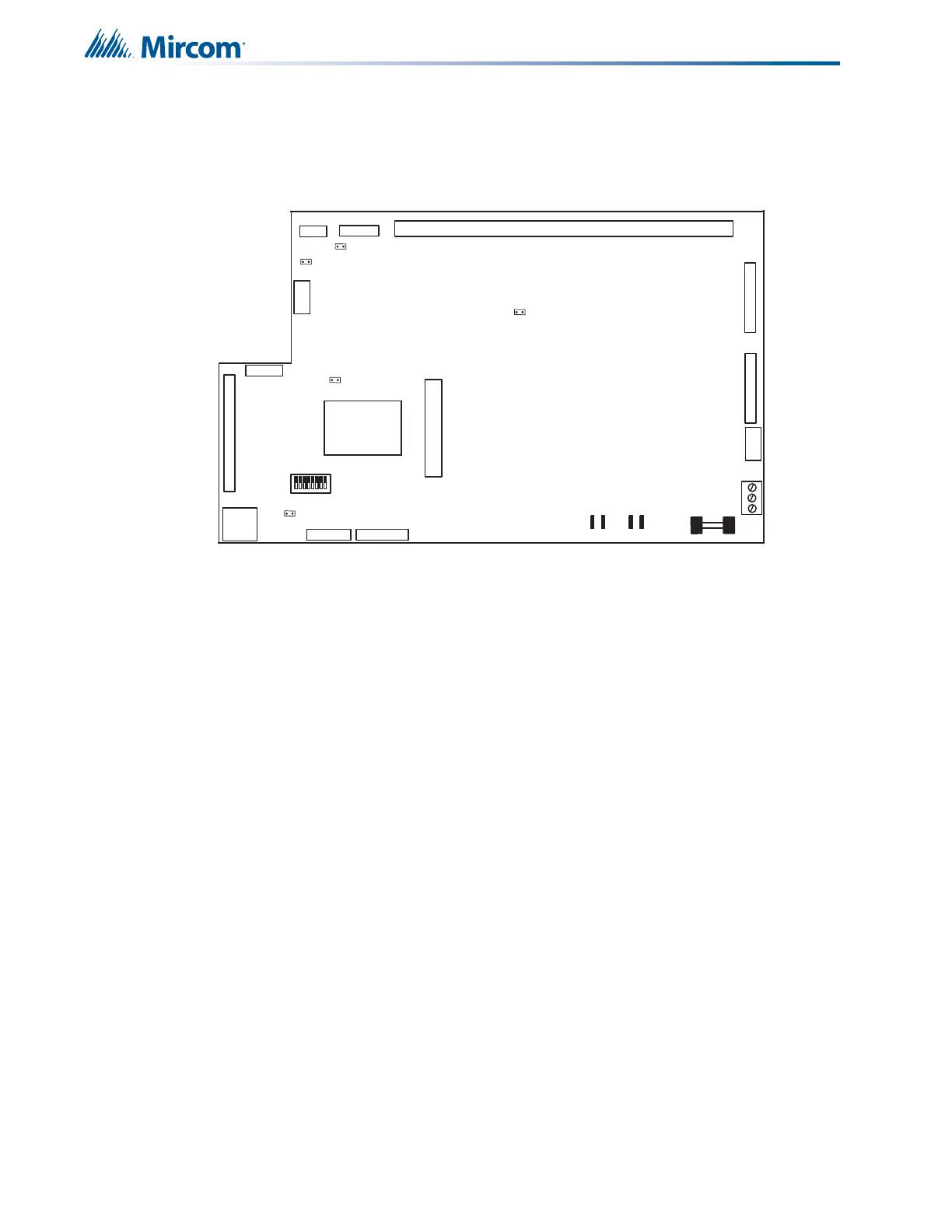

Figure 8 Main Fire Alarm Module (MD-871A “N” Version Main Chassis)
SW2 DIP Switch Node Address Setting on Main Fire Alarm Module
Refer to Appendix C for Node Address Setting. Available addresses are 1 to 63. DIP Switch
SW2-1 is the least significant digit.
F1
MAIN FIRE ALARM BOARD
FIELD WIRING TERMINALS
P3
P2
P1
P16
P10 P11
P15
P4
J1
P9
P7
P5
P6
P8
+ BR - +BAT -
NAC PWR
P14
P19
JW1
JW4
JW5
JW6
JW2
SW2
1
8
ON
