5.2 DSPL-420DS Main Display Module
The DSPL-420DS mounts into backboxes BBX-1072ARDS, BB-5008(R), BB-5014(R) and
BBX-FXMNS.

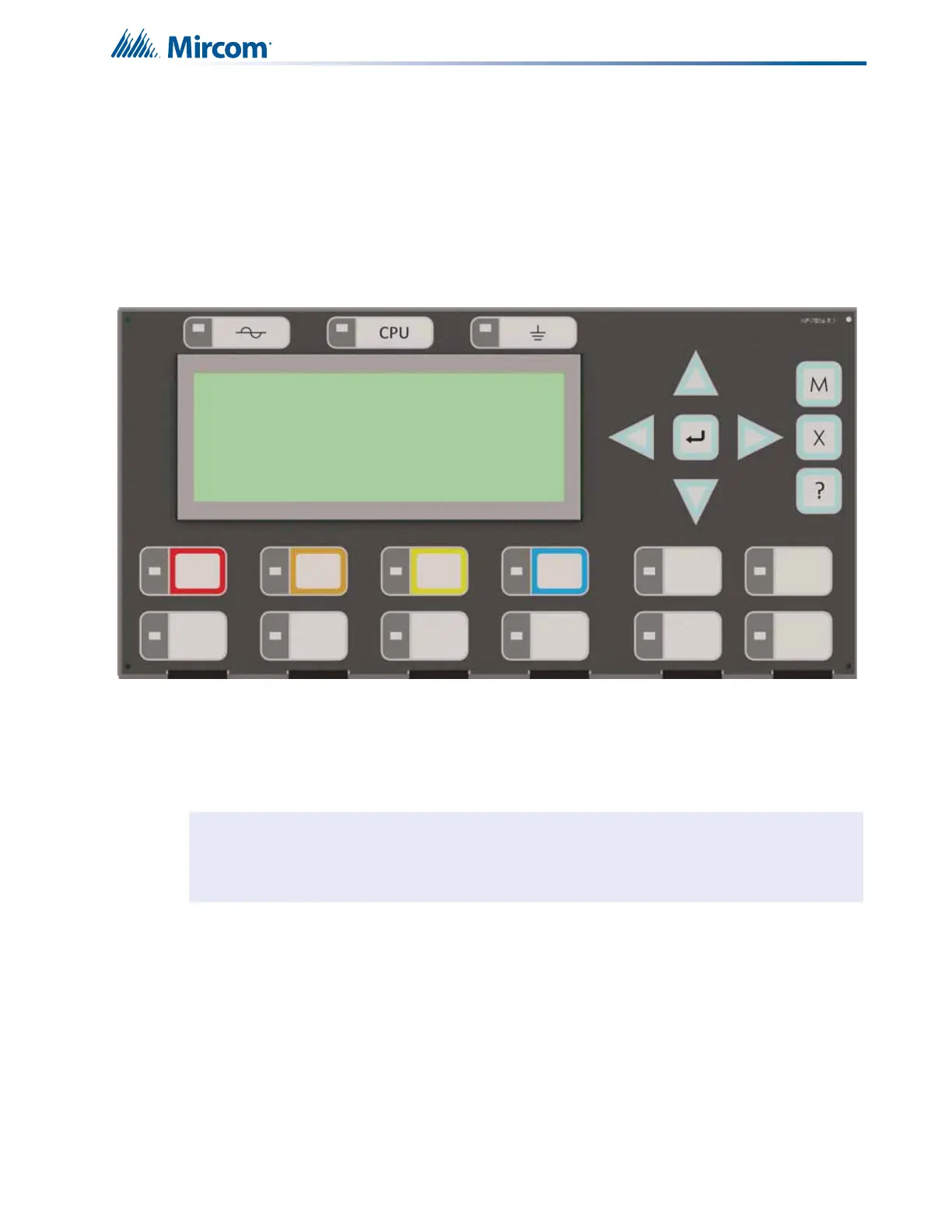

Figure 9 DSPL-420DS Main Display Module
P1: Cable connects to P14 of the FX-4000N main fire alarm board (Figure 8).
P2: Connection to P1 of any adder display module if used.
Note: The main display module comes with slide-in paper labels including both English and
French slide-ins, and laser printer-compatible blanks for zone labelling.
GENERAL
ALARM
BLDG
QUEUE
TBL
QUEUE
SUP
QUEUE
ALM
QUEUE
GENERAL
ALARM
CANCEL
FIRE
DRILL
SYSTEM
RESET
LAMP
TEST
SIGNAL
SILENCE
