5.3 DSPL-2440 Graphical Main Display Module
The DSPL-2440 is a separate item. It can be mounted into backboxes BBX-1072ARDS, BB-
5008(R), BB-5014(R) and BBX-FXMNS.

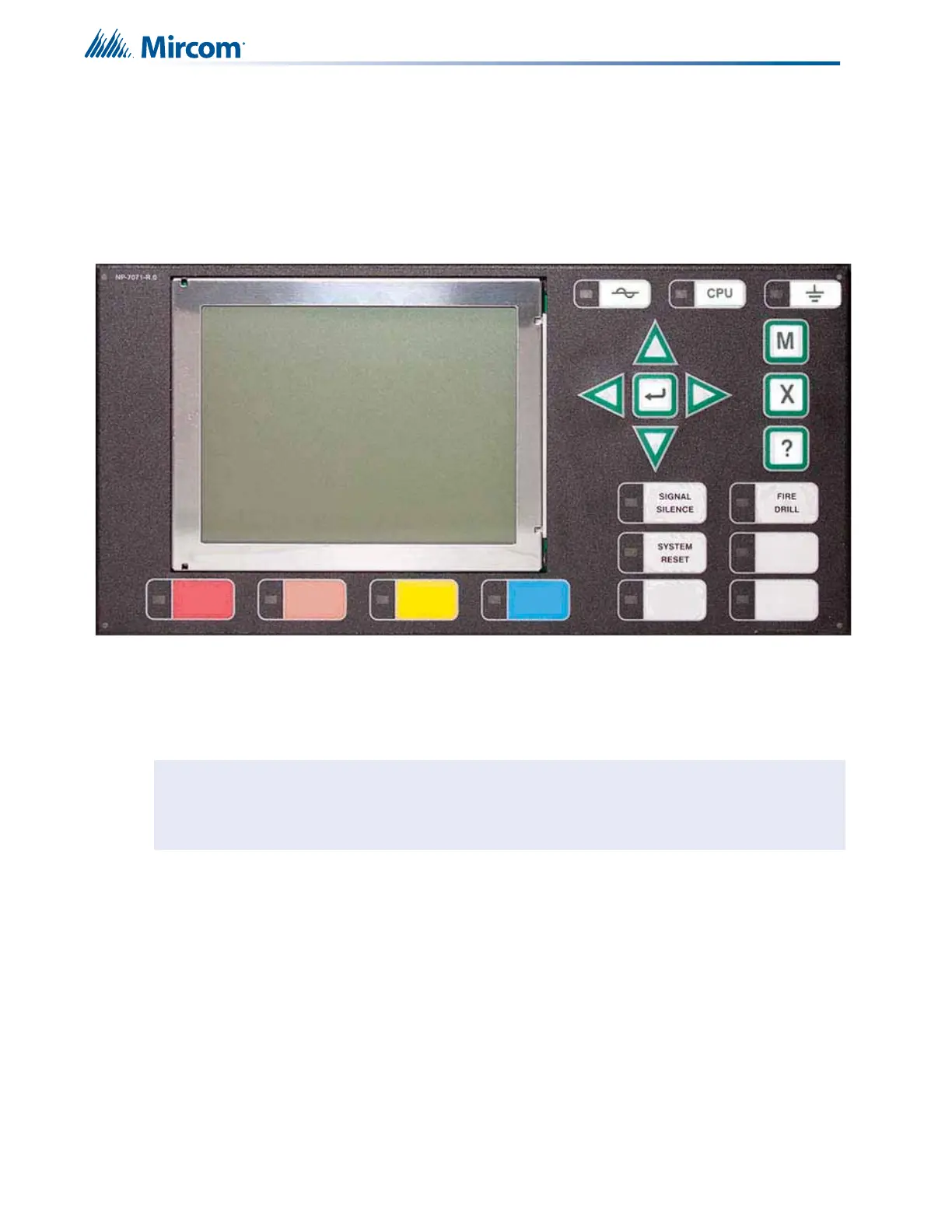

Figure 10 DSPL-2440 Graphical Main Display Module
P1: Cable connects to P14 of the FX-4000N main fire alarm board (Figure 8).
P2: Connection to P1 of any adder display module if used.
Note: The main display module comes with slide-in paper labels including both English and
French slide-ins, and laser printer-compatible blanks for zone labelling.
BLDG
QUEUE
TROUBLE
QUEUE
SUPV
QUEUE
TROUBLE
QUEUE
