34
Table 3 RAX-1048TZDS Zone Display Module Cable Function

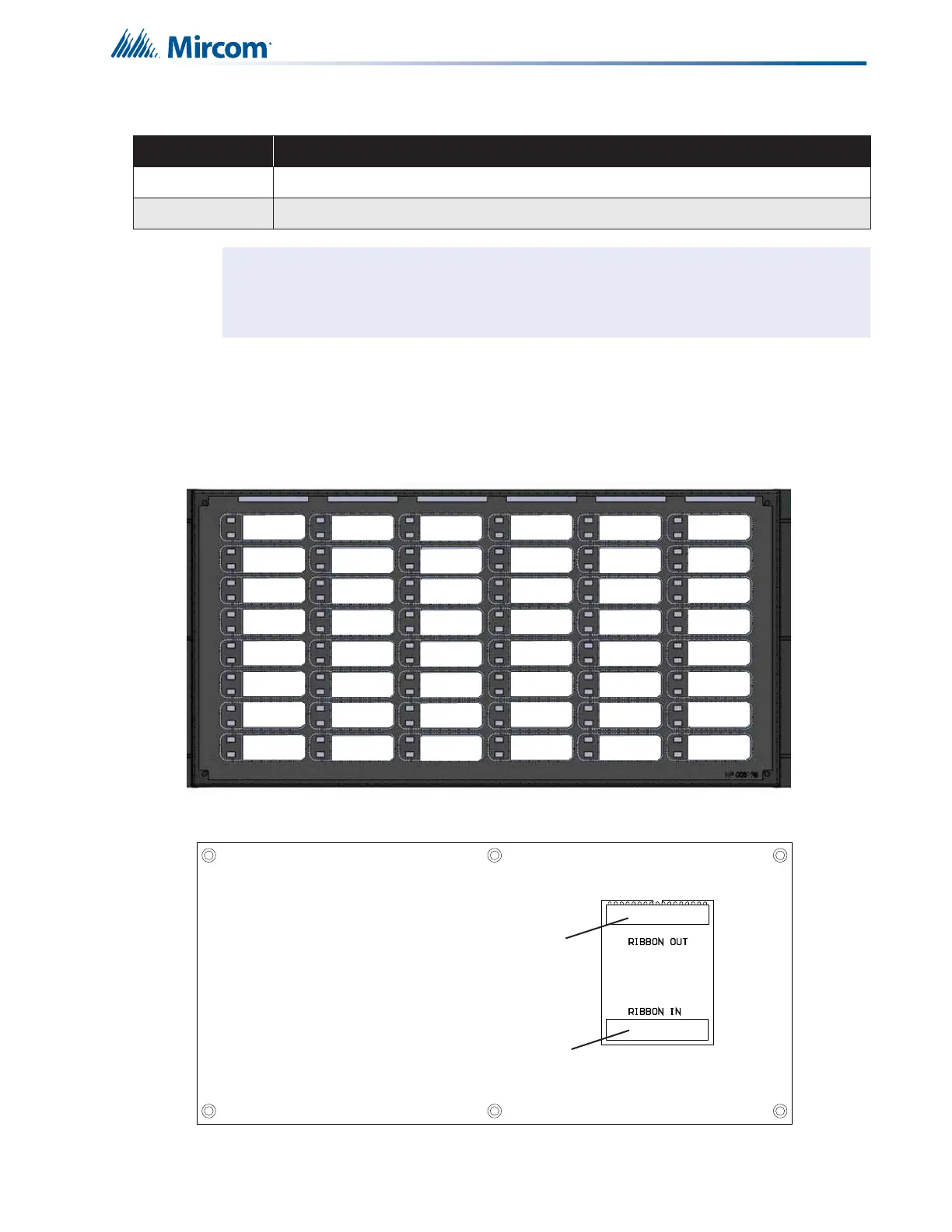

5.7 IPS-4848DS Programmable Input Switches Module
The IPS-4848DS Programmable Input Switches Module provides 48 programmable switches,
48 bi-coloured (red/amber) LEDs for fire alarm zone annunciation and 48 amber trouble LEDs.
Figure 14 IPS-4848DS Programmable Input Switches Module
Figure 15 IPS-4848DS Cable Connection on the back side of board
Connector Function
P1 P1 Cable connects to P2 of previous display module.
P2 P2 Cable connects to P1 of next display module
Note: The zone display module comes with laser printer-compatible slide-in paper labels
for zone labelling.
P4
P1
Ribbon Cable connects
here on IPS-4848DS and
connects to the next
display module Ribbon IN
Ribbon Cable is permanently
attached here and connects to
previous Ribbon OUT connector
