Mircom FleXNet FX-4000 User Manual

39
5.10 Hardwire Detection Adder Module (DM-1008A)

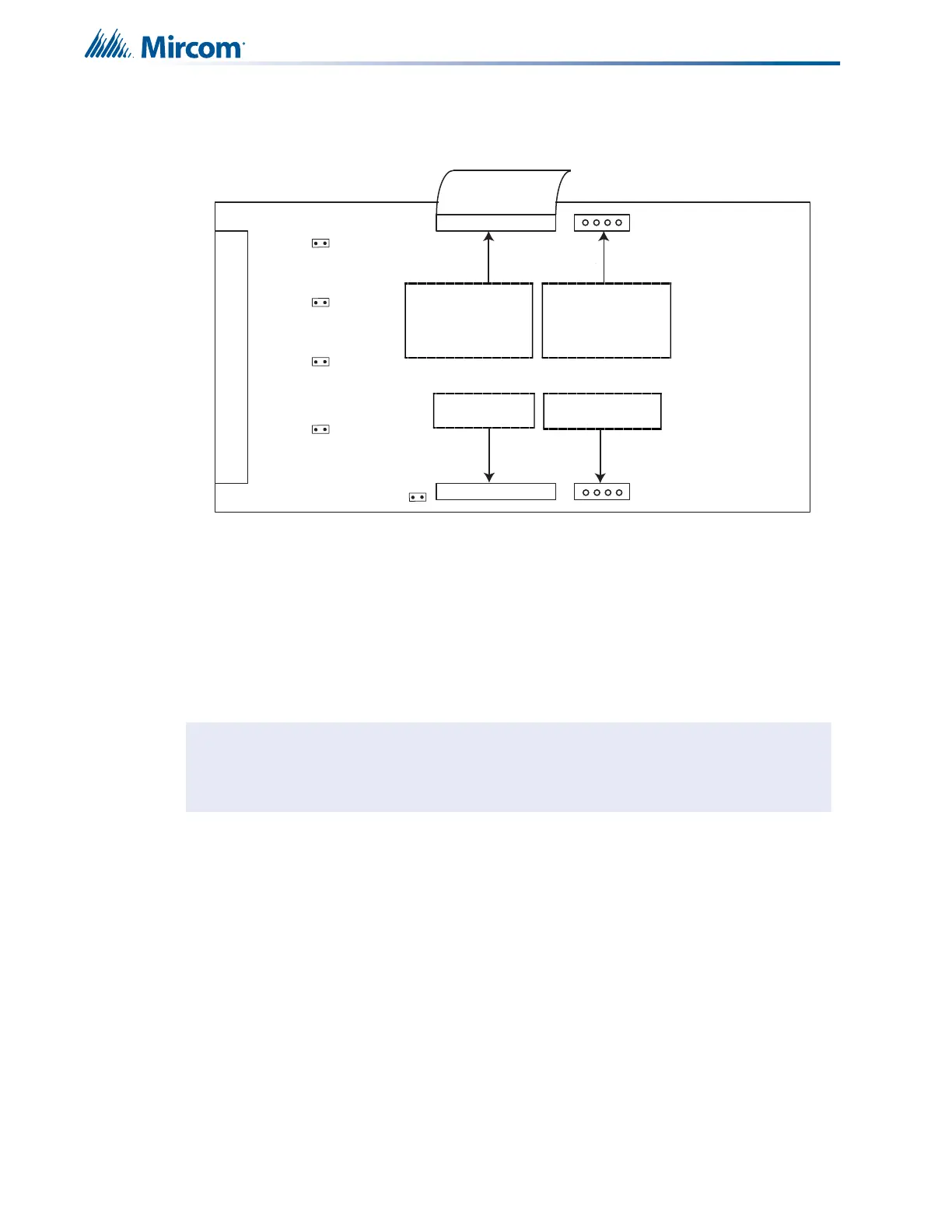

Figure 19 Hardwire Detection Adder Module (DM-1008A)
JW1: Install jumper for Class A operation of initiating circuits 1 and 2.
JW2: Install jumper for Class A operation of initiating circuits 3 and 4.
JW3: Install jumper for Class A operation of initiating circuits 5 and 6.
JW4: Install jumper for Class A operation of initiating circuits 7 and 8.
JW5: Remove continuity jumper if there are any more adder modules installed.
Note: For Class A operation the FX-4000N must be configured as Class A via the
configuration program.
P1
P3
P4
FI ELD WIRI NG TERM INALS
P2
JW 5
JW 4
JW 3
JW 2
JW 1
Data cable to P6 or P5 of
main fire alarm module or to
P13 or P12 of hardwire
loop controller module, or
previous adder module
Power connector to P8 of
main fire alarm module,
or to P2 of hardwire loop
controller module, or to
previous adder module
Data connector for
next adder module
Power connector for
next adder module
i
