58
6.3 FNC-2000 Fire Network Controller Module
The FNC-2000 Fire Network Controller modules are wired from terminals marked Line A,
positive and negative (see specific cable recommended in Figure 36) to the Line B terminals of
the next FNC-2000 module. Use of shielded cable is not recommended. Wire from Line B
terminals to Line A of the next FNC-2000 module. Start from the lobby panel and wire to all the
FNC-2000, wiring the last FNC-2000 back to Line B of the first FNC-2000 at the lobby panel
for Class X.

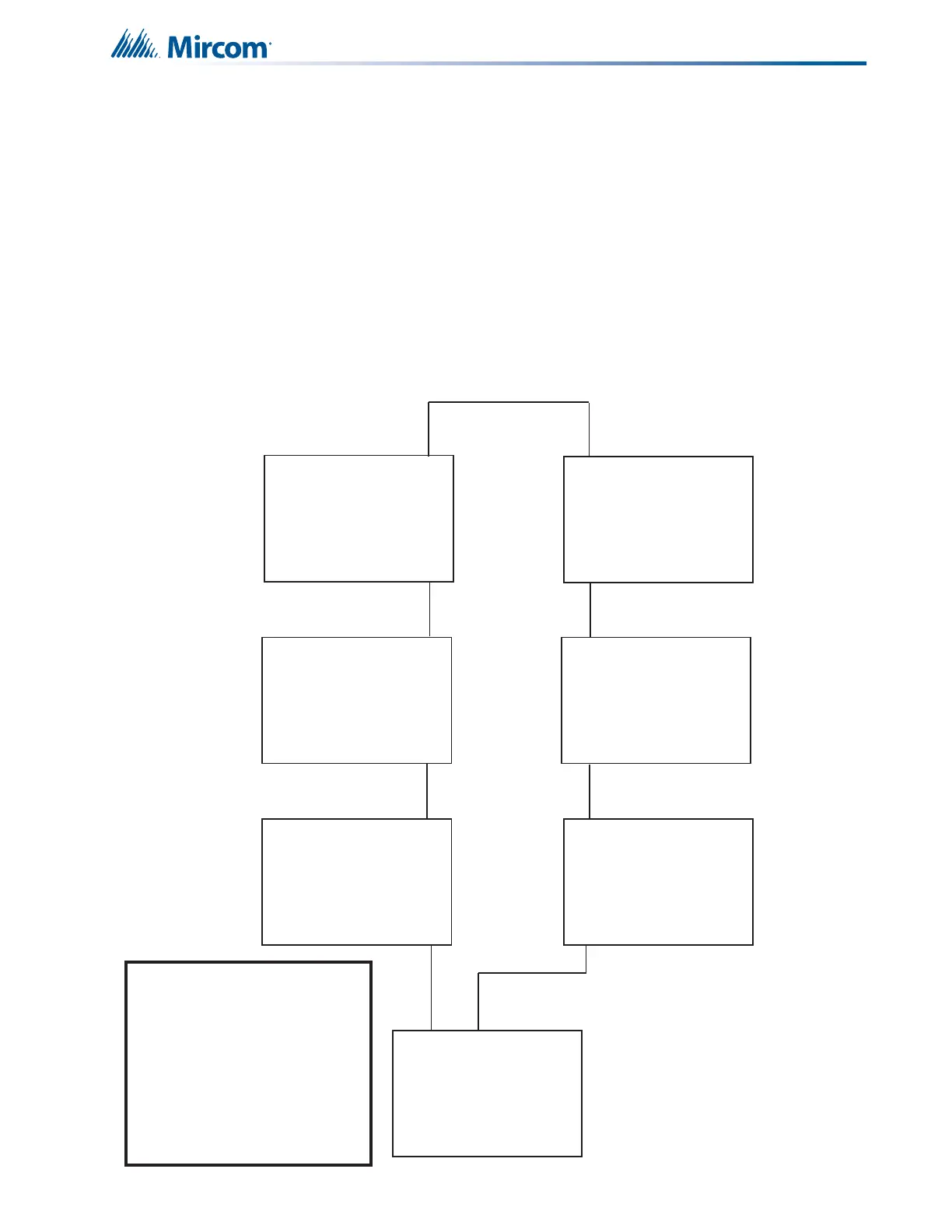

Figure 36 Class X Wiring for the FNC-2000 Module
Line B
Line A
Line A
Line A
Line A
Line A
Line A
Line A
Line B
Line B
Line B
Line B
Line B
Line B
FNC-2000
Lobby Panel
FNC-2000
FNC-2000
FNC-2000
FNC-2000
FNC-2000
FNC-2000
CLASS X WIRING
RECOMMENDED CABLE:
BELDEN 5320 UJ or 5320UM
Tyco Pyro CIC
Draka Lifeline
All above cables are 2x18AWG unshielded,
low capacitance
Network Wiring Specifications
Power-Limited and Supervised
Voltage: 9V Max
Current: 800mA
Frequency: 625K Hz
