59
6.4 FOM-2000-UM Fiber Optic Network Adder Module
The FOM-2000-UM Fiber Optic Network Adder Module is wired with fiber optic cable. It is
wired as shown in Figure 37 below.
Connect L1 to L2 and L2 to L1 as shown in the Class A wiring of Figure 37. Refer to LT-6907
document for more wiring and installation information.

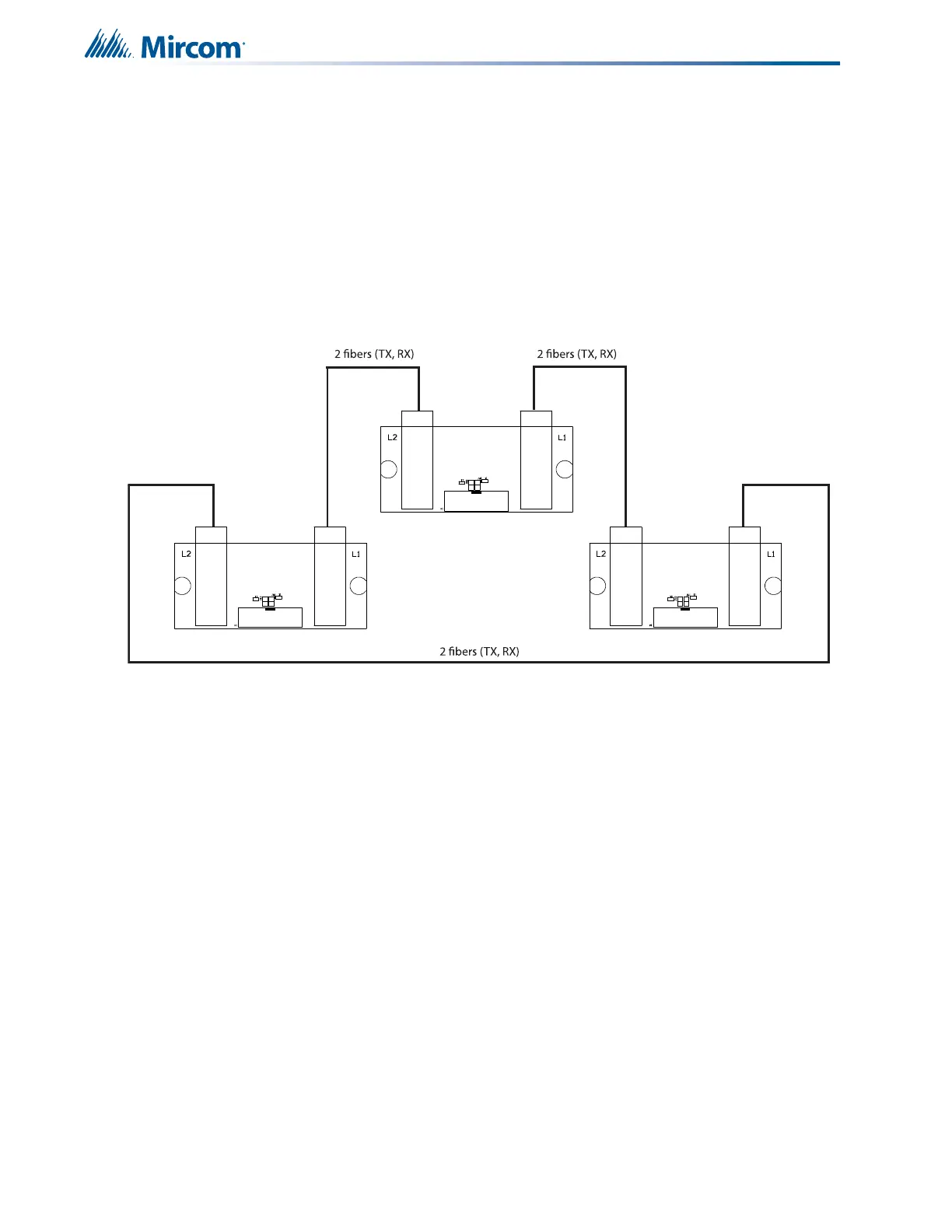

Figure 37 FOM-2000-UM Fiber Optic Network Adder Module Wiring
Node 1
Node 2 Node 3
B
A
B
A
B
A
CLASS A WIRING
