6. Wiring & Mounting

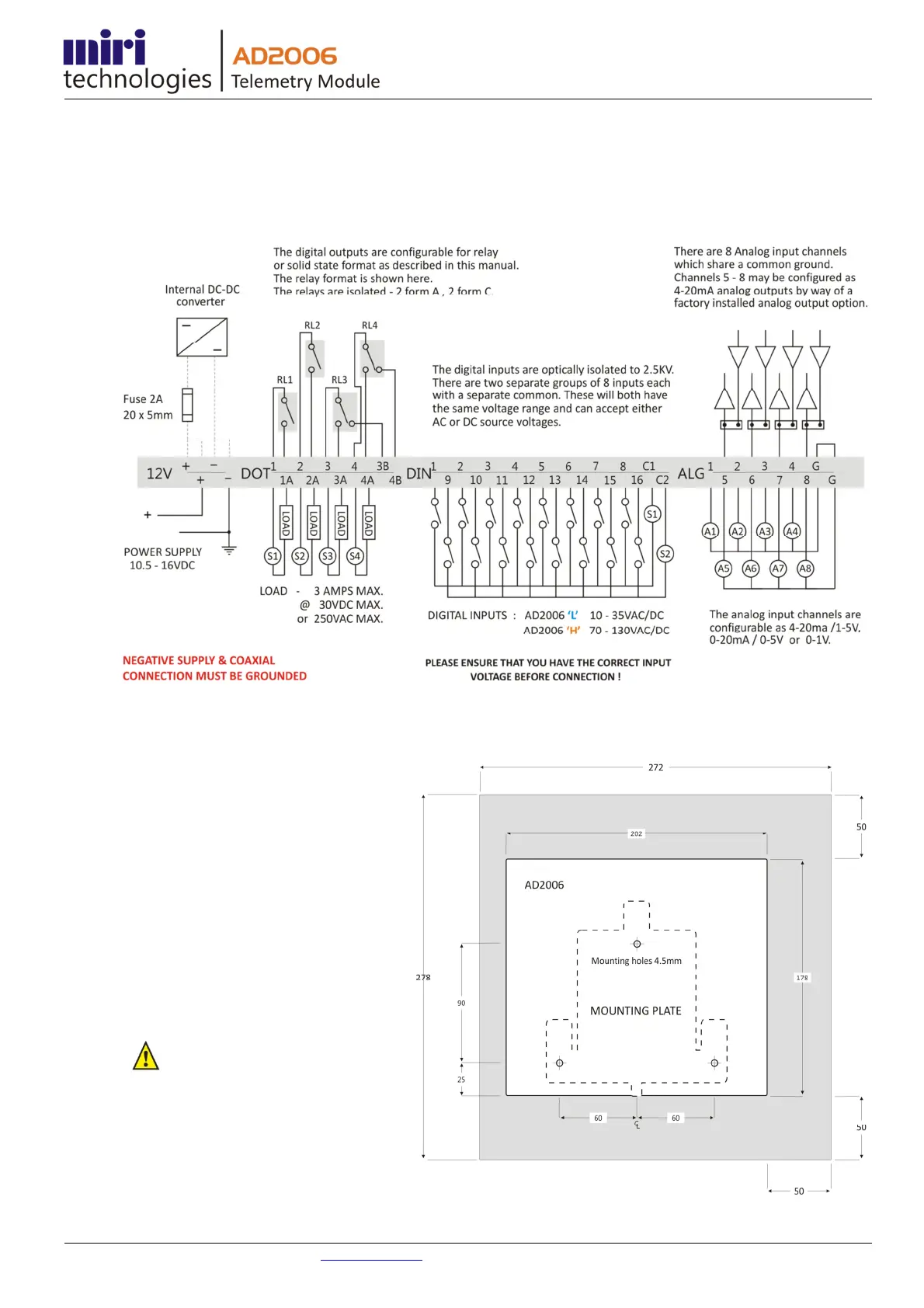

Wiring
Mounting
• The AD2006 module is installed by
means of the clip in stainless steel
mounting bracket supplied with
the unit.
• The module is removed by
depressing the small tongue at the
bottom of the mounting bracket
and sliding the unit upwards.
• The terminal blocks are removable
such that the I/O wiring need not
be disturbed if replacing a module
in the field.
Note: Please ensure when
mounting the telemetry module
that sufficient clearance is left for
wiring to and from the unit.
Recommended minimum
clearances are shown right.
