Electrical System
This section covers all standard 12 volt DC components on your MirroCraft
boat. The electrical system in your boat is a 12 volt DC ground. All
components must be grounded directly to the battery negative terminal or
to a grounding block that is connected to the negative battery terminal.
NOTICE:
Failure to properly ground your accessories could
seriously damage your aluminum hull through electrolysis.
Insulate all unused power leads when your boat is
in use to prevent sparking and electrolysis.

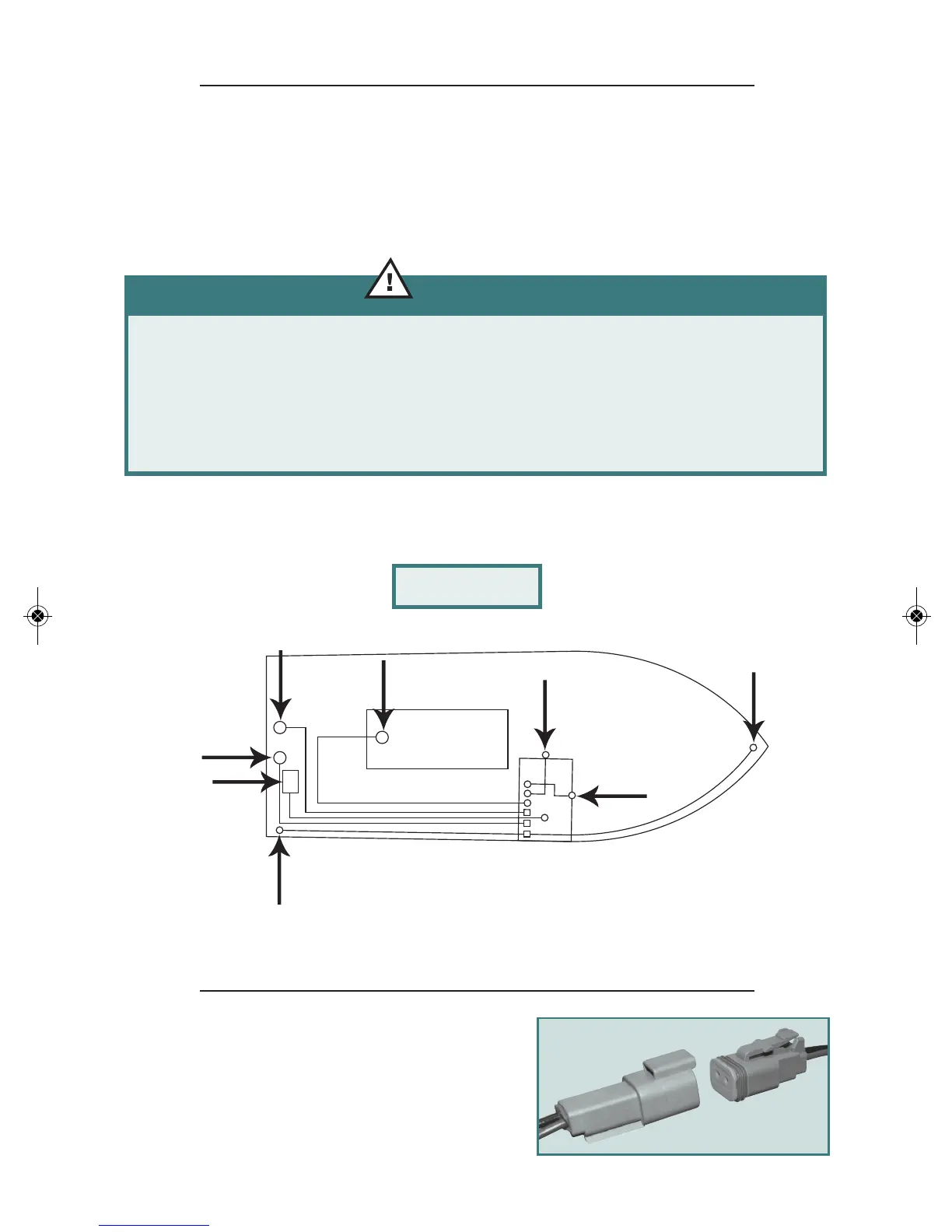

The diagram below (Figure E-1) shows the basic wiring of a MirroCraft boat.
The model you have may or may not be exactly the same.
Figure E-1
Deutsch Connectors
For your convenience some models have
Deutsch Connectors on the electrical
components. Please see your local Mirrocraft
dealer if these components need servicing.
