Output Relays
MyDro output relays have higher ratings than the Legacy RTUs (maximum AC
voltage is 120 volts, maximum DC is 30 volts, maximum current is 5 amps).
We discourage high voltage AC inside of the Mission enclosure for safety and
induced voltage reasons (see Figure 3).
Warning: The MyDro relay normally open (N/O) and normally closed (N/C)
terminals are opposite to that of Legacy units (highlighted in gure 3).

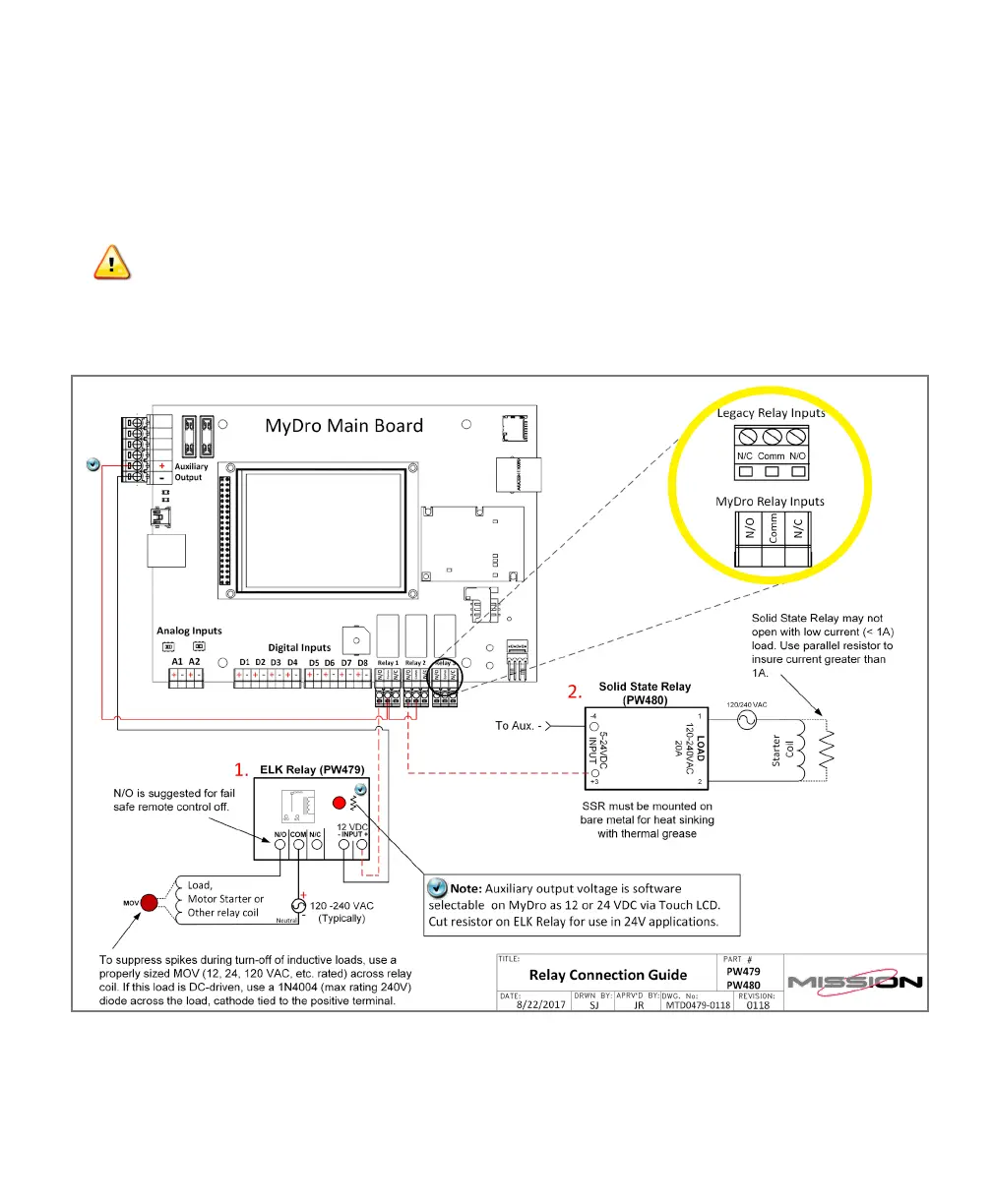

Figure 3:
Relay Connection Guide
