7Appendix
Spline interpolation Appendix-629
2) Selecting layers
Select layers to import from [Layer list] in [Layers] page.

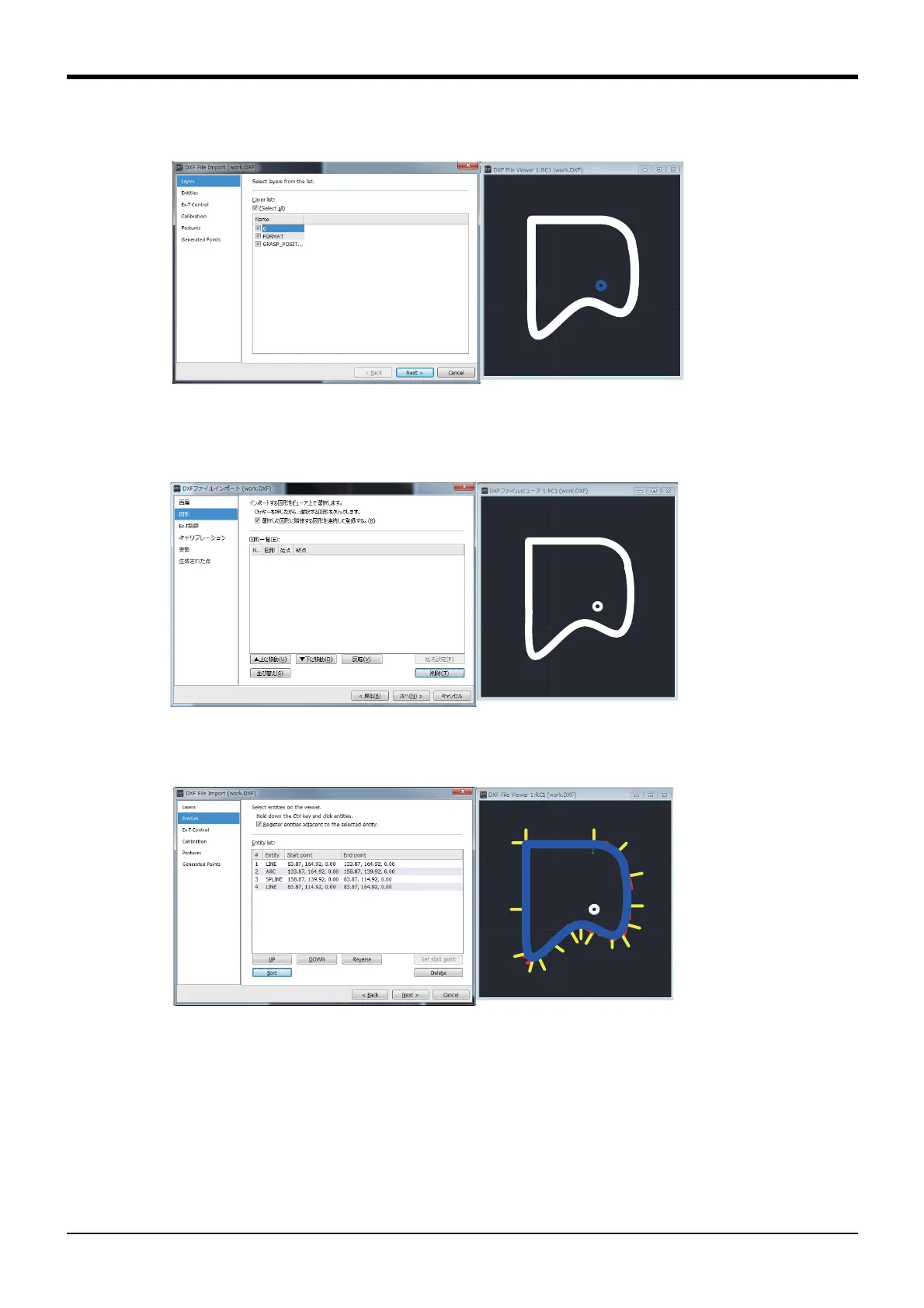

Fig.7-29:Layers selection screen
3) Selecting entities
Select entities to import from [Entities] page.
Fig.7-30:Entities selection screen
Hold down the Ctrl key and click entities to be imported by DXF file, they will be added to [Entity list]..
Fig.7-31:Selecting entities
