Spline interpolation Appendix-663

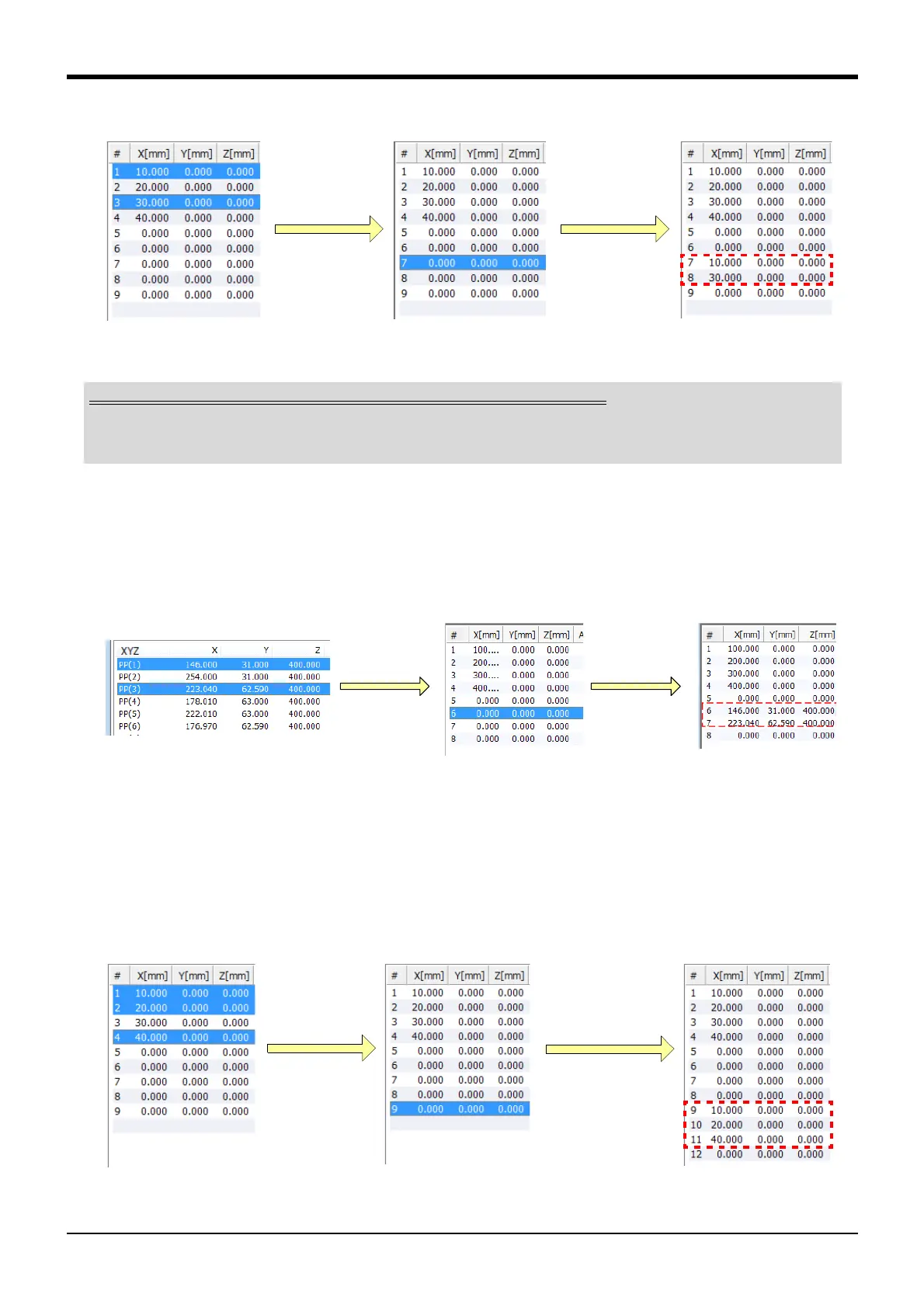

Fig.7-90:Copy & Paste
â– Copy & Paste (Position variable)
The designated position data is copied and pasted into path point data in the spline file.
Select the copy source position data in the position data in the controller, and click menu [Edit] → [Copy -
Position variable]. Next, select the path point data to where the copied data is to be copied to and select
menu [Edit] → [Paste - Position variable]. The position data saved with the [Copy - Position variable] opera-
tion will be copied in order into the path point data.
Fig.7-91:Copy & Paste (Position variable)
â– Insert copied path point
The details of the designated path point data are inserted into another line as new path point data.
Select the copy source path point data in the path point data list area, and click menu [Edit]
→ [Copy]. Next,
select the path point data to where the copied data is to be inserted and select menu [Edit]
→ [Insert copied
path point]. The path point data saved with the [Copy] operation will be inserted before the path point data
selected as the insert destination.
Fig.7-92:Insert copied path point
41
[Edit] → [Copy]
Designate copy source
[Edit]
→ [Paste]
Designate copy destination Execute copy
When there are not enough path point data items at copy destination
If the number of subsequent path point data items is low at the copy destination is low compared to the
number of path point data items designated as the cut source, the path point data with no copy destina-
tion will not be copied.
[Edit]→
[Copy ? Position variable]
[Edit]→
[Paste ? Position variable]
Designate copy source Designate copy destination Execute copy
Designate copy source
[Edit]→
[Copy - Position variable]
[Edit]→
[Paste - Position variable]
Designate copy destination Execute copy
Designate copy source
[Edit]
→ [Copy]
[Edit] →
[Insert copied path point]
Designate insert destination Execute insertion
