Installation of the inverter and enclosure design Installation and wiring
2 - 16
2.3.3 Inverter installation
Inverter placement
● Install the inverter on a strong surface securely with screws.
● Leave enough clearances and take cooling measures.
● Avoid places where the inverter is subjected to direct sunlight, high temperature and high
humidity.
● Install the inverter on a nonflammable wall surface.
● When encasing multiple inverters, install them in parallel as a cooling measure.

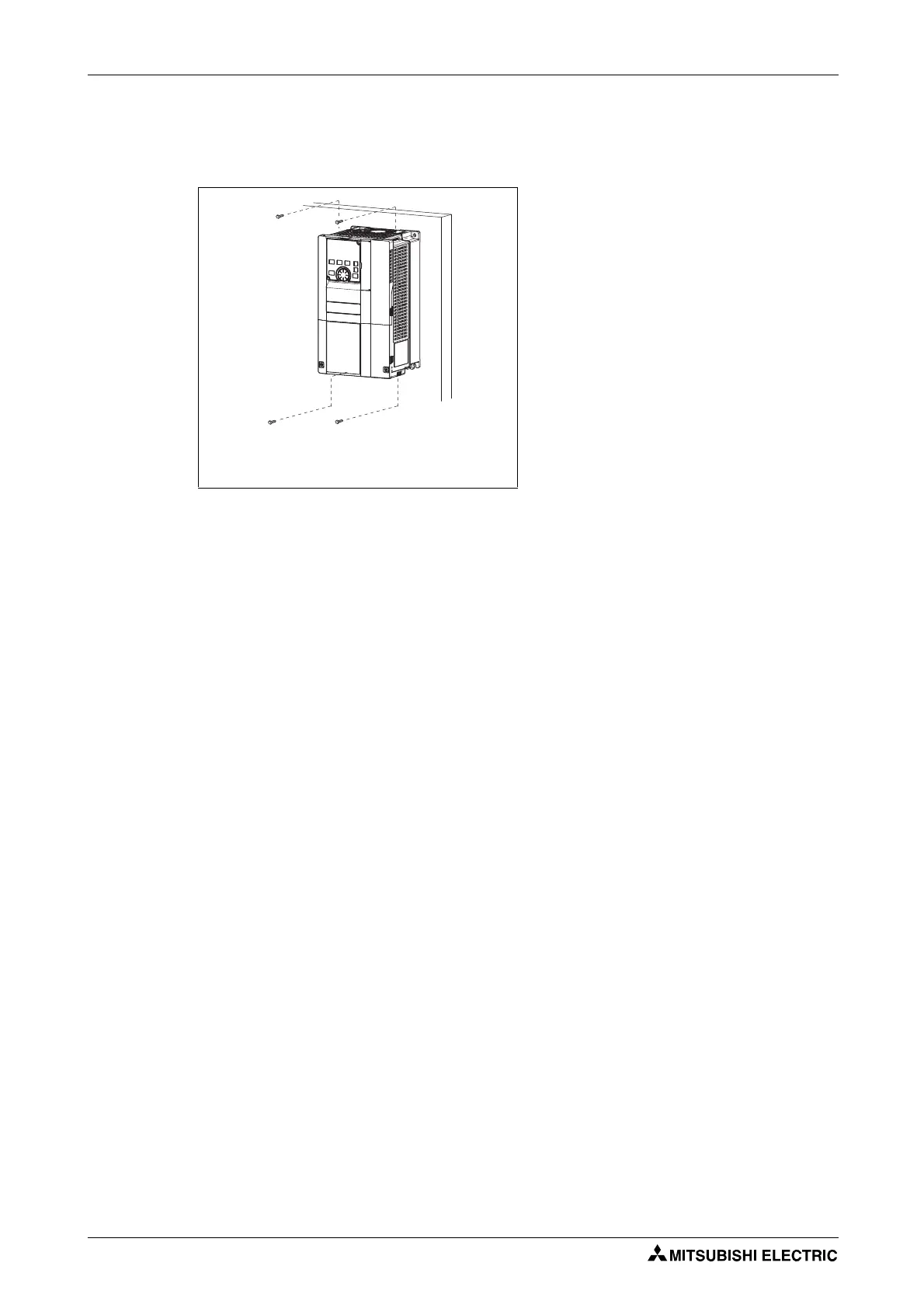

Fig. 2-11:
Installation on the panel
I002353E
Fix six positions for the FR-A840-04320(160K) or higher.
