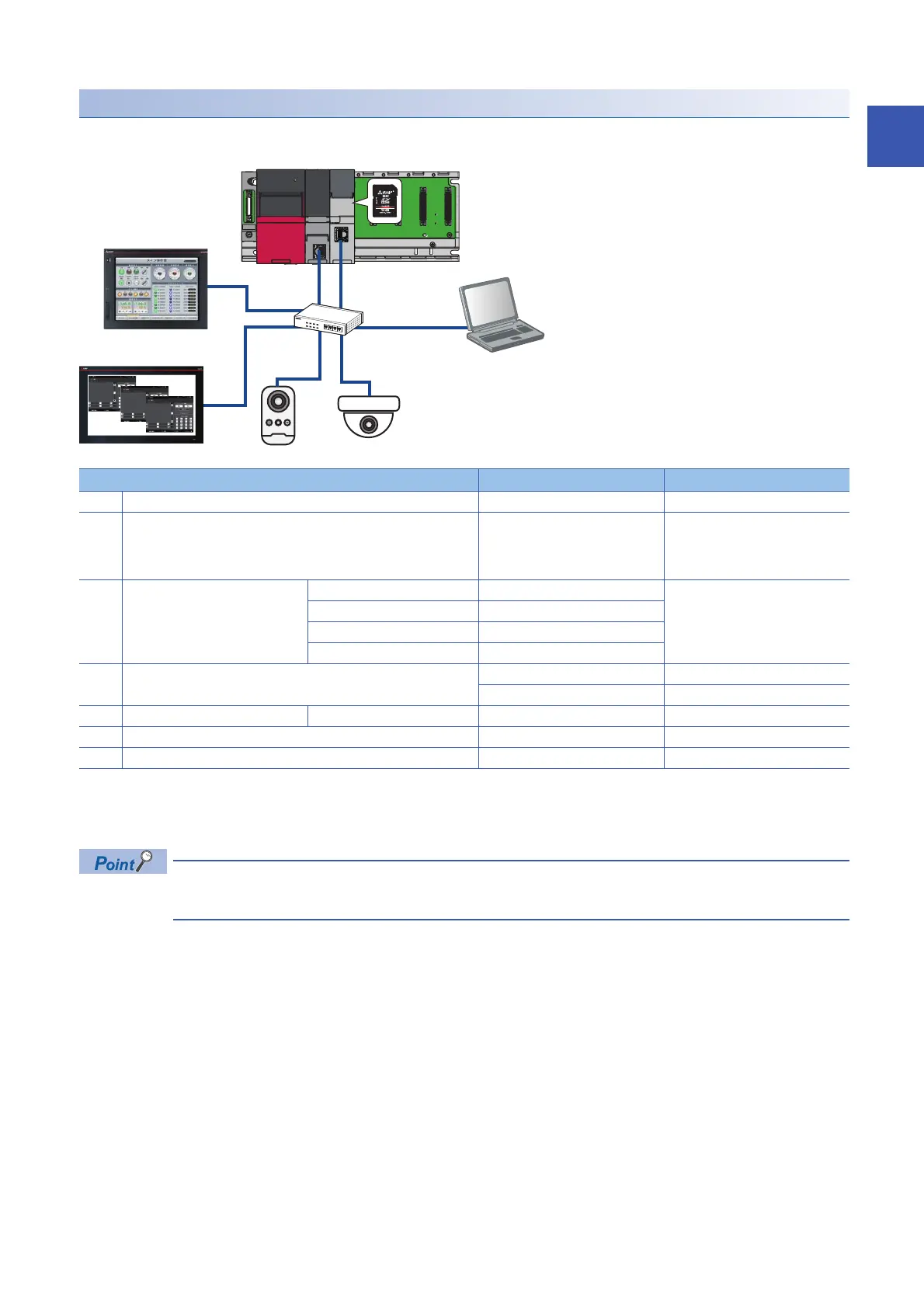

System configuration
In this document, the following system configuration is used as an example.
*1 The version 1.072A is used in this document.
*2 The version 1.115U is used in this document.
*3 The version 1.245F is used in this document.
*4 The version 1.009K is used in this document.
Refer to the following website to check whether the camera to be used supports ONVIF.
https://www.onvif.org/conformant-products/
Device/software Model IP address
(1) CPU module R16CPU 192.168.3.39 (default)
(2) Camera recorder module
(When setting the SD memory card as the save destination of the
recording file, an SD memory card must be inserted to the camera
recorder module.)
RD81RC96-CA 192.168.3.49
(3) Personal computer for setting GX Works3
*1
 192.168.3.100
GX LogViewer
*2

GT Designer3
*3

GX VideoViewer
*4

(4) ONVIF supported network camera M1065-L 192.168.3.1
M5054 192.168.3.2
(5) MELIPC MI3000 GT SoftGOT
*3
MI3321G-W 192.168.3.30
(6) GOT GT2710-VTBA 192.168.3.18 (default)
(7) PoE switching hub GS108PE 
(7)
(1)
(3)
(5) (4)
(6)
(2)
