6.10 Intelligent Function Module Switch Setting
6 - 31
(3) Switch settings
Set the switch details for each intelligent function module and interrupt module in the I/O assignment
tab of the PLC parameter dialog box.
1) Make I/O assignment for the target module.
2) Click the button.
3) Set the switch details for each module.
(4) Precautions
(a) Switch setting details of each module
For the switch setting details of each intelligent function module or interrupt module, refer to the
manual for the intelligent function module or interrupt module used.
(b) Enabling the setting
The switch settings of each intelligent function module or interrupt module will be enabled when:
• the CPU module is powered off and then on, or
• the CPU module is reset.

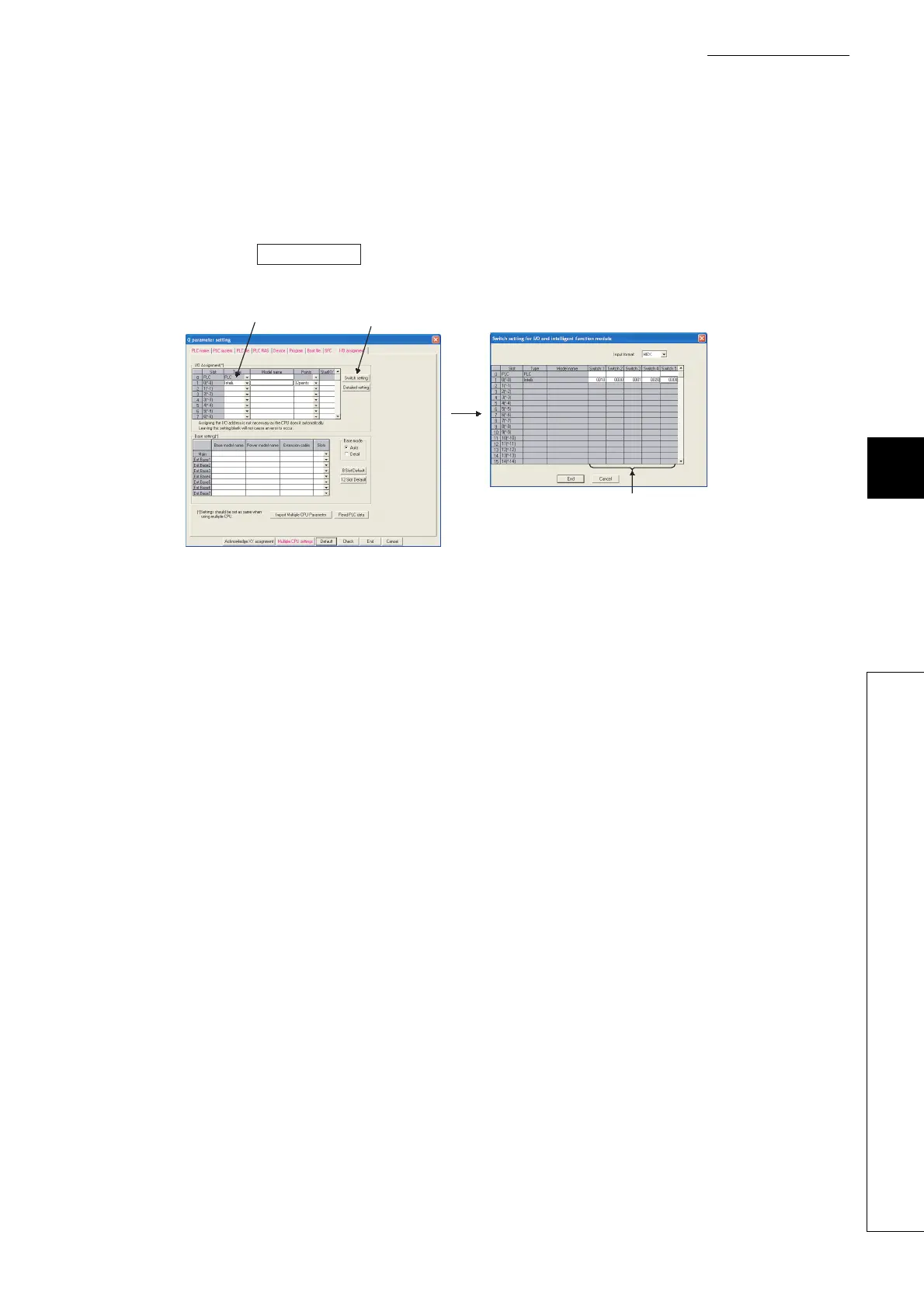

Figure 6.26 Switch settings
Switch setting
1) Make I/O assignment.
2) Click the Switch setting button.
Set the switch details of each intelligent
function module and interrupt module.
3)
