28
–
'14 • KX-SM-221
(iv) When the control comand from remote control is not accepted (Under the condition of the system all stop status by
external input), “Center” is dispalyed. See Item (v) mentioned below.

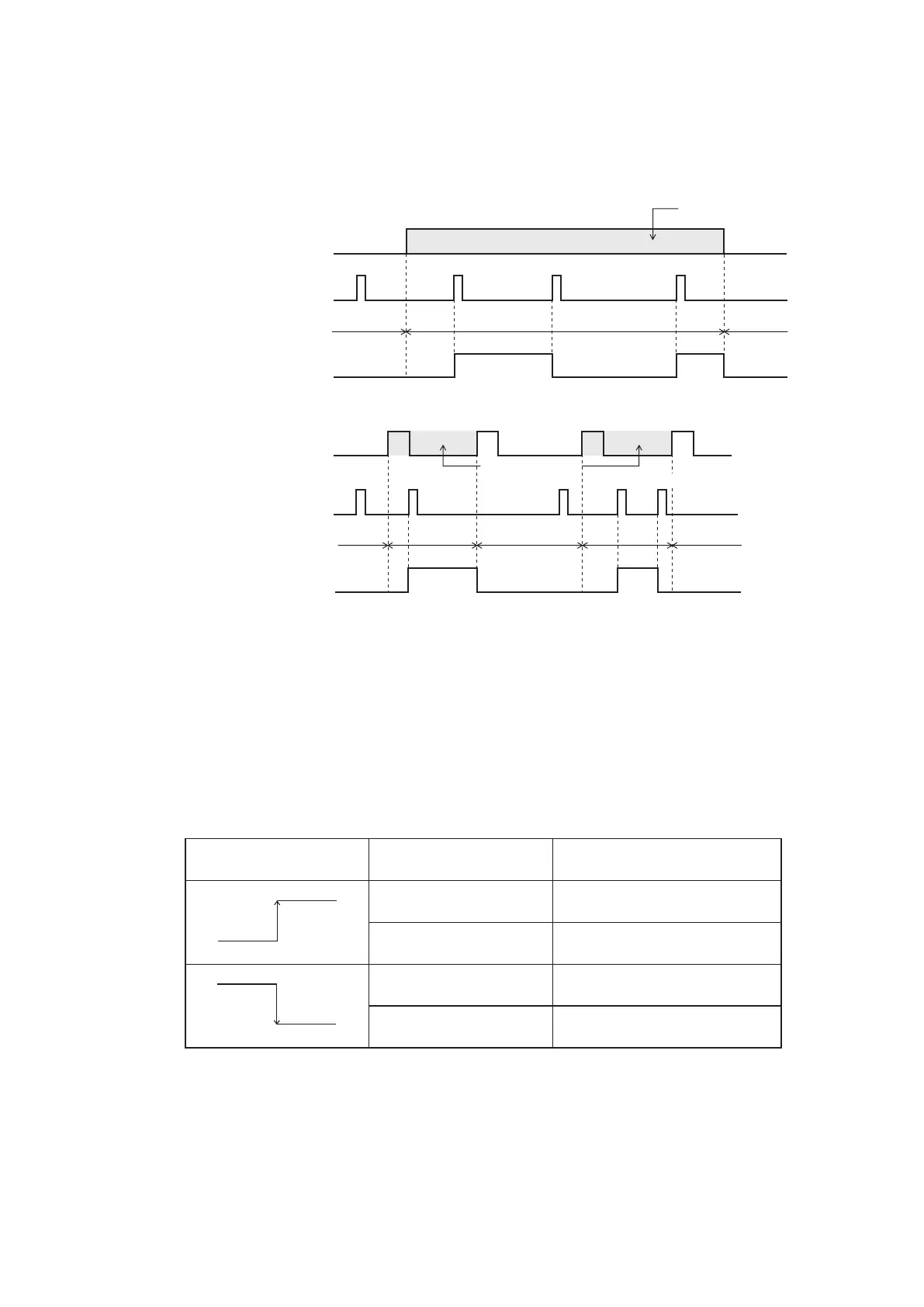

(v) CnS1 performs the following operations depending on the short-circuit or open of the jumper wire (J13). In case of
pulse input, the pulse width is 500ms or larger.
➀
J13 – Short-circuit
CnS1 input OFF (Open)
Remote control operation
Remote control display
Air-conditioner operation/stop
PUSH PUSH PUSH PUSH
OFF
ON (Short-circuit)
OFF (Open)
OFF OFF ON ON
Air-conditioner ON OK
Center Center
Remote
➁
J13 - Open
CnS1 input
Remote control operation
Remote control display
Air-conditioner operation/stop
OFF
OFF
ON
ON OFF OFF ON
OFF ON
Air-conditioner ON OK
Center Remote Center Center
Remote
PUSH PUSH PUSH PUSH PUSH
(vi) After changing mode from operation prohibition mode to permission mode, the indoor units operation status can be
select by 7-segment [P17] setting.
7-segment[P17]=0→KeepingSTOP
7-segment[P17]=1→AutomaticallyRUN
(b) Demand control
(Note) With 7-segment [P07] = [1]
(i) Demand control and normal operation are switched with the connector (CnS1) and the jumper wire (J13) on the
outdoor PCB.
J13: Switching of CnS1 input method
J13 short-circuit: CnS1 is for the level input
J13 open: CnS1 is for the pulse input
(ii) Operation/ stop control by the demand input CnS1 of outdoor unit
Input: CnS1 Switching with J13
CnS1: Switching of demand control/
normal operation
Short-circuit
Open
Short-circuit (Level input)
Demand control
Normal operation
Open (Pulse input)
Switching of normal operation/
demand control (Reversal)
Open
Short-circuit
Short-circuit (Level input)
Normal operation
Demand control
Open (Pulse input) NOP
Note (1) Factory setting – J13: Short-circuit, CnS1: Short-circuit (Short-circuit pin connected)
(iii) The operation condition is desplayed on the LCD of remote control and is transferred to option centralised control.
To Next Page
