(c) Inverter checker for diagnosis of inverter output
䖃Checking method
(i)
1) Power OFF (Turn off the breaker).
2) Remove the terminal cover of compressor and disconnect the wires (U, V, W) from compressor.
3) Connect the wires U (Red) , V (White) and W (Black) of the checker to the terminal of disconnected wires (U, V, W)
from compressor respectively.
(ii)
1) Power ON after JSW10-4 on outdoor inverter PCB was turned ON.
ON/OFF
status of LED
If all of LED are ON/OFF
according to following pattern
If all of LED stay OFF or
some of LED are ON/OFF
Inverter PCB Normal Anomalous
15 sec.
5sec.5sec.
5sec.
During this period, ON/OFF status of LED is
repeated cyclically according to following pattern.
2) After 15 seconds since power has turned ON, LED start ON/OFF for 5 seconds cyclically and it repeats 10 times.
3) Check ON/OFF status of 6 LED's on the checker.
4) Judge the PCB by ON/OFF status of 6 LED's on the checker.
Power ON or start check operation
1 2 3 10
Cyclically
● ON
○ OFF
Red
Black
White
Faston terminal

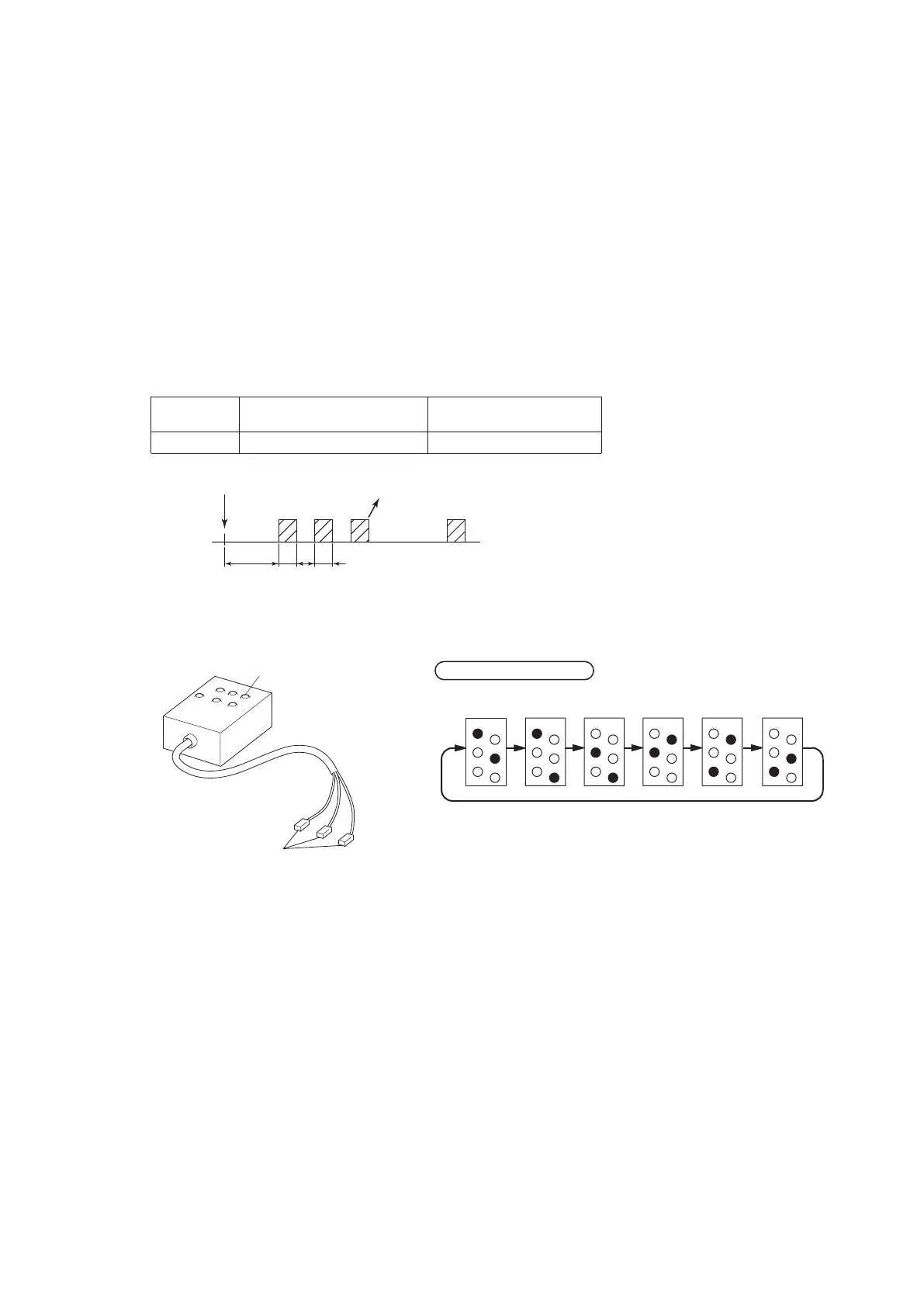

〈Inverter checker〉
Connect to the terminal of the wires which are disconnected from compressor.
LED ON/OFF
pattern
Setup procedure of checker
Operation for judgment
5) Be sure to turn off JSW10-4 on outdoor inverter PCB, after finishing the check operation.
To Next Page
