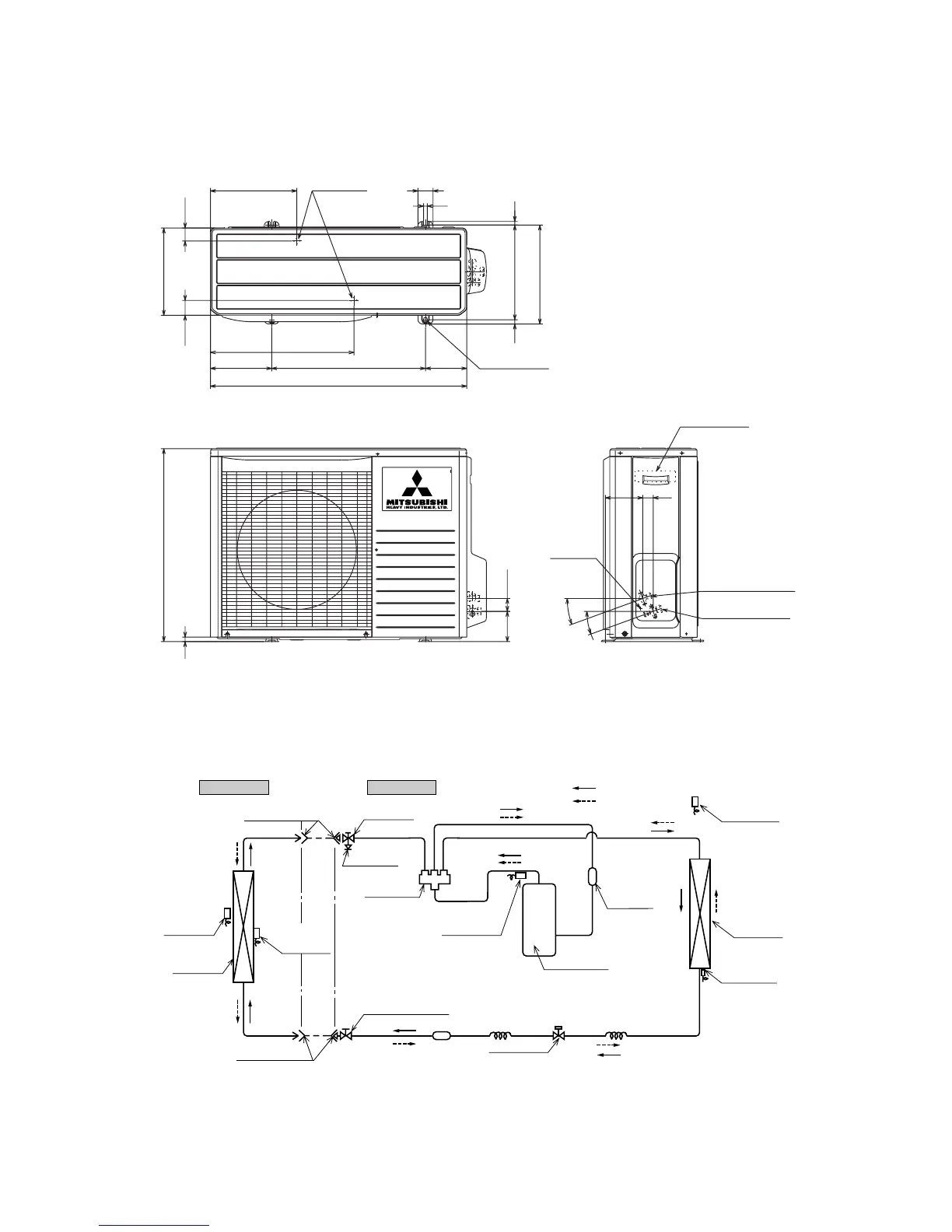

(b) Outdoor unit
Models All models
Drain holes
286.4
12
50
290
49.6
43.5
850
203.1
510 136.9
476
Elogated hole
(2-12 x16)
314
12
328
Terminal block
Service valve (Liquid)
ø6.35 (1/4'')
Service valve (Gas)
ø12.7 (1/2'')
Ground
terminal
124
34.6
20˚
20˚
42.7
100.3
15
640
14
(4) Piping system
Models SRK50HE-S1, 56HE-S1
Outdoor unitIndoor unit
Heat
exchanger
Room temp.
sensor
Heat
exchanger
Flare connection
Heat
exchanger
sensor
Piping
(Liquid)
ø6.35
Check joint
4 way valve
Service valve (Liquid)
Flare connection
Discharge pipe
temp. sensor
Cooling cycle
Heating cycle
Outdoor air
temp. sensor
Heat exchanger
sensor
Compressor
Capillary tube
Strainer
Accumulator
Service valve
(Gas)
Electronic
expansion valve
Piping
(Gas)
ø12.7
Capillary tube
