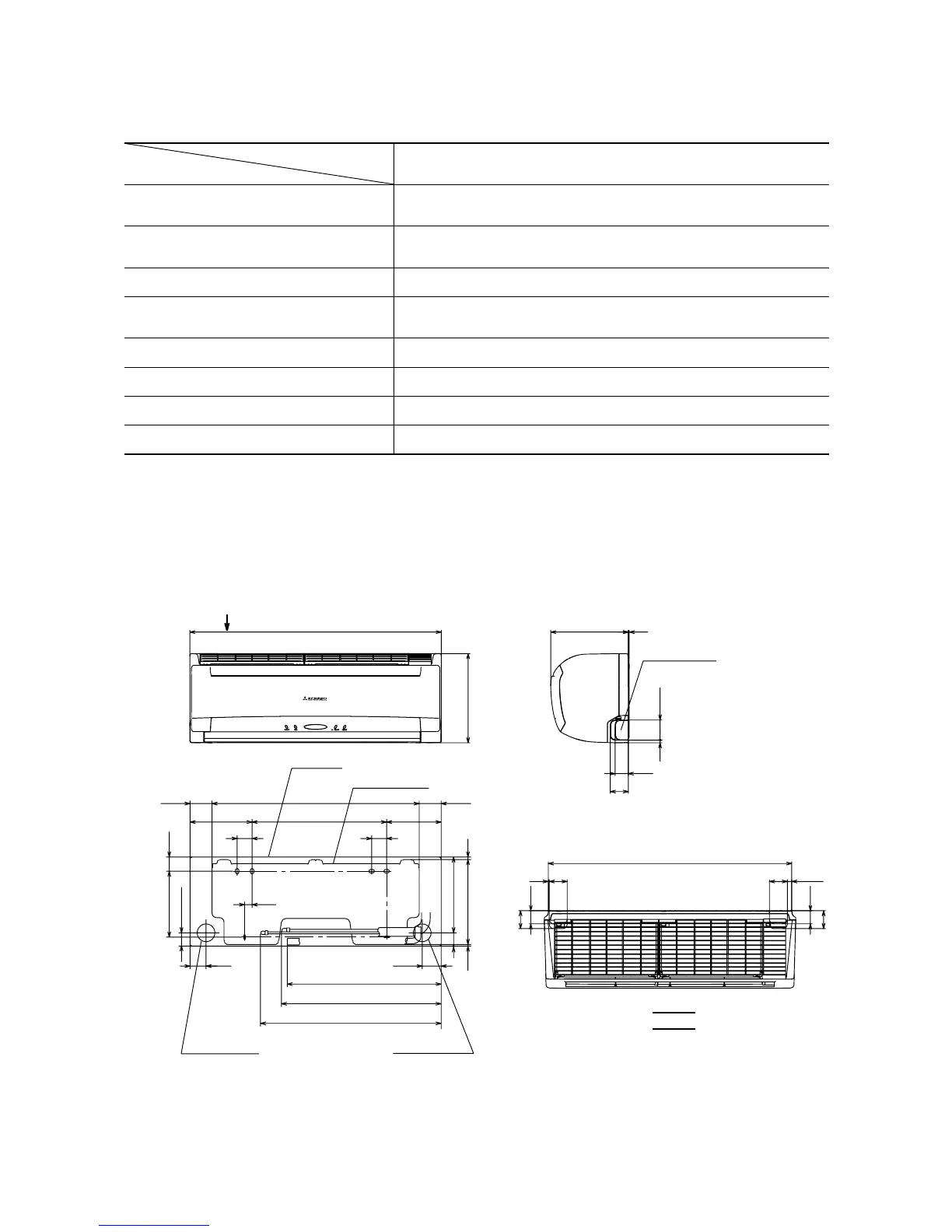

(2) Range of usage & limitations
Indoor return air temperature
(Upper, lower limits)
Refrigerant line (one way) length Max. 25m
All models
Cooling operation : Approximately 21 to 32˚C
Cooling operation : Approximately 21 to 43˚C
Power source voltage Rating ± 10%
Voltage at starting Min. 85% of rating
Frequency of ON-OFF cycle Max. 10 times/h
ON and OFF interval Max. 3 minutes
Outdoor air temperature
(Upper, lower limits)
Vertical height difference between
outdoor unit and indoor unit
Max. 15m (Outdoor unit is higher)
Max. 15m (Outdoor unit is lower)
Item
Models
(3) Exterior dimensions
(a) Indoor unit
Models All models
Unit: mm
840
298
A
Piping hole right
259
9
44
right: 67 left : 60
3
60
60
14.5
813
603
44
44
60
60
VIEW A
44.5
47.5220.5
50
207.5
73.5
53.5
Piping hole (ø65)
Piping hole (ø65)
Indoor unit
Installating board
Drain hose 515 (ø16)
Piping for gas 533.5 (ø12.7)
Piping for liquid 603.5 (ø6.35)
63.5
8.5
5.3
284.2
44.5
73.5
182.5
50
450
693
25
