19
-
(v) Heating “HI POWER” operation (HI POWER button on remote controller: ON)
Operation is maintained for 15 minutes with a higher blow out air temperature.
¡ Detail of operation
Model
SRK20ZD-S1 SRK25, 35ZD-S1 SRK50ZD-S1
Item
Inverter speed 100 rps 102 rps 120 rps
Indoor fan Hot keep M mode (max 8th speed) Hot keep M mode (max 7th speed)
Outdoor fan 4th speed 2nd speed
Notes (1) Room temperature is not adjusted during the HI POWER operation.
(2) Protective functions will actuate with priority even during the HI POWER operation.
3) Ending conditions (Operation returns to the heating cycle when either one of the following is met.)
1 Outdoor heat exchanger sensor (Th4) temperature: 13ºC or higher (50 type: 20°C or higher)
2 Continued operation time of defrosting → For more than 10 min.

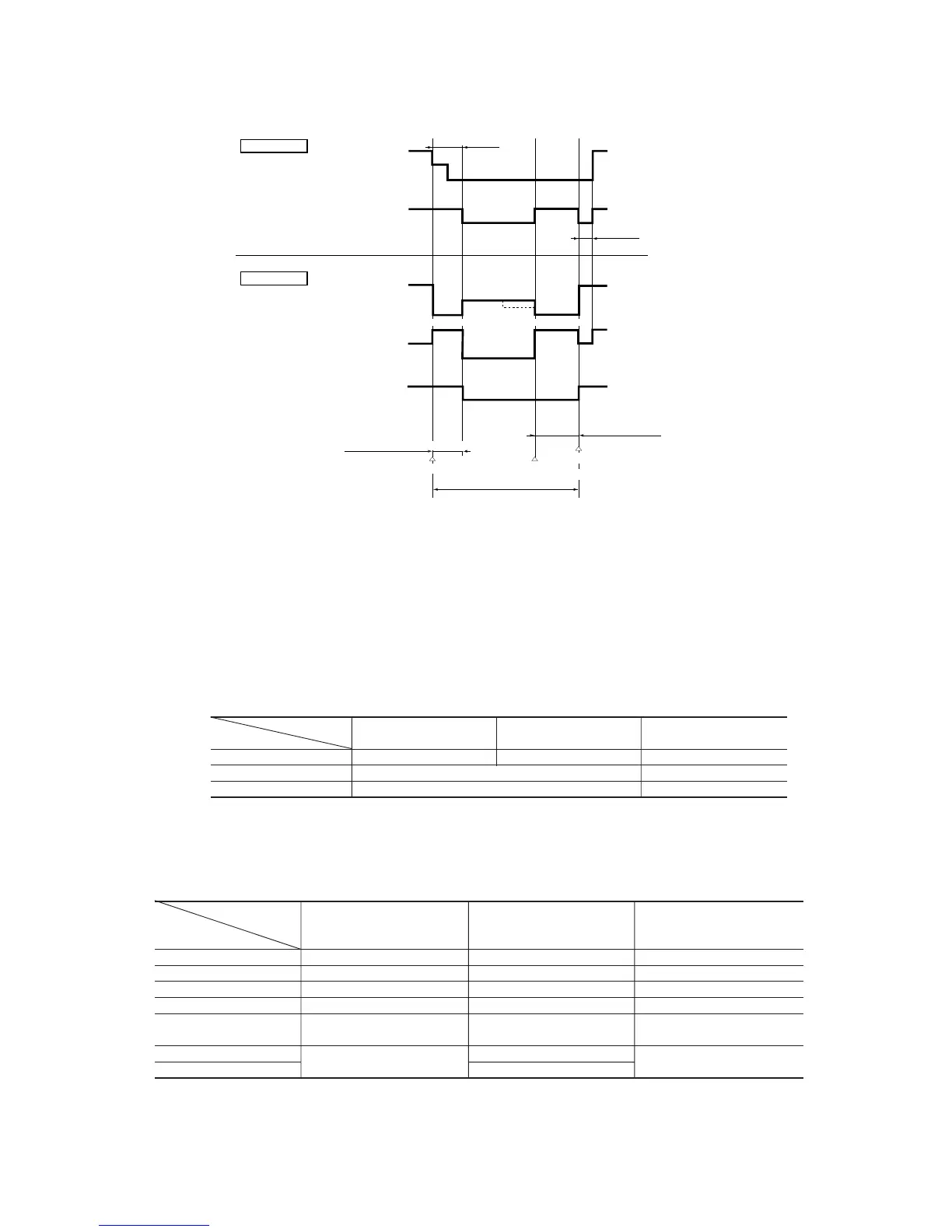

Indoor fan
RUN light
Corresponding
to speed
OFF
ON
Flashing
(Hot keep)
Outdoor fan
Inverter
command
Fuzzy calculated
value
70 rps
(1)
0
Corresponding
to speed
OFF
OFF
ON
4-way valve
Final defrost operation
Defrost control
Hot keep
Indoor unit
Outdoor unit
75 sec.
Hot keep
60 sec.
Normal heating operation restored
Defrost end
(Th4
>
=
20°C, 10 minutes)
Defrost operation
Defrost operation
preparation
2nd speed 2nd speed
(7) Outline of cooling operation
(a) Operation of major functional components in Cooling mode
¡ 50 type
Item
Indoor fan motor ON ON OFF
Flaps ON or OFF ON or OFF Stop position control
Display Lights up Lights up Lights up or flashes
52C ON ON OFF after stop mode
Outdoor fan motor
OFF (20, 25, 35 type)
ON
OFF (20, 25, 35 type)
Depending on the stop mode (50 type) Depending on the stop mode (50 type)
4-way valve
Depending on the stop mode
ON
Depending on the stop mode
Electronic expansion valve Depending on the EEV control
When the inverter
speed is 0rps
When the inverter speed
is other than 0rps
When the inverter speed is 0rps
due to an anomalous stop
Functional
components
Note (1) When outdoor unit heat exchanger sensor (Th4) temperature becomes 7°C or higher, inverter instruction changes 70 rps to 50
rps.
