4G9 ENGINE (E-W) -
Rocker Arms and Rocker Shaft Caps (MIVEC)
11A-8b-1
PWEE9502-A
E
Nov. 1995Mitsubishi Motors Corporation
Added

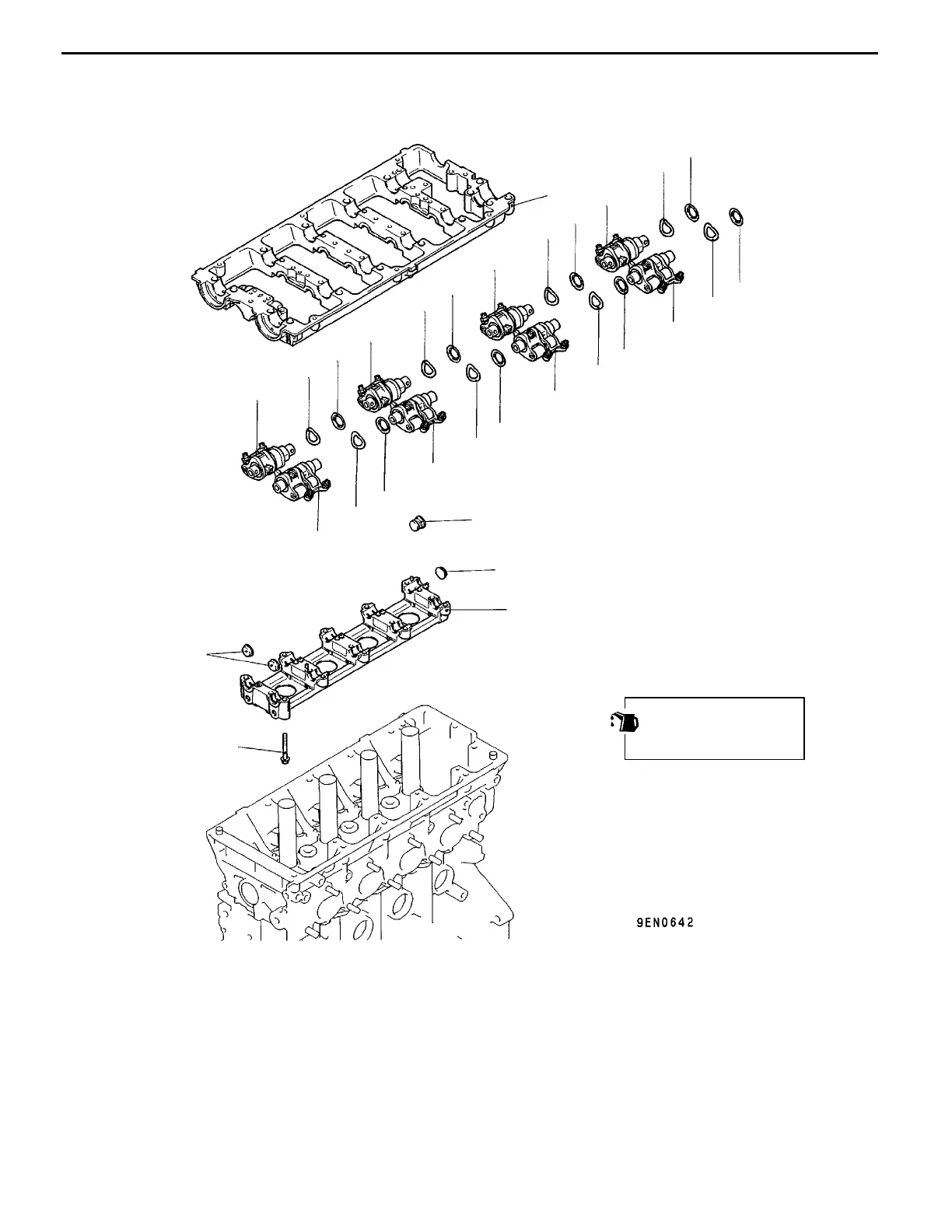

8b. ROCKER ARMS AND ROCKER SHAFT CAPS (MIVEC)
REMOVAL AND INSTALLATION
11 Nm
Apply engine oil to
all moving parts be-
fore installation.
2
3
1
2
10
9
8
7
9
8
7
9
8
7
9
8
7
4
5
6
4
5
6
4
5
6
4
5
6
Removal steps
1. Rocker shaft cap
2. Seal cap “A”
3. Seal cap “B”
4. Spring guide
5. Wave washer
"
A
A
6. Intake rocker arm assembly “A”
7. Spring guide
8. Wave washer
"
A
A
9. Exhaust rocker arm assembly “A”
10. Camshaft holder

Mitsubishi 4G93 Specifications

General

Bore x Stroke	81.0 mm x 89.0 mm
Block Material	Cast iron
Engine code	4G93
Displacement	1834 cc
Compression Ratio	9.5:1
Fuel System	Multi-point fuel injection
Valvetrain	DOHC, 16 valves
Torque	167 Nm
Head Material	Aluminum
Fuel type	Petrol
Engine Type	Inline 4 cylinder
