Mitsubishi A1SD75M3

6 - 16
MELSEC-A
6 SEQUENCE PROGRAM USED FOR POSITIONING CONTROL
*
*
*

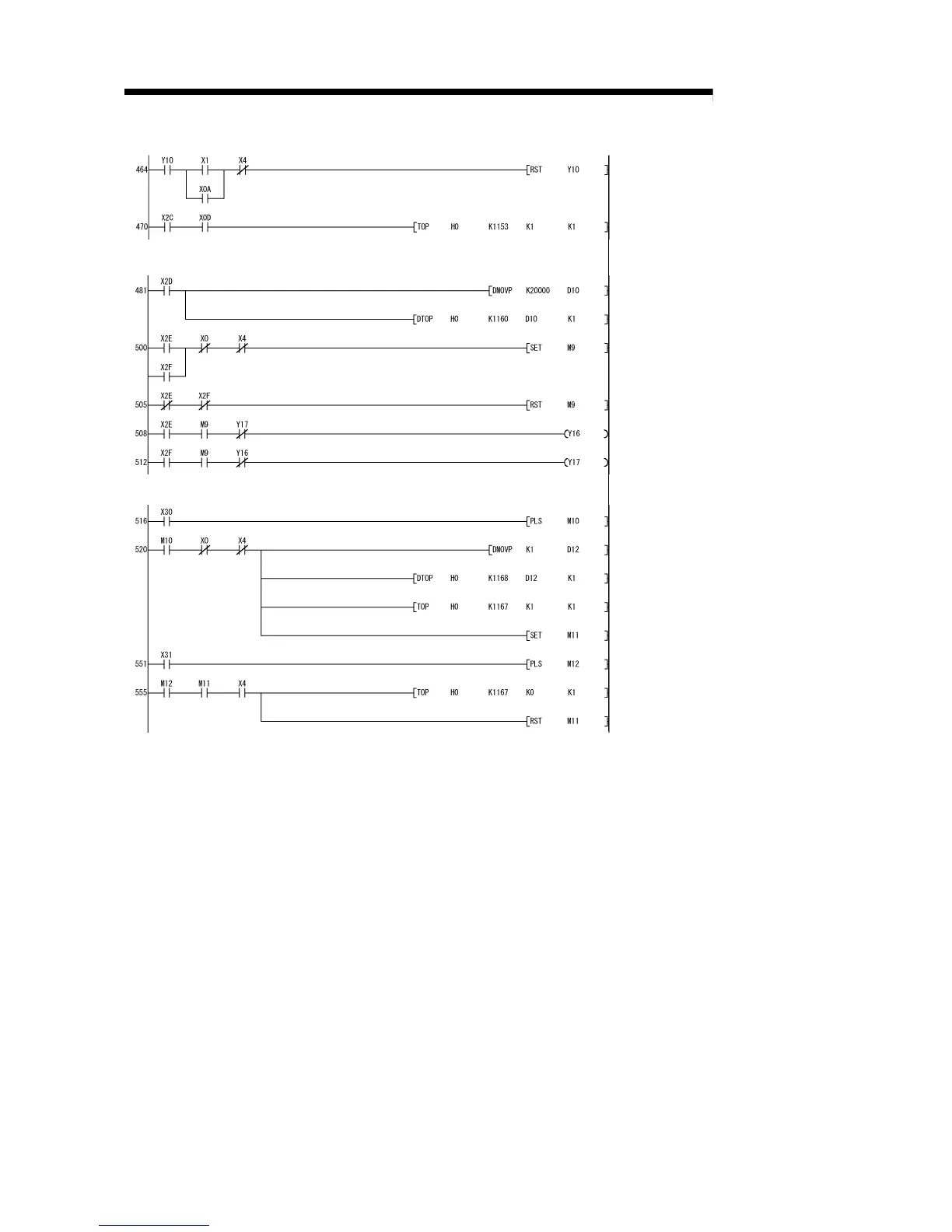

No.11 Reset program
No.12 JOG operation program
<Positioning start signal OFF>
<M code OFF request write>
<JOG operation speed setting>
<JOG operation speed write>
<In JOG flag ON>
<JOG operation completed>
<Forward run JOG operation execution>
<Reverse run JOG operation execution>
No.13 Manual pulse generator operation program
*
*
*
*
*
*
<Manual pulse generator operation command pulse>
<Manual pulse generator 1 pulse input
magnification setting>
<Manual pulse generator operating flag ON>
<Manual pulse generator operation enable write>
<Manual pulse generator 1 pulse input
magnification write>
<Manual pulse generator operation
disable command pulse>
<Manual pulse generator operation disable write>
<Manual pulse generator operating flag OFF>
