The
A2C
has the following features.
(1)
Compact
site
The A2C has compact outside dimensions:
170
mm
(6.7
in)
(height)
X
100
mm
(3.9
in) (width)
X
80
mm
(3.1
in) (length)
Also,
the
A2CI/O
module has
a
short width of
64
mm
(2.5
in).
A2CCPU
NCVO
module
1

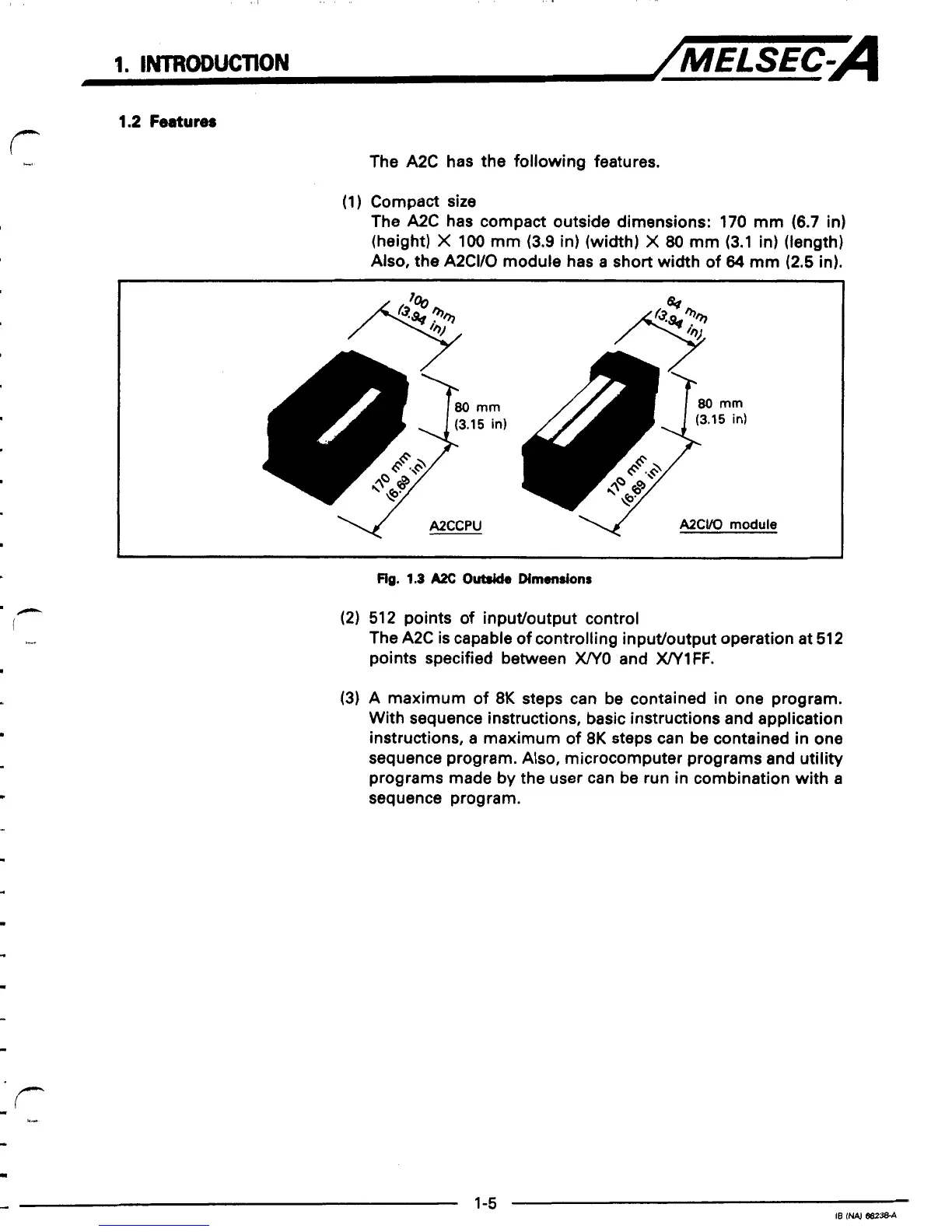

Fig.
1.3
AX
0-
Dimensions
(2)
512
points of input/output control
The
A2C
is
capable of controlling input/output operation at
512
points specified between
XPlO
and
WlFF.
(3)
A
maximum of
8K
steps can be contained in one program.
With sequence instructions, basic instructions and application
instructions,
a
maximum of
8K
steps can be contained in one
sequence program. Also, microcomputer programs and utility
programs made
by
the user can be run in combination with
a
sequence program.
