APPENDICES /MELSEC-A

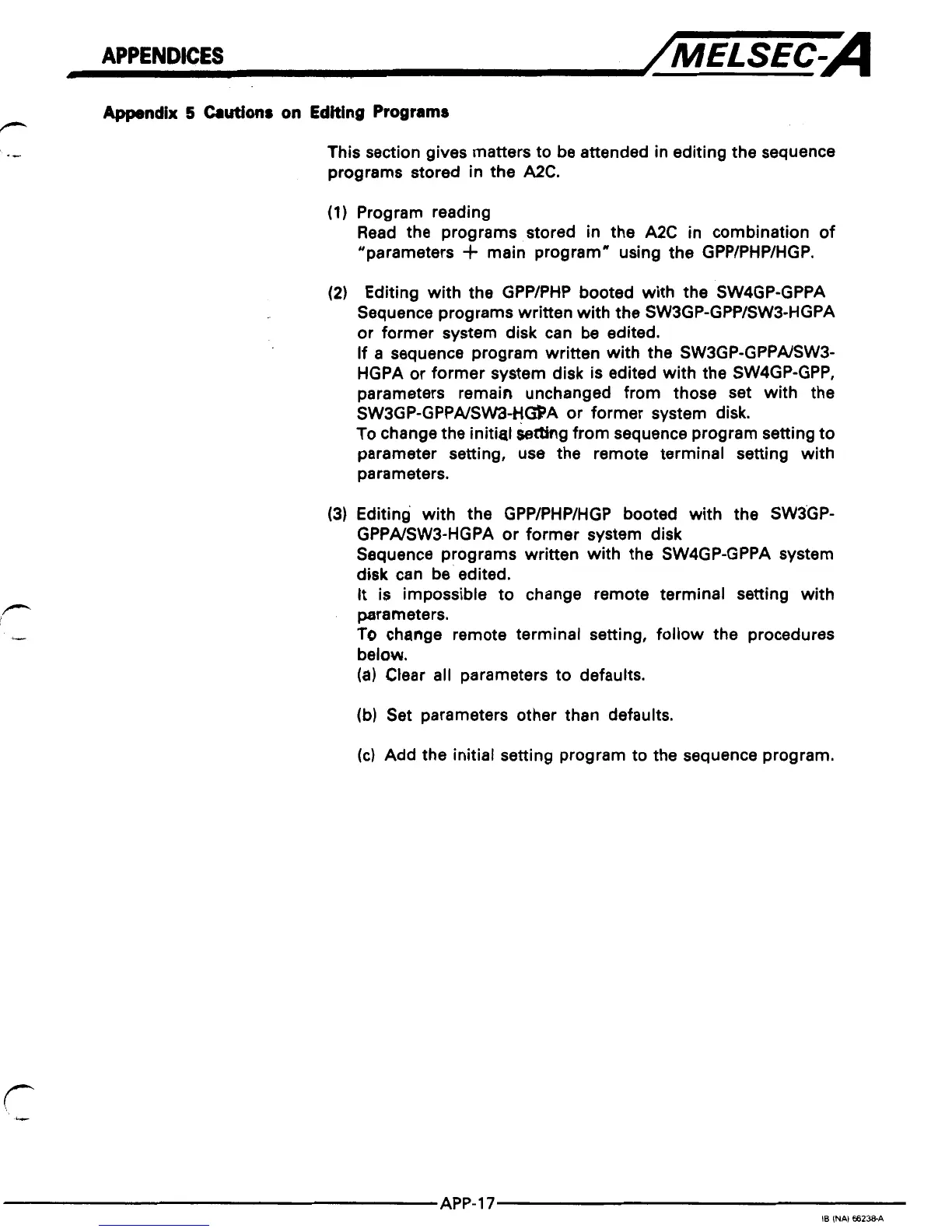

Appendix 5 Cautions on Editing Programs
This section gives matters to be attended in editing the sequence
programs stored in the A2C.
(1) Program reading
Read the programs stored
in the A2C in combination of
"parameters
-I- main program" using the GPP/PHP/HGP.
(2) Editing with the GPP/PHP booted with the SW4GP-GPPA
Sequence programs written with the SW3GP-GPP/SW3-HGPA
or former system disk can be edited.
If a sequence program written with the SW3GP-GPPNSW3-
HGPA or former system disk is edited with the SW4GP-GPP,
parameters remain unchanged from those set with the
SW3GP-GPPNSWa-tl@A or former system disk.
To change the initial bttlng from sequence program setting to
parameter setting, use the remote terminal setting with
parameters.
(3) Editing with the GPP/PHP/HGP booted with the SW3GP-
GPPNSW3-HGPA or former system disk
Sequence programs written with the SW4GP-GPPA system
disk can be edited.
It is impossible to change remote terminal setting with
parameters.
TO change remote terminal setting, follow the procedures
below.
(a) Ctear all parameters to defaults.
(b) Set parameters other than defaults.
(c) Add the initial setting program to the sequence program.
APP-
1 7
IB lNAI 66238A
