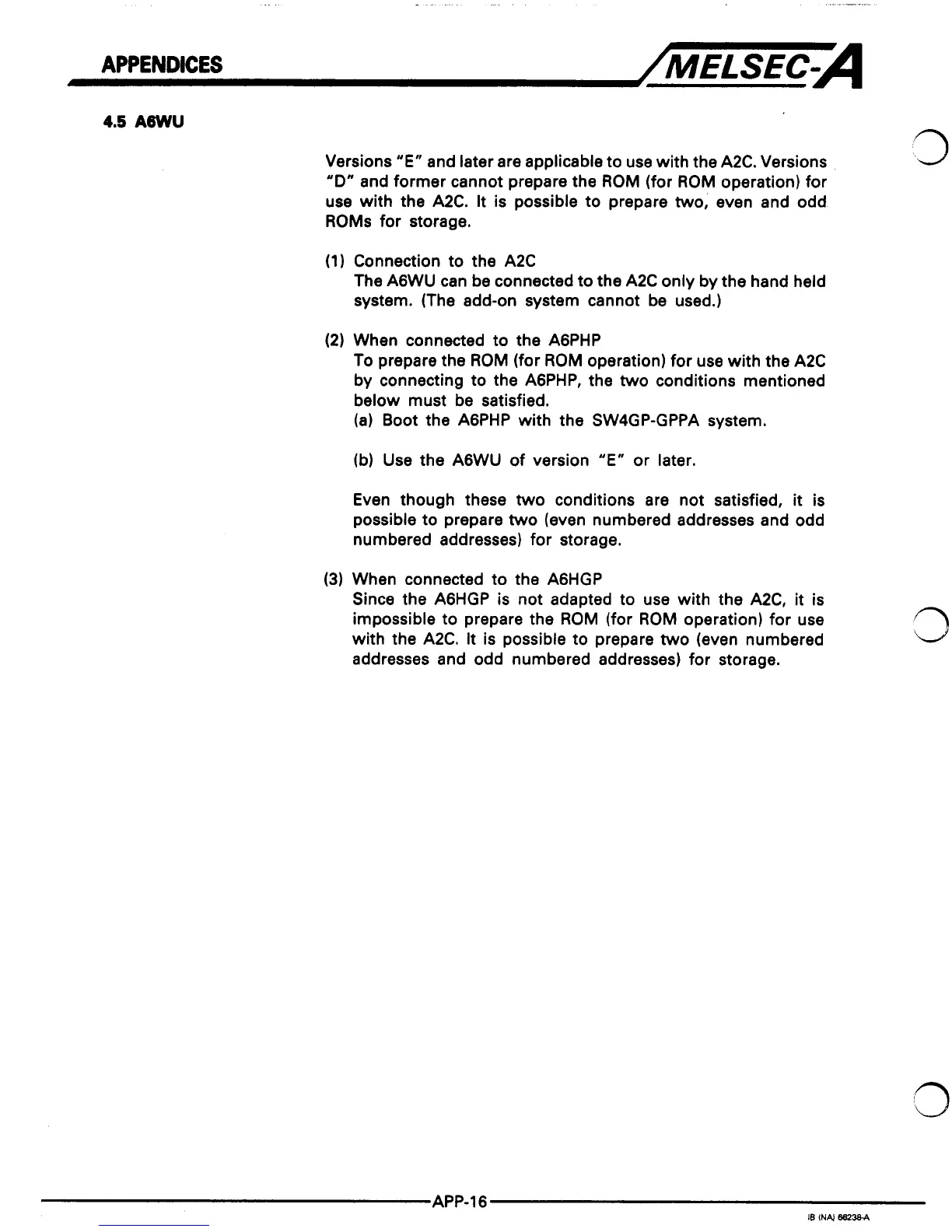

APPENDKES /MELSEC-A
4.5 AWU
Versions "E" and later are applicable to use with the A2C. Versions
"D" and former cannot prepare the ROM (for ROM operation) for
use with the A2C.
It is possible to prepare two, even and odd
ROMs for storage.
(1) Connection to the A2C
The AGWU can be connected to the A2C only by the hand held
system. (The add-on system cannot be used.)
(2) When connected to the AGPHP
To prepare the ROM (for ROM operation) for use with the A2C
by connecting to the AGPHP, the
two conditions mentioned
below must be satisfied.
(a) Boot the AGPHP with the SW4GP-GPPA system.
(b) Use the AGWU of version
"E'' or later.
Even though these
two conditions are not satisfied, it is
possible to prepare
two (even numbered addresses and odd
numbered addresses) for storage.
(3) When connected to the AGHGP
Since the AGHGP
is not adapted to use with the A2C, it is
impossible to prepare the ROM (for ROM operation) for use
with the A2C.
It is possible to prepare two (even numbered
addresses and odd numbered addresses) for storage.
c
APP-16 I
