APPENMCES /MELSEC-A

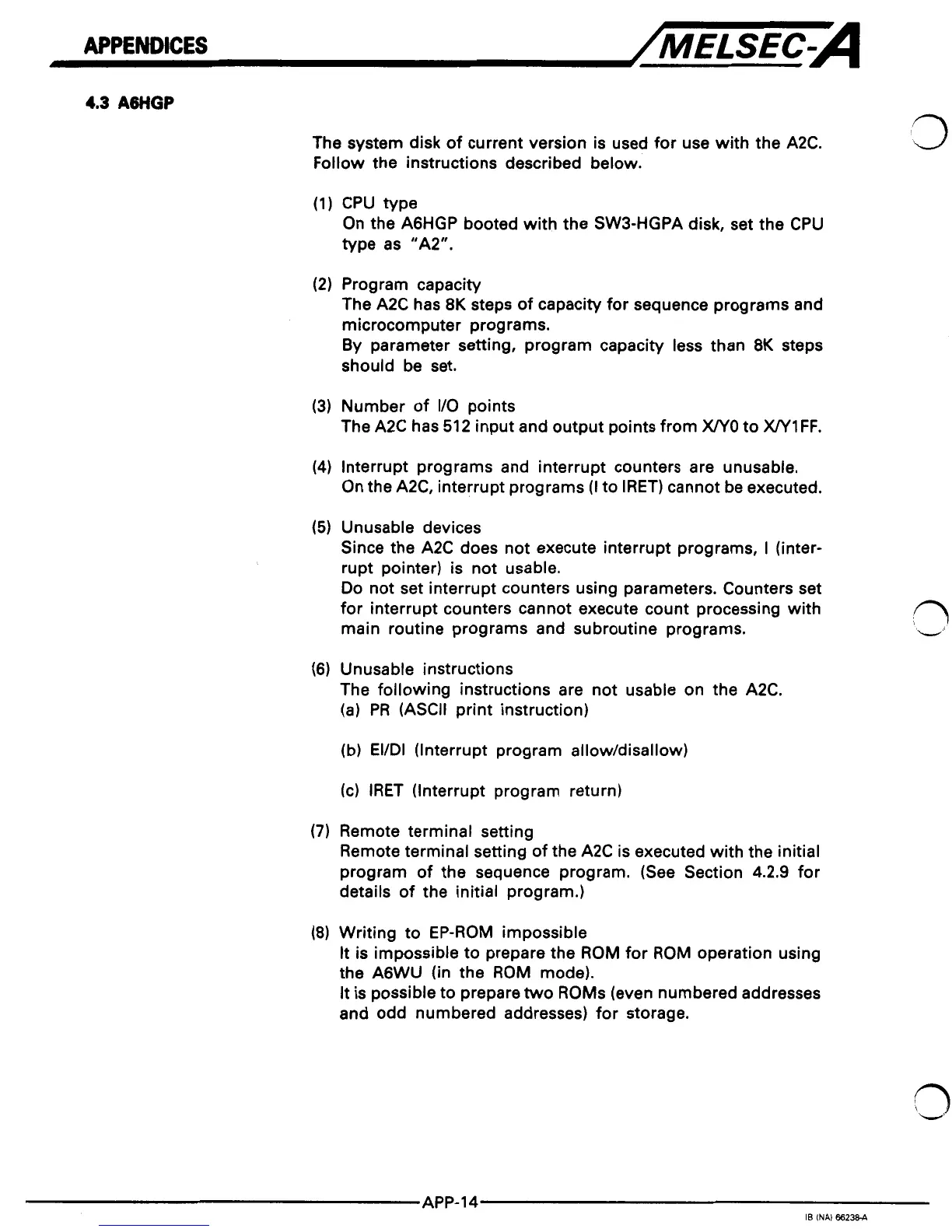

4.3 AWGP
The system disk of current version is used for use with the A2C.
Follow the instructions described below.
(1) CPU type
On the A6HGP booted with the SW3-HGPA disk, set the CPU
type as "A2".
(2) Program capacity
The A2C has
8K steps of capacity for sequence programs and
microcomputer programs.
By parameter setting, program capacity less than 8K steps
should be set.
(3) Number of I/O points
The A2C has 512 input and output points from
WO to WlFF.
(4) Interrupt programs and interrupt counters are unusable.
On the A2C, interrupt programs
(I to IRET) cannot be executed.
(5) Unusable devices
Since the A2C does not execute interrupt programs,
I (inter-
rupt pointer) is not usable.
Do not set interrupt counters using parameters. Counters set
for interrupt counters cannot execute count processing with
main routine programs and subroutine programs.
(6) Unusable instructions
The following instructions are not usable on the A2C.
(a) PR (ASCII print instruction)
(b) EVDI (Interrupt program allow/disallow)
(c) IRET (Interrupt program return)
(7) Remote terminal setting
Remote terminal setting of the A2C is executed with the initial
program of the sequence program. (See Section 4.2.9 for
details of the initial program.)
(8) Writing to EP-ROM impossible
It is impossible to prepare the ROM for ROM operation using
the AGWU (in the ROM mode).
It is possible to prepare two ROMs (even numbered addresses
and odd numbered addresses) for storage.
3
rl
1
Y
3
1
I
1
d
n
APP-14 d
IB INA) 6623M
