Sistema
α
Instalación 3
13
ESP
No desmonte el controlador
α
. Consulte el manual del cassette de memoria al cambiar el cassette de memoria.
AC 100-240V
POWER
AC INPUT
AL-20MR-A
OK
ESC
RELAY OUTPUT

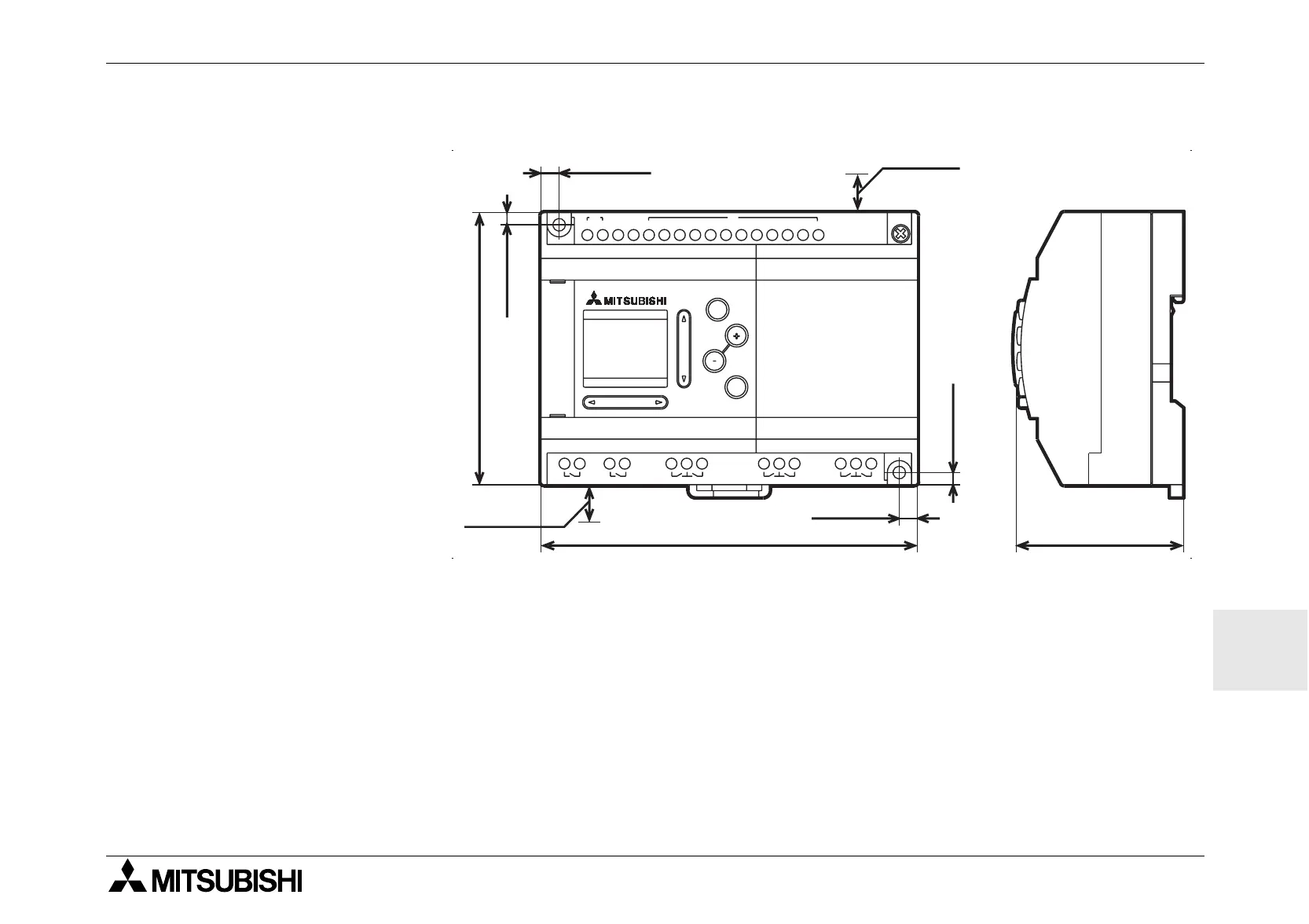

6.0(0.24")
10(0.39")*
55.0(2.17")
6.0(0.24")
124.6(4.91")
10(0.39")*
4.0(0.16")
90.0(3.54")
4.0(0.16")
OUT 1
OUT 2
OUT 5 OUT 3
OUT 4
OUT 6
OUT 8 OUT 7
1 2 3 4 5 6 7 8 9 10 11 12
IN
LN
~
