MANUAL TRANSMISSION (E-W) -
Transmission <F5M42, W5M42>
22B-4-7

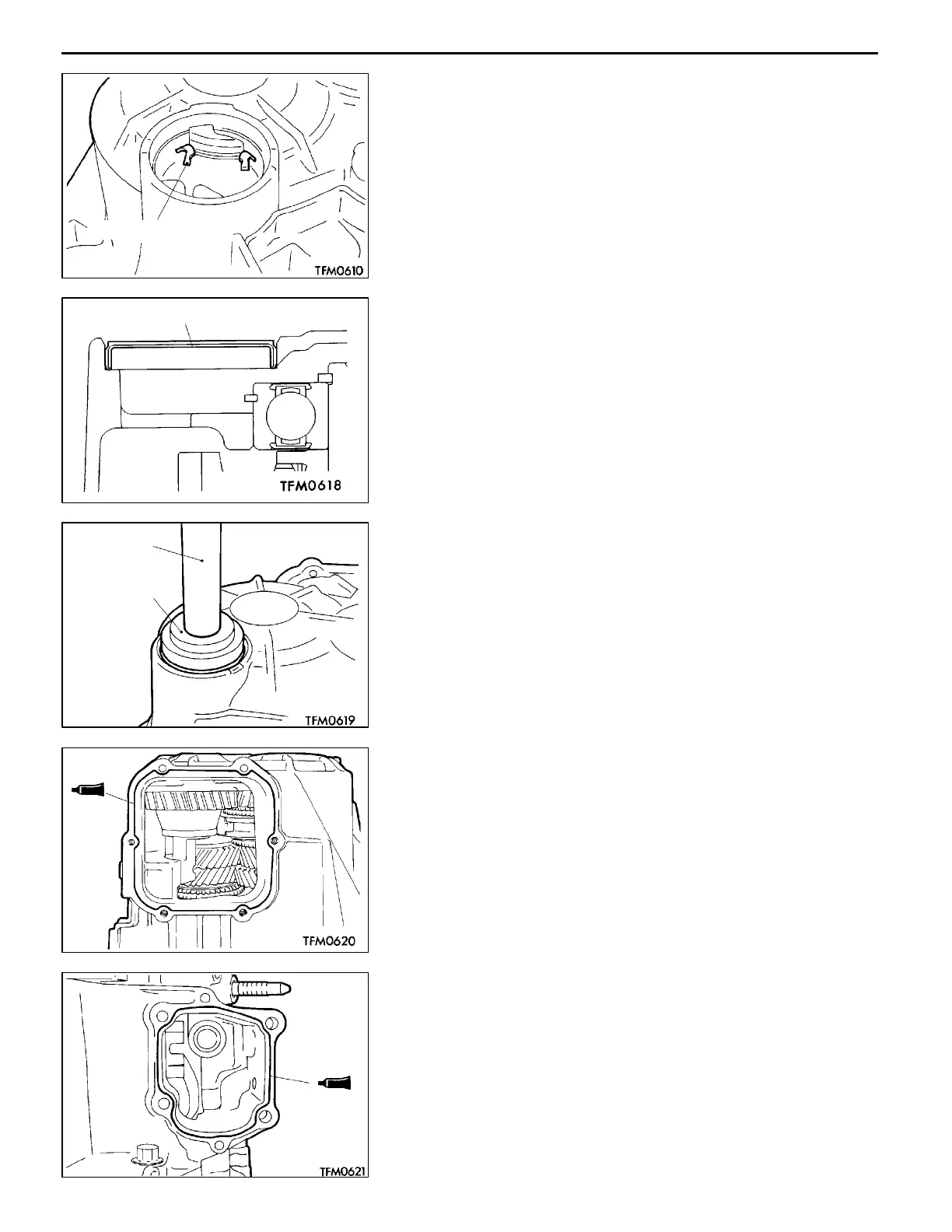

(2) Install the transmission case and expand the snap ring.
(3) Tighten the transmission case to the specified torque.
NOTE
Place the transmission upside down and let the snap ring
fit in the groove by taking advantage of the output shaft’s
own weight.
"
G
A
SEALING CAP INSTALLATION
Press-fit the sealing cap all the way up to the illustrated position.
"
H
A
UNDER COVER INSTALLATION
Apply a 1.5 mm bead of sealant to the illustrated position
of the transmission case.
Specified sealant:
MITSUBISHI genuine sealant part No. MD997740 or
equivalent
Caution
Squeeze out the sealant uniformly, while making sure that
it is not broken or excessively applied.
"
I
A
CONTROL HOUSING INSTALLATION
Apply a 1.5 mm bead of sealant to the illustrated position
of the transmission case.
Specified sealant:
MITSUBISHI genuine sealant part No. MD997740 or
equivalent
Caution
Squeeze out the sealant uniformly, while making sure that
it is not broken or excessively applied.
PWEE9508-E
E
Jun. 1998Mitsubishi Motors Corporation Revised
Snap ring
Sealing cap
MB990938
MB990927
