MANUAL TRANSMISSION (E-W) -
General Information
22B-0-5
F5M42

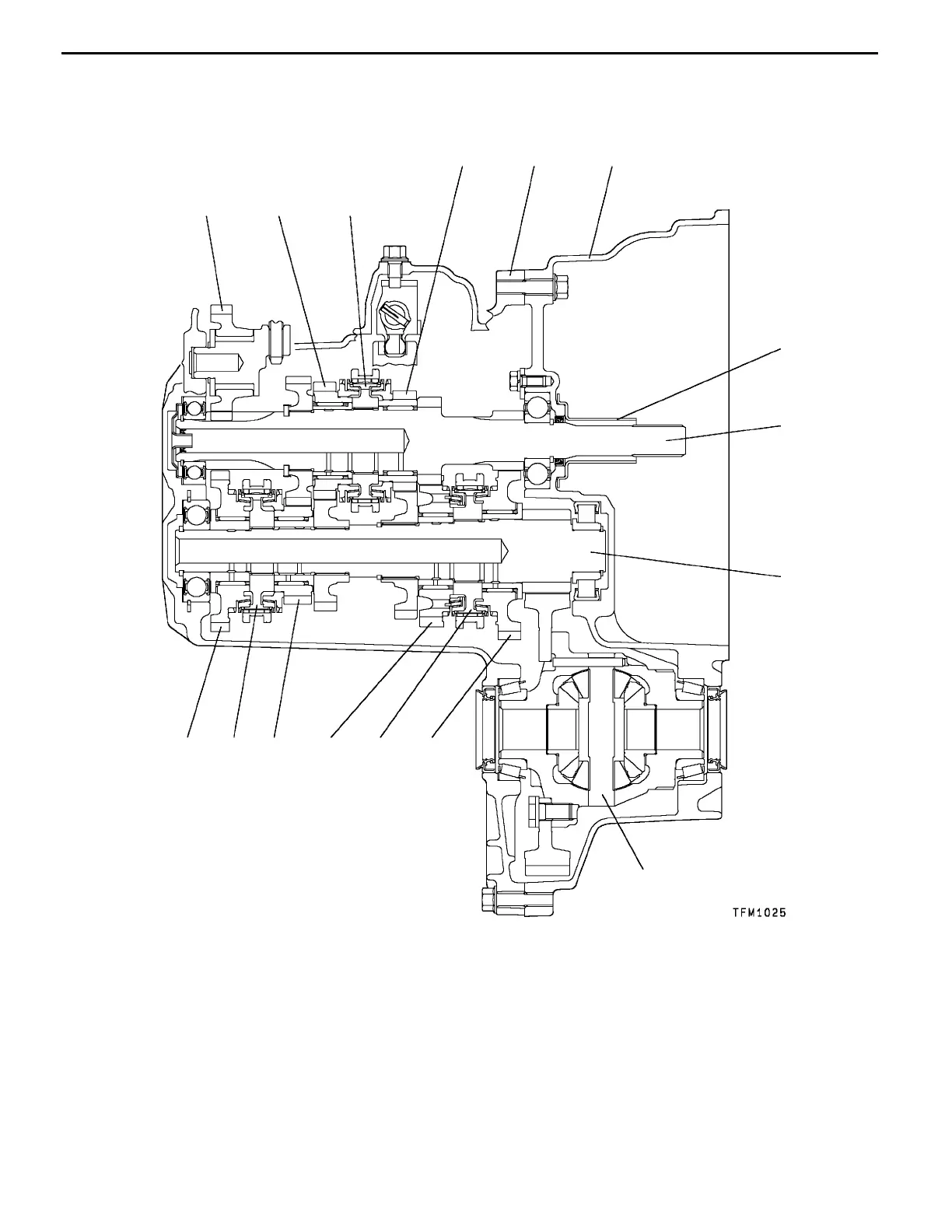

<Types with single synchronizer ring for 1st gear and double synchronizer ring
for 2nd gear>
1
2
3
4
5
6
7
10
9
8
111214 131516
1. Reverse idler gear
2. 4th speed gear
3. 3rd-4th speed synchronizer hub
4. 3rd speed gear
5. Transmission case
6. Clutch housing
7. Release bearing retainer
8. Input shaft
9. Output shaft
10. Differential
11. 1st speed gear
12. 1st-2nd speed synchronizer hub
13. 2nd speed gear
14. 5th speed gear
15. 5th-reverse speed synchronizer hub
16. Reverse gear
PWEE9508-F
