MANUAL TRANSMISSION (E-W) -
Differential <F5M41, F5M42>,
Front Differential <W5M42>
22B-15-2

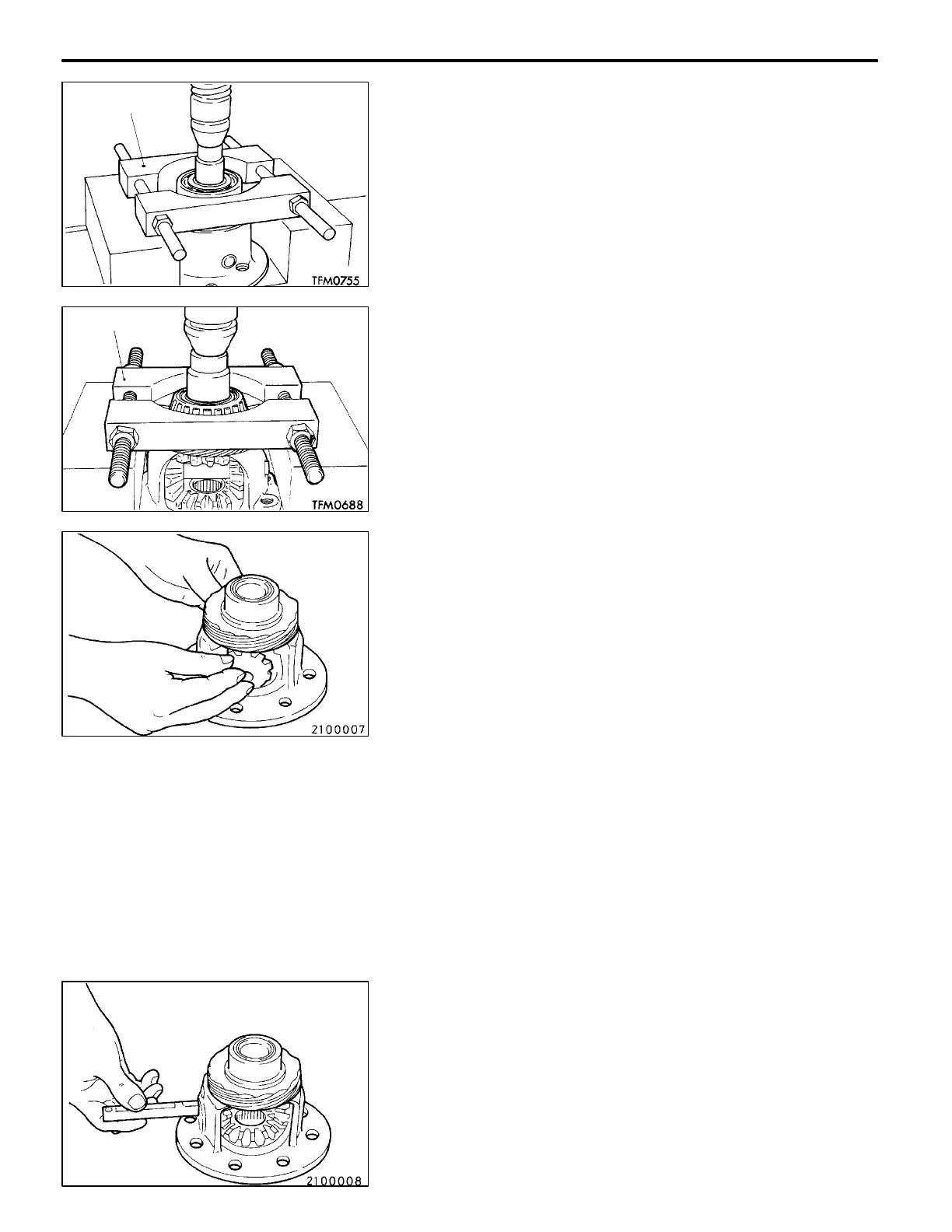

DISASSEMBLY SERVICE POINTS
A
A
"
BALL BEARING REMOVAL <F5M41>
Use the special tool to remove t he ball bearing.
A
B
"
TAPER ROLLER BEARING REMOVAL <F5M42>
Use the special tool to remove the taper roller bearing.
REASSEMBLY SERVICE POINTS
"
A
A
SPACER / SIDE GEAR / WASHER / PINION /
PINION SHAFT INSTALLATION
(1) After a spacer has been mounted on the back surface
of the side gear, install th e side gear in the differential
case.
NOTE
When a new side gear is to be installed, mount a medium
thickness spacer (0.93 - 1.00 mm).
(2) Set the washer on the back of each pinion, and put both
pinions simultaneously in mesh with th e side gears. While
rotating them, install them in position.
(3) Insert the pinion shaft.
PWEE9508-E
E
Jun. 1998Mitsubishi Motors Corporation Revised
MD998801
MD998801
