MANUAL TRANSMISSION (E-W) -
Transmission
22A-3-5
PWEE9508
E
May 1995Mitsubishi Motors Corporation
A
J
"

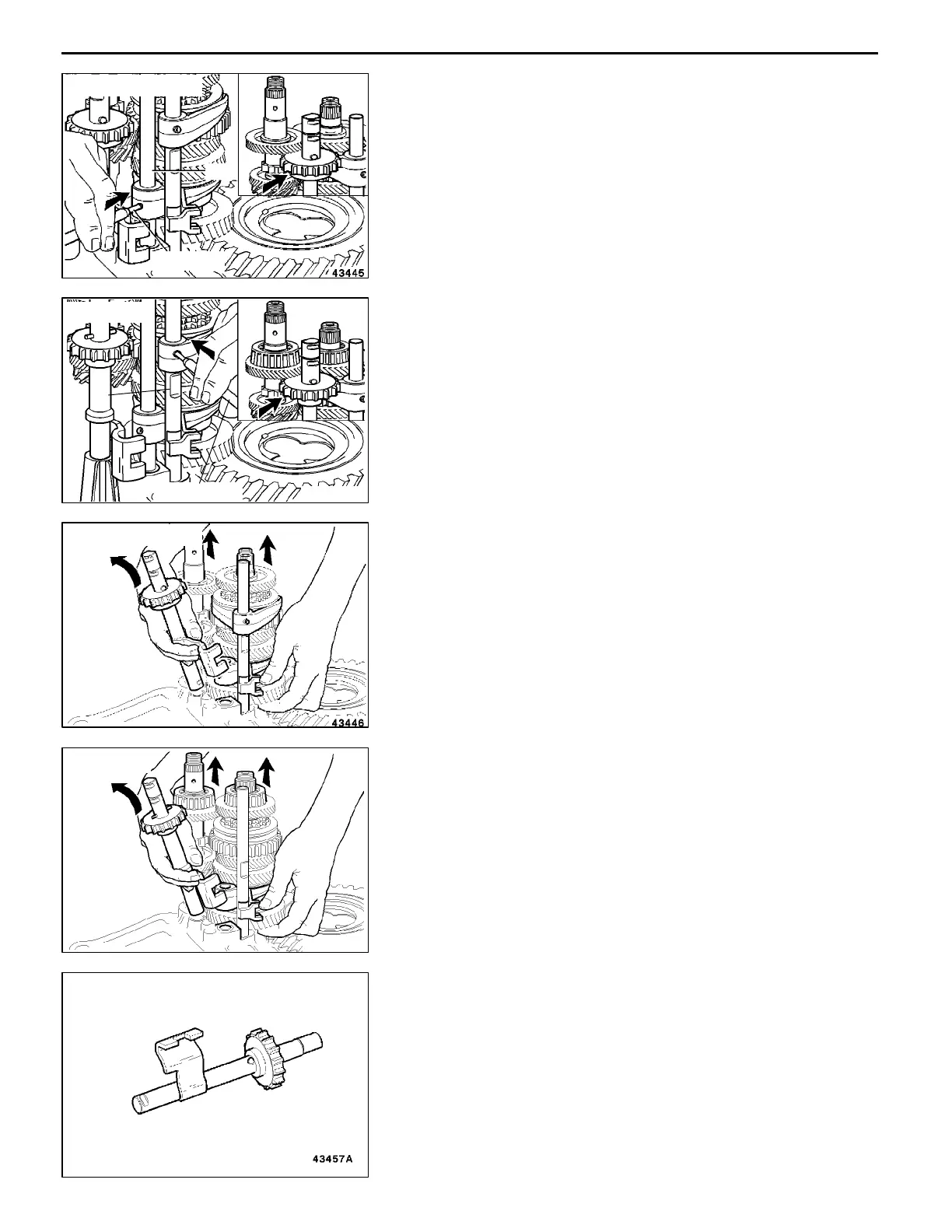

SPRING PIN/1ST AND 2ND GEAR SHIFT RAIL
ASSEMBLY REMOVAL
(1) Cover the differential drive gear with a cleaning rag.
(2) Tap out the spring pin as far as possible with spring pin
extractor MD998019.
(3) Move 3rd and 4th gear into neutral.
(4) Raise the reverse gear shaft as high as possible and
remove the shift rail assembly 10.
A
K
"
REVERSE IDLER GEAR SHAFT REMOVAL
(1) Raise the input and output shafts.
(2) Take the reverse idler gear shaft out of the clutch housing.
NOTE
Hold the output shaft at the bottom.
(3) Inspect th e reverse idler gear shaft.
NOTE
The shaft must always be renewed in the event of wear
or damage. The shaft cannot be reconditioned.
RevisedPWEE9508-BMitsubishi Motors Corporation
May 1996
E
RevisedPWEE9508-BMitsubishi Motors Corporation
May 1996
E
MD998019
10
<F5MR1, F5MR2>
<F5MR3>
MD998019
10
RMT0005
<F5MR1, F5MR2>
<F5MR3>
RMT0006
<F5MR1, F5MR2>
