Mitsubishi F5MR1 User Manual

MANUAL TRANSMISSION (E-W) -
Input Shaft <F5MR3>
22A-8-1
PWEE9508
E
May 1995Mitsubishi Motors Corporation

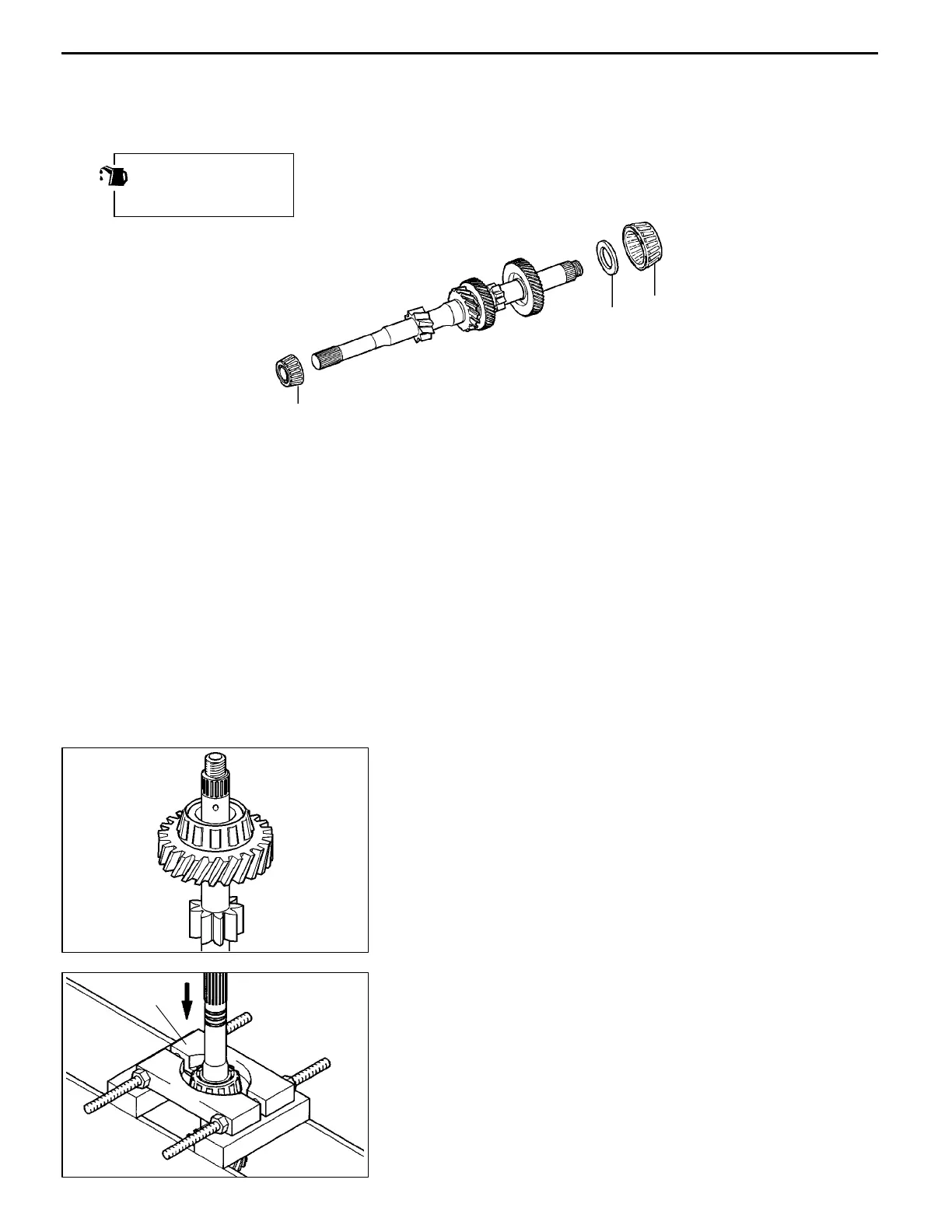

8. INPUT SHAFT <F5MR3>
DISASSEMBLY AND REASSEMBLY
1
2
3
RMT0053
Lubricate all internal
parts with gear oil
during reassembly.
Disassembly steps
A
A
""
B
A
1. Bearing
2. Shim
A
B
""
A
A
3. Bearing
DISASSEMBLY SERVICE POINTS
A
A
"
INPUT SHAFT BEARINGS/TRANSMISSION CASE
END REMOVAL
Remove th e bearing and t h e shim.
A
B
"
INPUT SHAFT BEARING/CLUTCH HOUSING END
REMOVAL
(1) Place the input shaft on a soft surface.
(2) Tap the bearing partway off the input shaft with a chisel.
(3) Locate the bearing remover MD998801 behind the
bearing.
(4) Press the bearing of the input shaft.
AddedPWEE9508-BMitsubishi Motors Corporation
May 1996
E
RMT0054
RMT0055
MD998801
