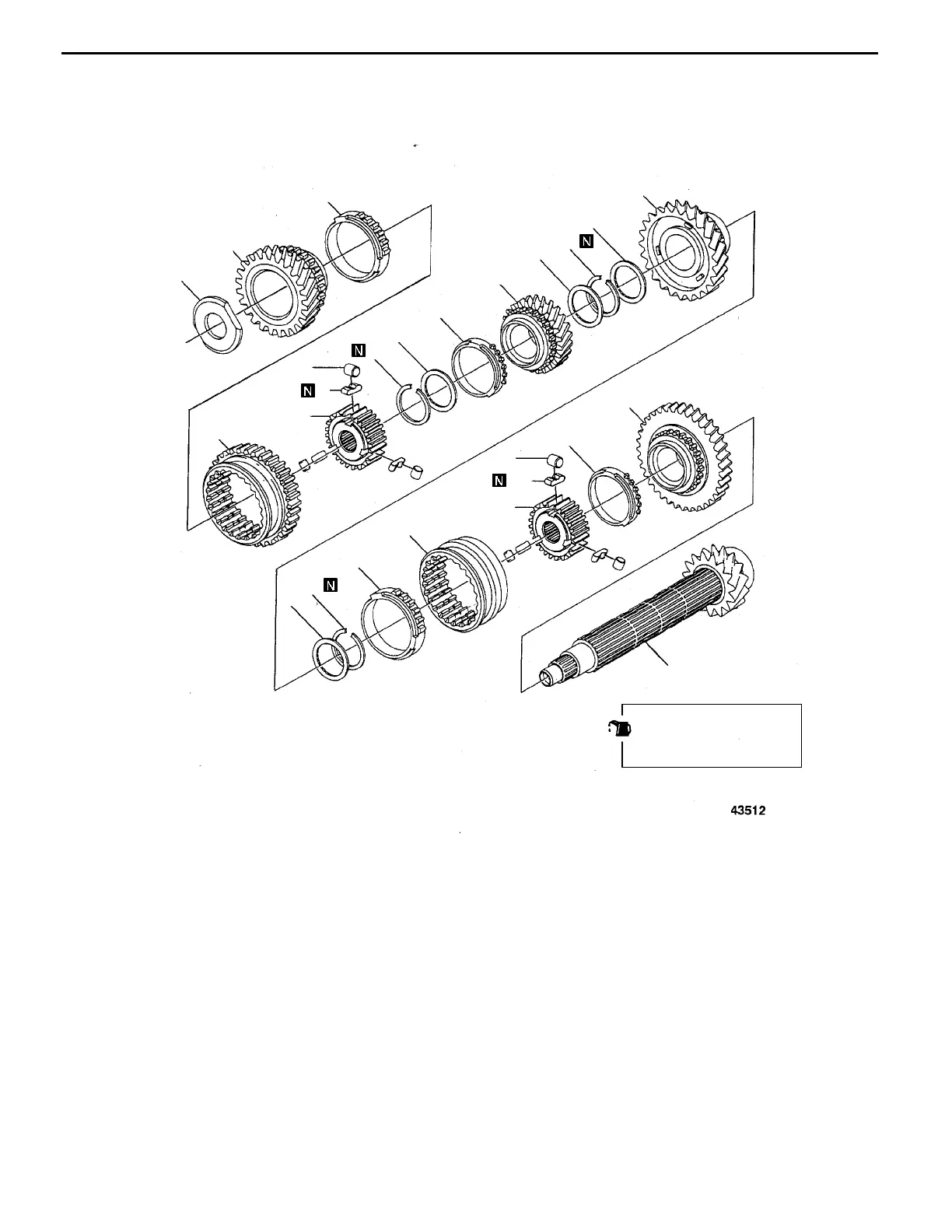

4. OUTPUT SHAFT
DISASSEMBLY AND REASSEMBLY <F5MR1, F5MR2>
Lubricate all internal
parts with gear oil
during reassembly.
22
2
3
23
24
25
4
5
1
6
7
12
8
13
16
17
18
19
20
21
10
9
15
14
11
Disassembly steps
1. Shim
A
A
""
N
A
2. 4th gear wheel
3. Synchronizer ring
4. 3rd - 4th synchronizer sleeve
A
G
"
5. Synchronizer springs
A
G
"
6. Rollers
A
B
""
K
A
7. 3rd - 4th synchronizer hub
8. Snap ring
9. Serrated ring
10. Synchronizer ring
A
C
""
I
A
11. 3rd gear wheel
12. Serrated ring
13. Snap ring
14. Serrated ring
A
D
""
F
A
15. 2nd gear wheel
16. Serrated ring
17. Snap ring
18. Synchronizer ring
19. 1st - 2nd synchronizer sleeve
A
G
"
20. Synchronizer springs
A
G
"
21. Rollers
A
E
""
D
A
22. 1st - 2nd synchronizer hub
23. Synchronizer ring
A
F
""
A
A
24. 1st gear wheel
25. Output shaft
RevisedPWEE9508-BMitsubishi Motors Corporation
May 1996
E
