MANUAL TRANSMISSION (E-W) -
General Information
22A-0-3
PWEE9508
E
May 1995Mitsubishi Motors Corporation
GENERAL INFORMATION

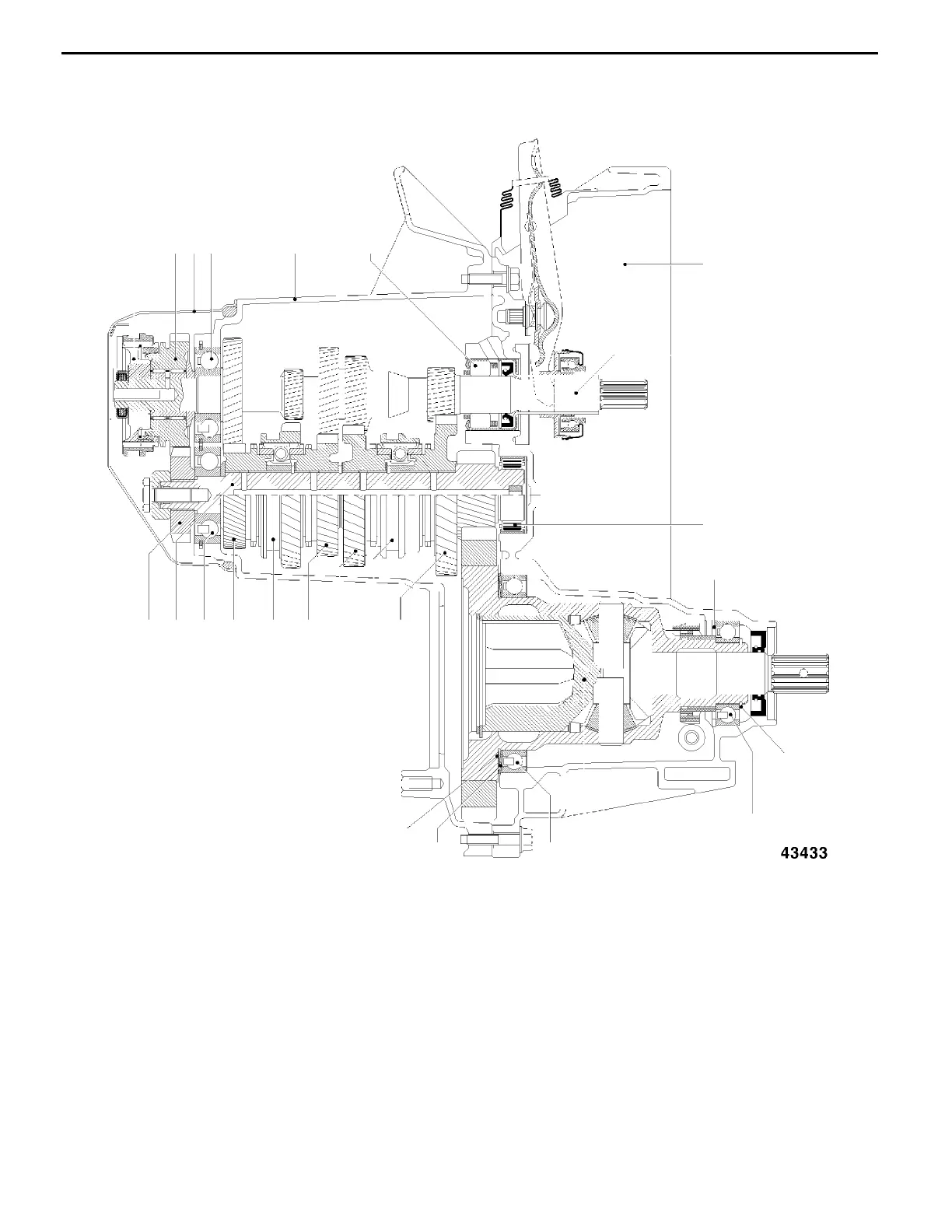

F5MR1, F5MR2 - Five-speed front wheel drive transmission
8765 4 3
1
2
21201918
9101112 1314151617
2322
25
24
1. Clutch housing
2. Input shaft
3. Input shaft bearing
4. Transmission case
5. Input shaft bearing
6. Rear cover
7. 5th speed gear
8. 5th speed synchronizer assembly
9. 5th gear wheel
10. Output shaft
11. Output shaft bearing
12. 4th speed gear
13. 3rd - 4th speed synchronizer
assembly
14. 3rd speed gear
15. 2nd speed gear
16. 1st - 2nd speed synchronizer
assembly
17. 1st speed gear
18. Guard ring
19. Spring ring
20. Differential bearing
21. Differential
22. Differential bearing
23. Snap ring
24. Snap ring
25. Output shaft bearing
