MANUAL TRANSMISSION (E-W) -
General Information
22A-0-4
PWEE9508-B
E
May 1996Mitsubishi Motors Corporation
Added

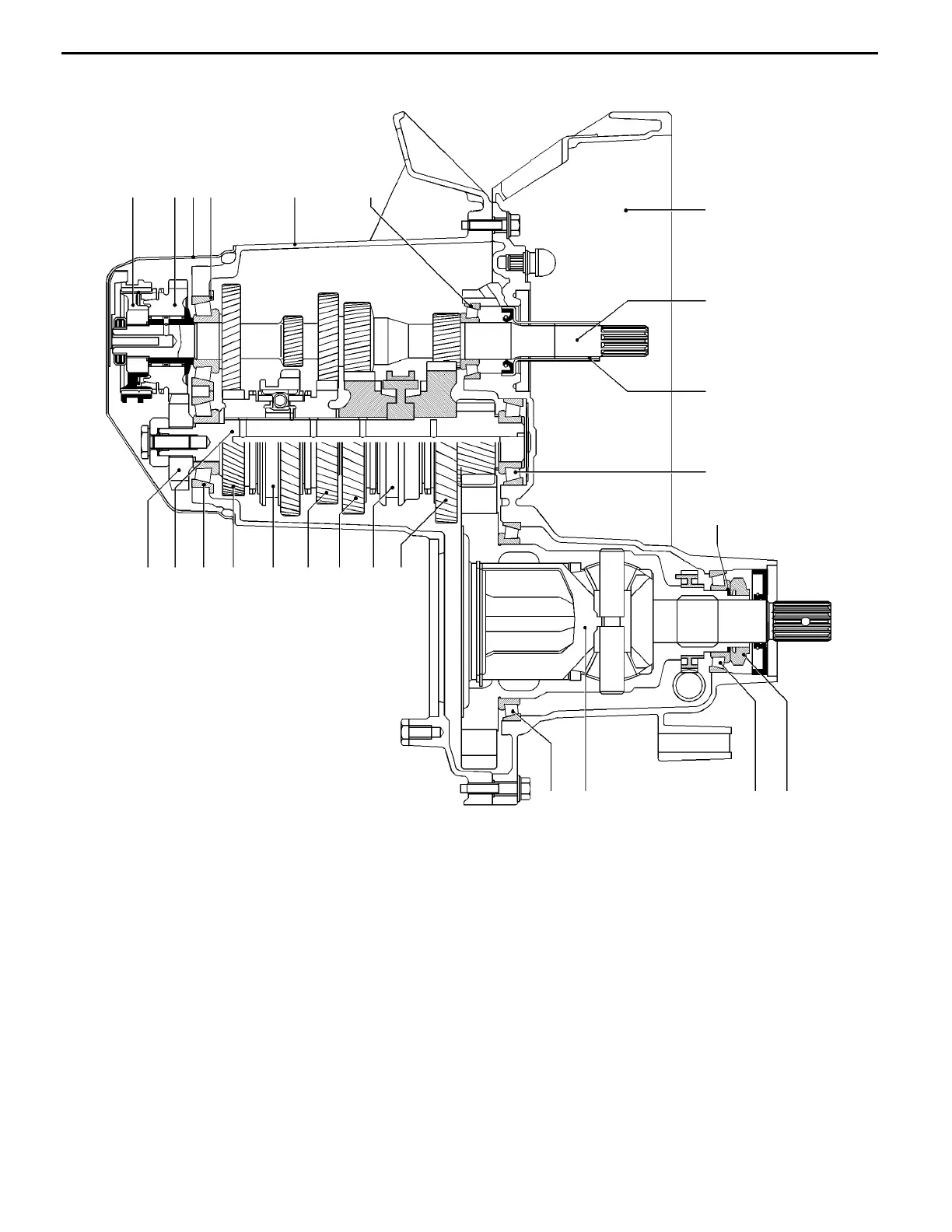

F5MR3 - Five-speed front wheel drive transmission
876 5 4
3
1
2
212019
18
9
10 11 12 13 14 15 16 17
23
22
24
RMT0001
1. Clutch housing
2. Input shaft
3. Guide bushing
4. Input shaft bearing
5. Transmission case
6. Input shaft bearing
7. Rear cover
8. 5th speed gear
9. 5th speed synchronizer assembly
10. 5th gear wheel
11. Output shaft
12. Output shaft bearing
13. 4th speed gear
14. 3rd - 4th speed synchronizer assem-
bly
15. 3rd speed gear
16. 2nd speed gear
17. 1st - 2nd speed synchronizer as-
sembly
18. 1st speed gear
19. Differential bearing
20. Differential
21. Differential bearing
22. Shim
23. Lock nut
24. Output shaft bearing
