7
WIRING

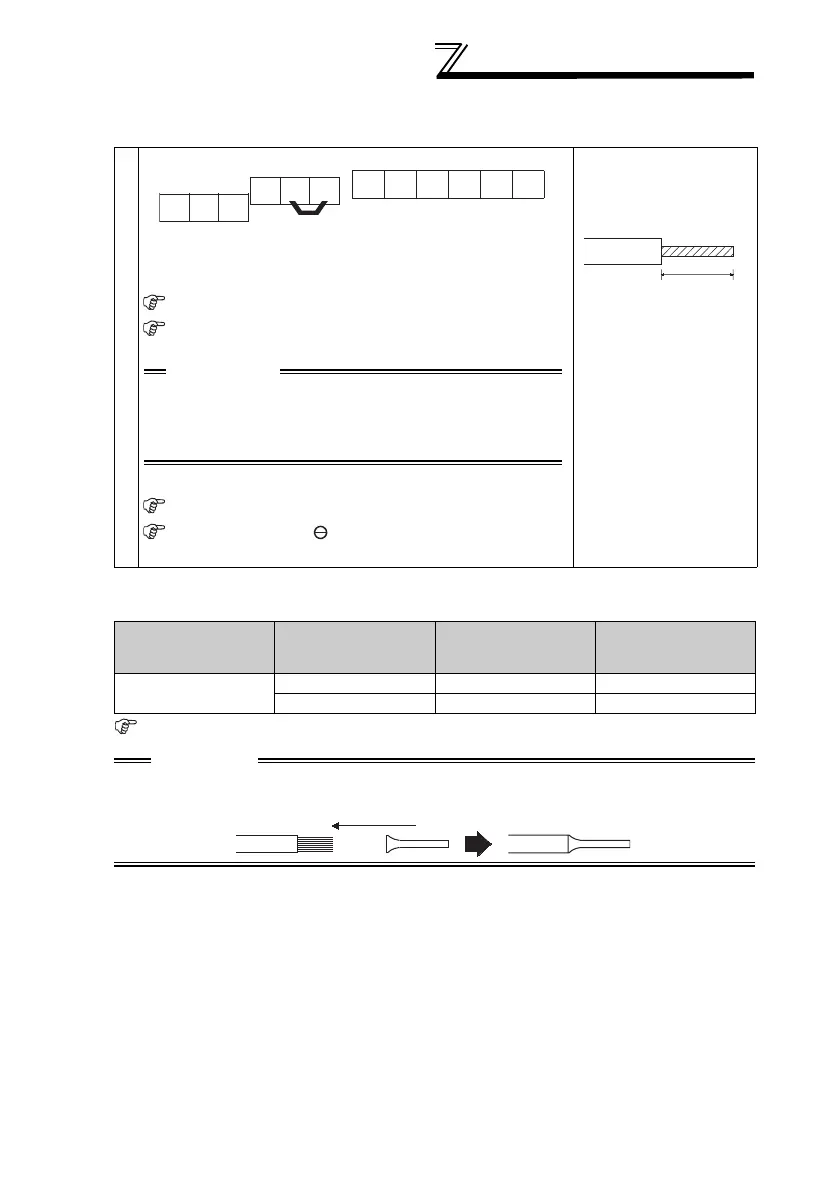

• Control circuit terminal layout
* Information on bar terminals
Introduced products (as of June, 2006) : Phoenix Contact Co.,Ltd.
Bar terminal crimping tool: CRIMPFOX ZA3 (Phoenix Contact Co., Ltd.)
Control circuit terminal block
Loosen the terminal screw and insert the cable into the
terminal.
Screw size : M3
Tightening torque : 0.5N
•m to 0.6N•m
Cable size : 0.3mm
2
to 0.75mm
2
Screwdriver : Small flat-blade screwdriver
(Tip thickness : 0.4mm / tip width : 2.5mm)
Terminal Screw Size
Bar Terminal Model
(with insulation
sleeve)
Bar Terminal Model
(without insulation
sleeve)
Cable Size (mm
2
)
M3
Al 0.5-6WH A 0.5-6 0.3 to 0.5
Al 0.75-6GY A 0.75-6 0.5 to 0.75
CAUTION
When using the bar terminal (without insulation sleeve), use care so that the twisted
wires do not come out.
AB
RES
Jumper
SD SD SD
MSG
MSG
C
PC
BUE
SD
CAUTION
Undertightening can cause cable disconnection
or malfunction. Overtightening can cause a
short circuit or malfunction due to damage to
the screw or unit.
6mm
Cable stripping size
Wire the stripped cable
after twisting it to
prevent it from
becoming loose.
In addition, do not
solder it.*
To Next Page
