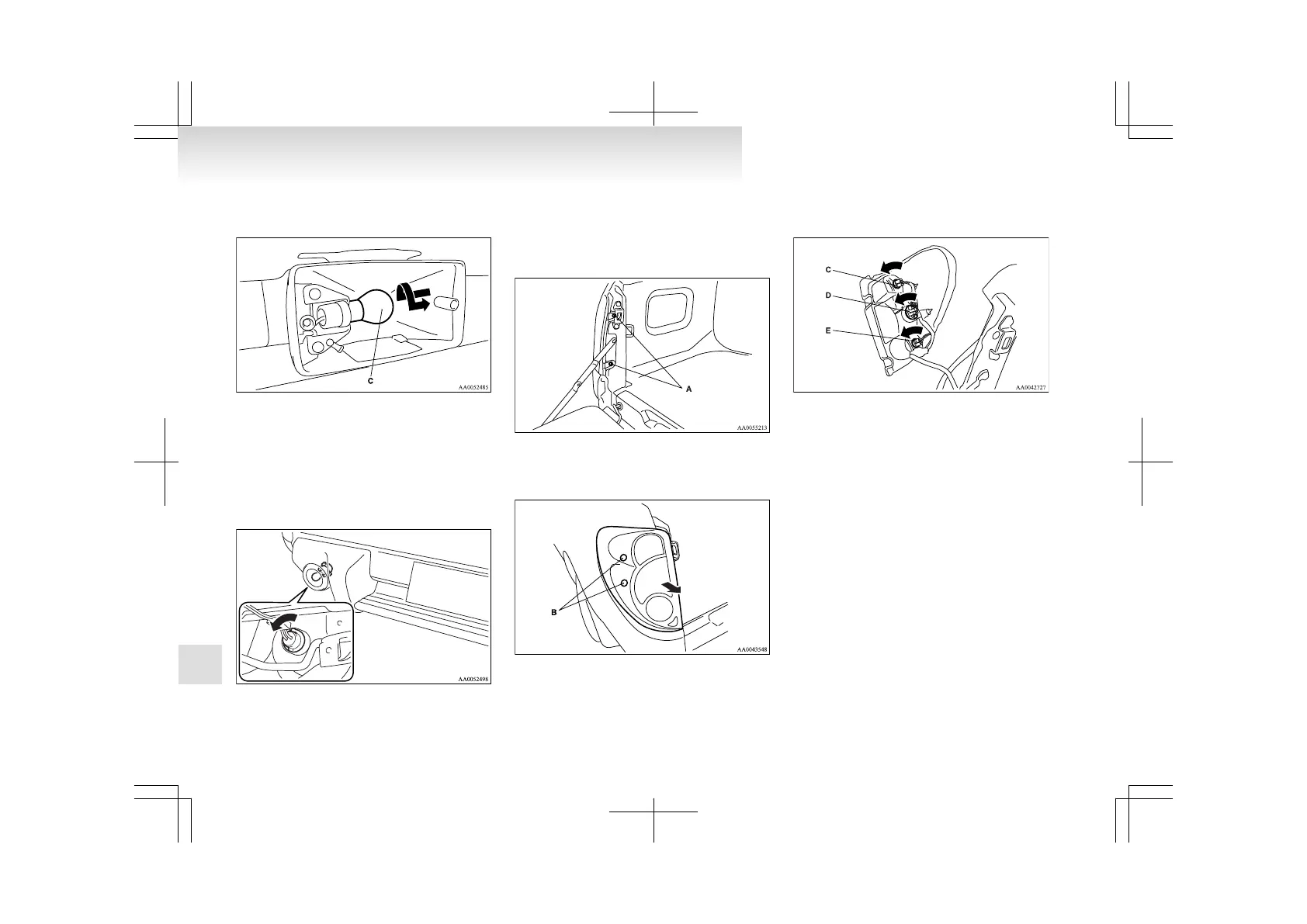

2. Remove the bulb (C) by turning it anticlock-
wise while pressing it inward.
3. To
install the bulb, perform the removal
steps in reverse.
Type 2 (Driver’s side only)
1. Remove the socket and bulb assemblies by
turning it anticlockwise, and then remove the
bulb by pulling out.
2. To
install the bulb, perform the removal
steps in reverse.
Rear combination lamps
E01004200763
1.
Open the rear gate.
(Refer to “Rear gate” on page 1-13.)
2. Remove the screws (A) that hold the lamp unit.
3. Move
the lamp unit towards the rear of the ve-
hicle and remove the clips (B).
4. Remove each socket and bulb assembly by
turning it anticlockwise.
C- Rear turn-signal lamp
Remove the bulb by pulling it out.
D- Tail and stop lamp
Remove the bulb from the socket by turn-
ing it anticlockwise while pressing in.
E- Reversing lamp
Remove the bulb by pulling it out.
5. To
install the bulb, perform the removal
steps in reverse.
NOTE
l
When mounting the lamp unit, align the pins
(F) and clip (G) on the lamp unit with the
holes (H) in the body.
