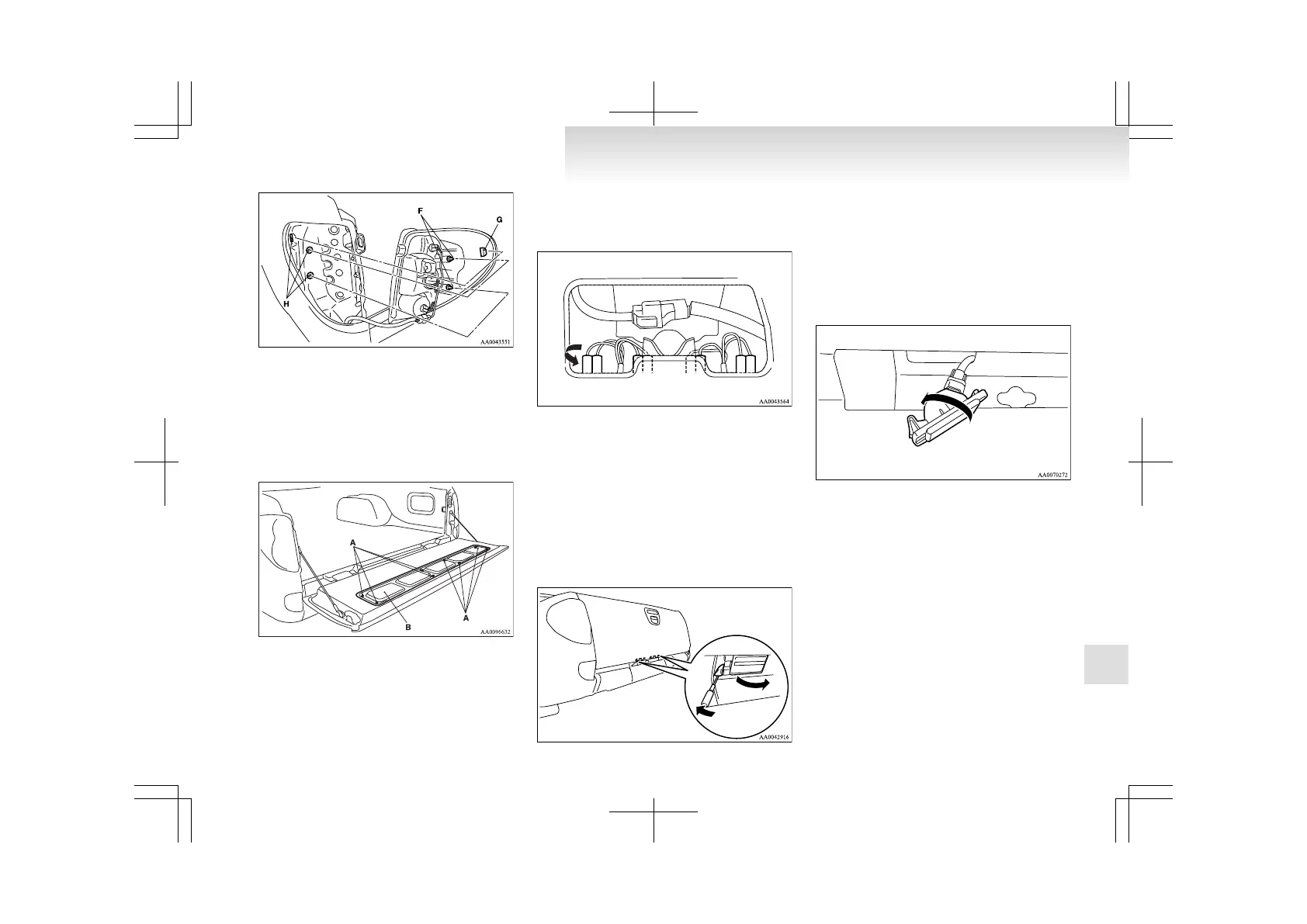

High-mounted stop lamp
E01004500577
1. Open the rear gate.
(Refer to “Rear gate” on page
1-13.)
2. Remove the 8 screws (A) from the inner sur-
face of the rear gate. Remove the rear gate
cover (B).
3. Remove the socket and bulb assembly togeth-
er by turning it anticlockwise, and then re-
move the bulb by pulling it out.
4. To
install the bulb, perform the removal
steps in reverse.
Licence plate lamps
E01004600969
Type 1
1. Insert
a straight blade (or minus) screwdriver
into the lamp assembly and pry gently to re-
move it.
NOTE
l
Wrap
a piece of cloth around the tip of the
screwdriver in order to avoid scratching the
lens and the body.
2. Remove the socket and bulb assembly togeth-
er by turning it anticlockwise, and then re-
move the bulb by pulling it out.
3. To
install the bulb, perform the removal
steps in reverse.
NOTE
l
When mounting the lamp unit, put the hook
(A) on the right side of the lamp unit into the
body first.
Maintenance
8-31
8
