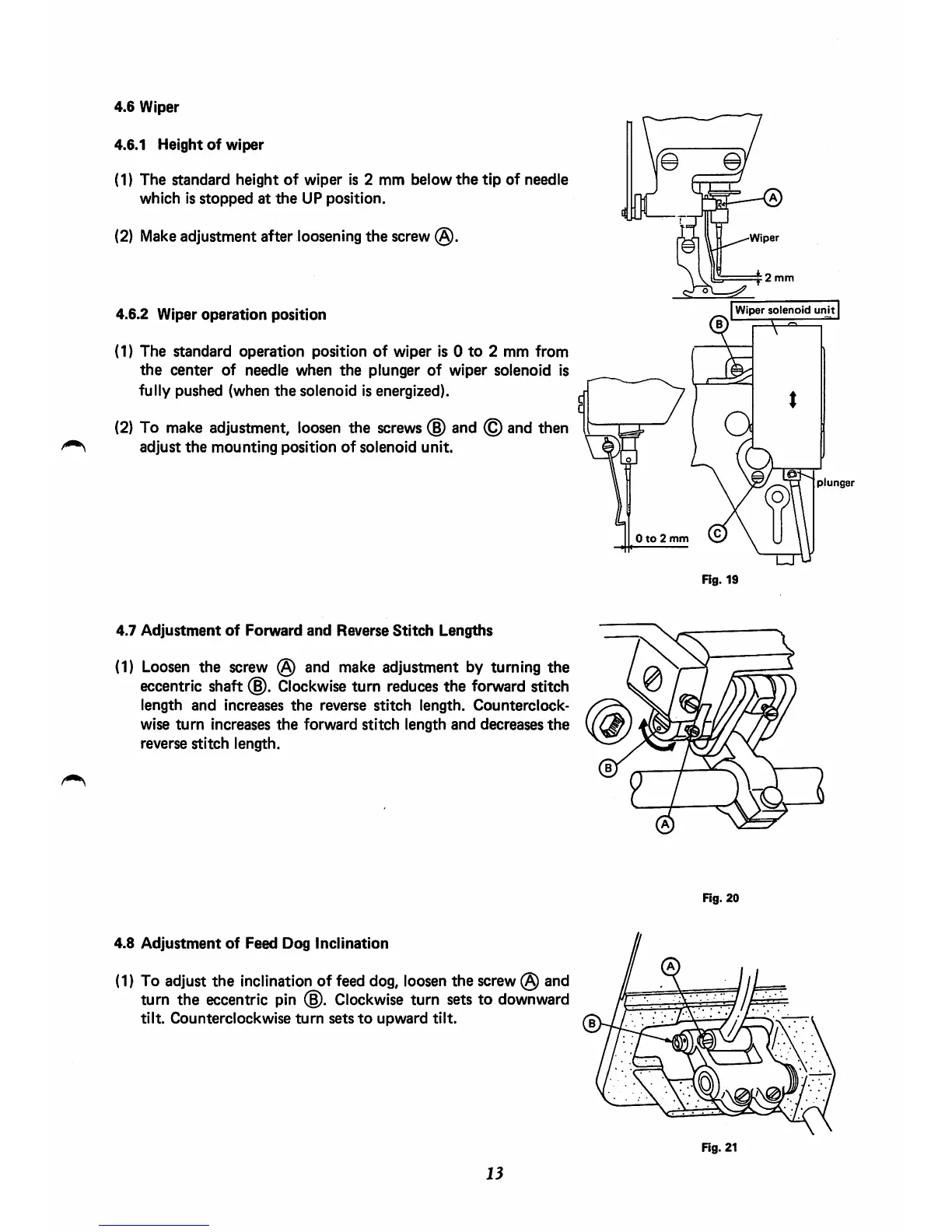

4.6
Wiper
4.6.1
Height
of
wiper
(1)
The
standard
height
of
wiper
is 2 mm
below
the
tip
of
needle
which
Is
stopped
at
the
UP
position.
(2)
Make
adjustment
after
loosening
the
screw
®.
4.6.2 Wiper
operation
position
(1)
The
standard
operation
position
of
wiper
is 0
to
2 mm
from
the
center
of
needle
when
the
plunger
of
wiper
solenoid
is
fully
pushed
(when
the
solenoid
is energized).
(2)
To
make
adjustment,
loosen
the
screws
(B)
and © and then
adjust
the
mounting
position
of
solenoid
unit.
4.7
Adjustment
of
Forward
and
Reverse
Stitch
Lengths
(1)
Loosen
the
screw
®
and
make
adjustment
by
turning
the
eccentric shaft (§).
Clockwise
turn
reduces
the forward stitch
length
and
increases
the
reverse
stitch
length.
Counterclock
wise
turn
increases
the
forward
stitch
length
and
decreases
the
reverse
stitch
length.
4.8
Adjustment
of
Feed
Dog
Inclination
(1)
To
adjust
the
inclination
of
feed
dog,
loosen
the
screw
® and
turn the
eccentric
pin
®.
Clockwise
turn
sets
to
downward
tilt.
Counterclockwise
turn
sets
to
upward
tilt.
13
0
to
2
mm
0
2
mm
Wiper
solenoid
unit
plunger
Rg.
19
Rg.
20
Rg.
21
