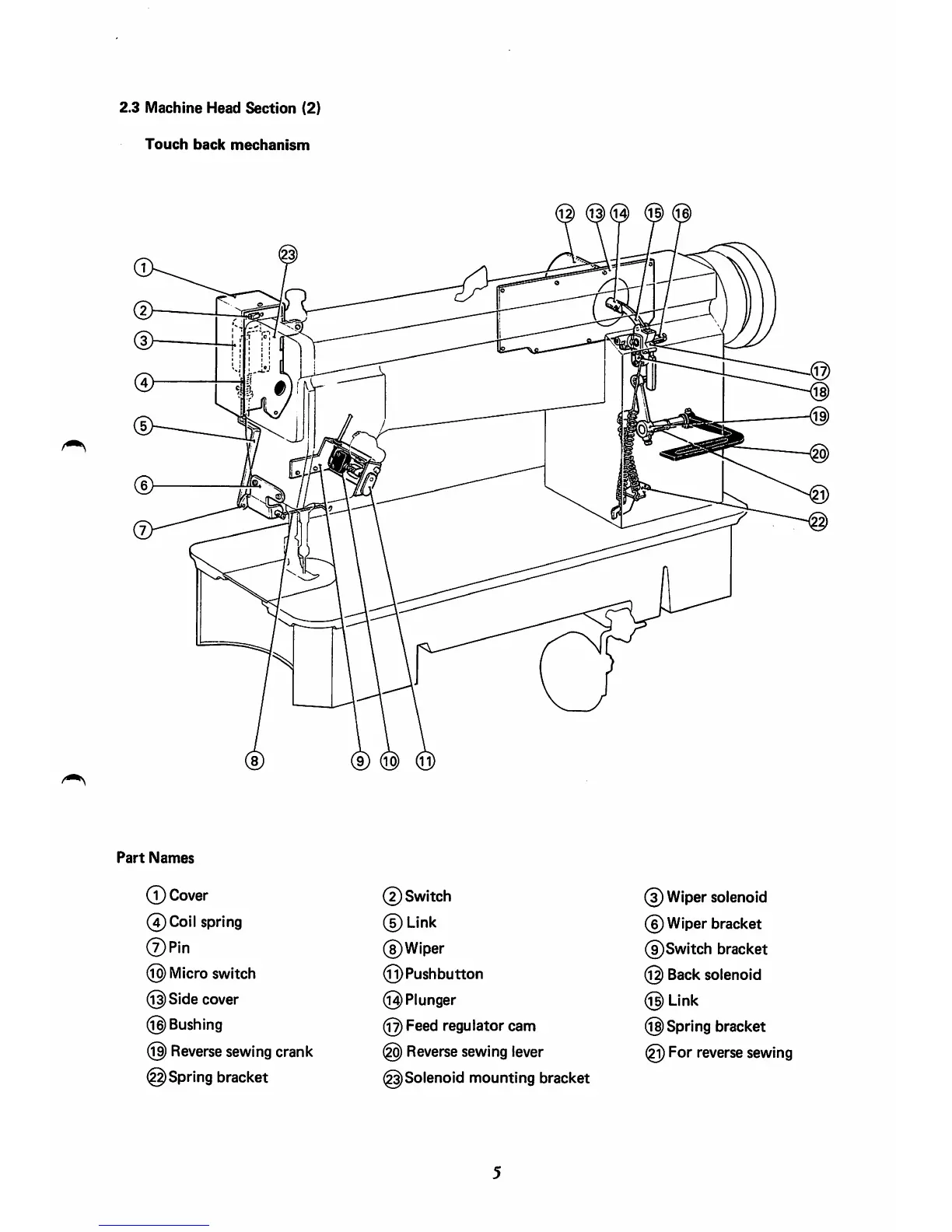

2.3 Machine Head Section (2)
Touch back mechanism
Part Names
® Cover
(4)Coil spring
@Pin
@ Micro switch
@Side cover
@ Bushing
@ Reverse sewing crank
<§) Spring bracket
(D Switch
(5) Link
@Wiper
(n) Pushbutton
@ Plunger
(g) Feed regulator cam
@ Reverse sewing lever
(||)Solenoid mounting bracket
@ Wiper solenoid
(e) Wiperbracket
(9)Switch bracket
(g) Back solenoid
@ Link
@ Spring bracket
(|l)For reverse sewing
@
-Ql)
