2. THREAD TRIMMER SYSTEM
2.1 Electric Section

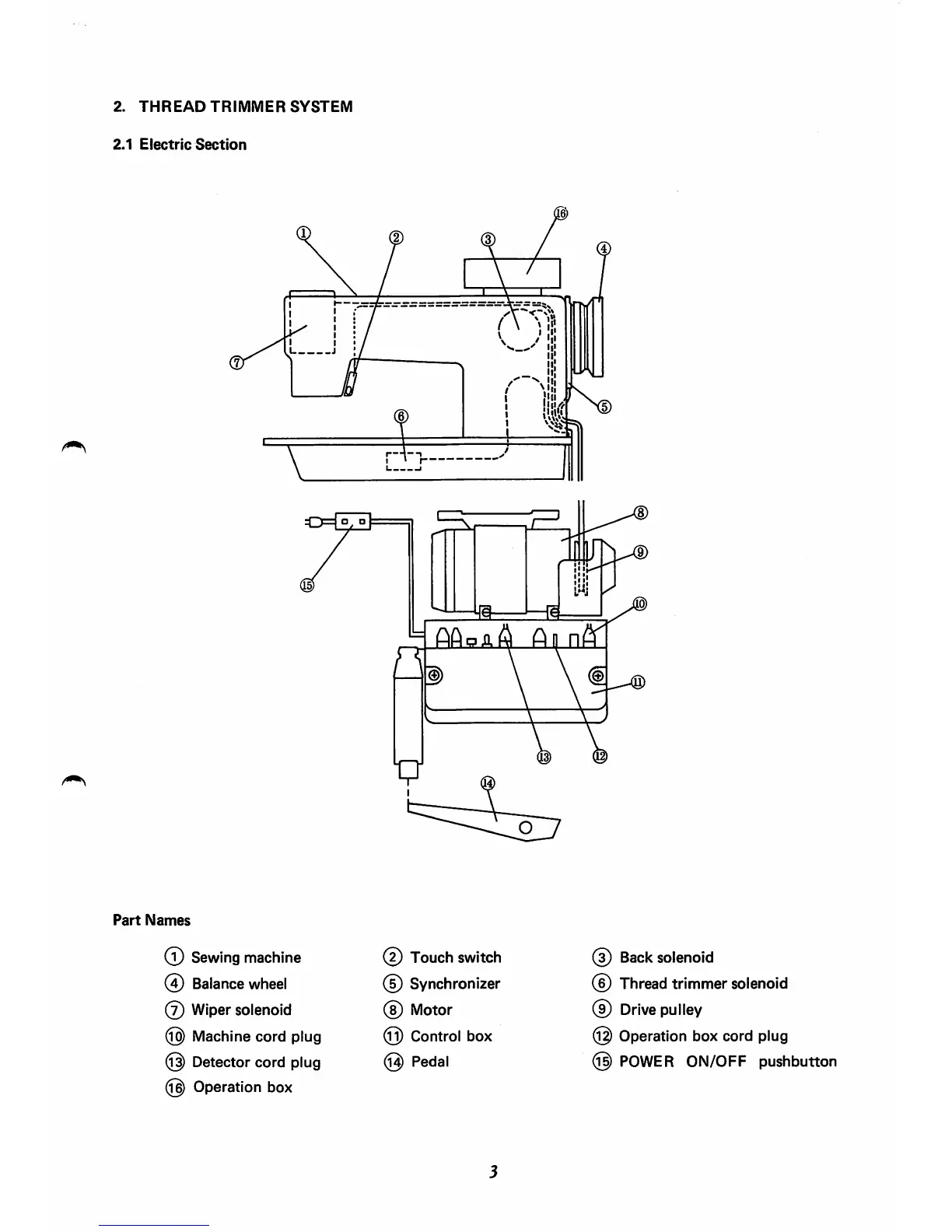

Part Names
(T) Sewing machine
® Balance wheel
(7) Wiper solenoid
@ Machine cord plug
@ Detector cord plug
(iB) Operation box
(2) Touch switch
(5) Synchronizer
(§) Motor
@ Control box
@ Pedal
(3) Back solenoid
(e) Thread trimmer solenoid
(9) Drive pulley
@ Operation box cord plug
® POWER ON/OFF pushbutton
