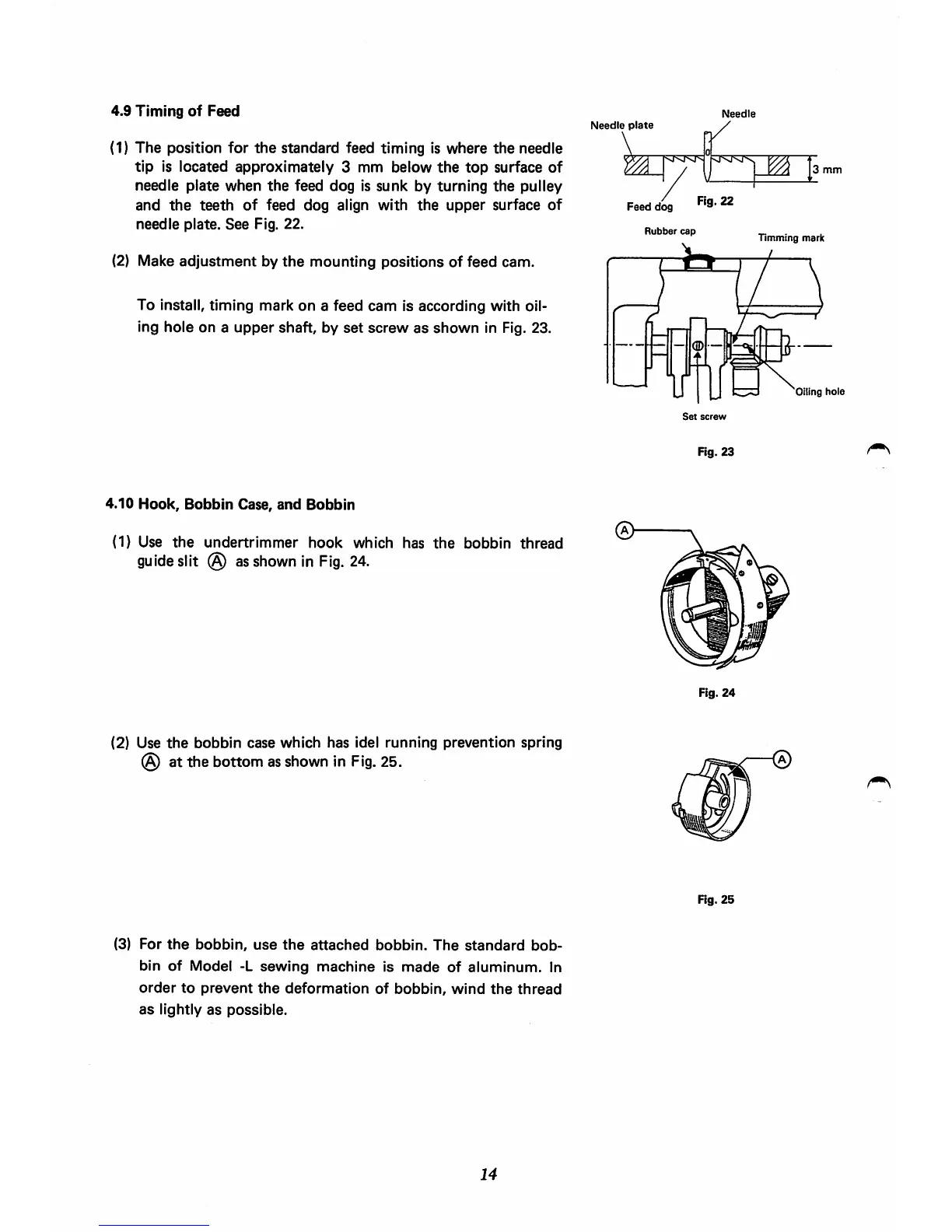

4.9 Timing of Feed
(1) The position for the standard feed timing is where the needle
tip is located approximately 3 mm below the top surface of
needle plate when the feed dog is sunk by turning the pulley
and the teeth of feed dog align with the upper surface of
needle plate. See Fig. 22.
(2) Make adjustment by the mounting positions of feed cam.
To install, timing mark on a feed cam Is according with oil
ing hole on a
upper shaft, by set screw as shown in Fig. 23.
4.10 Hook, Bobbin Case, and Bobbin
(1) Use the undertrimmer hook which has the bobbin thread
guide slit @ as shown in Fig. 24.
(2) Use the bobbin case which has idel running prevention spring
@ at the bottom as shown in Fig. 25.
(3) For the bobbin, use the attached bobbin. The standard bob
bin of Model -L sewing machine is made of aluminum. In
order to prevent the deformation of bobbin, wind the thread
as lightly as possible.
14
Needle
Needle plate
Feed dog ^
Rubber cap
Set screw
Fig. 23
Fig. 24
Rg. 25
3 mm
Timming mark
Oiling hole
