Outside dimensions/Installation dimensions 3-58
3.3.3 Cable lead-in and dimension

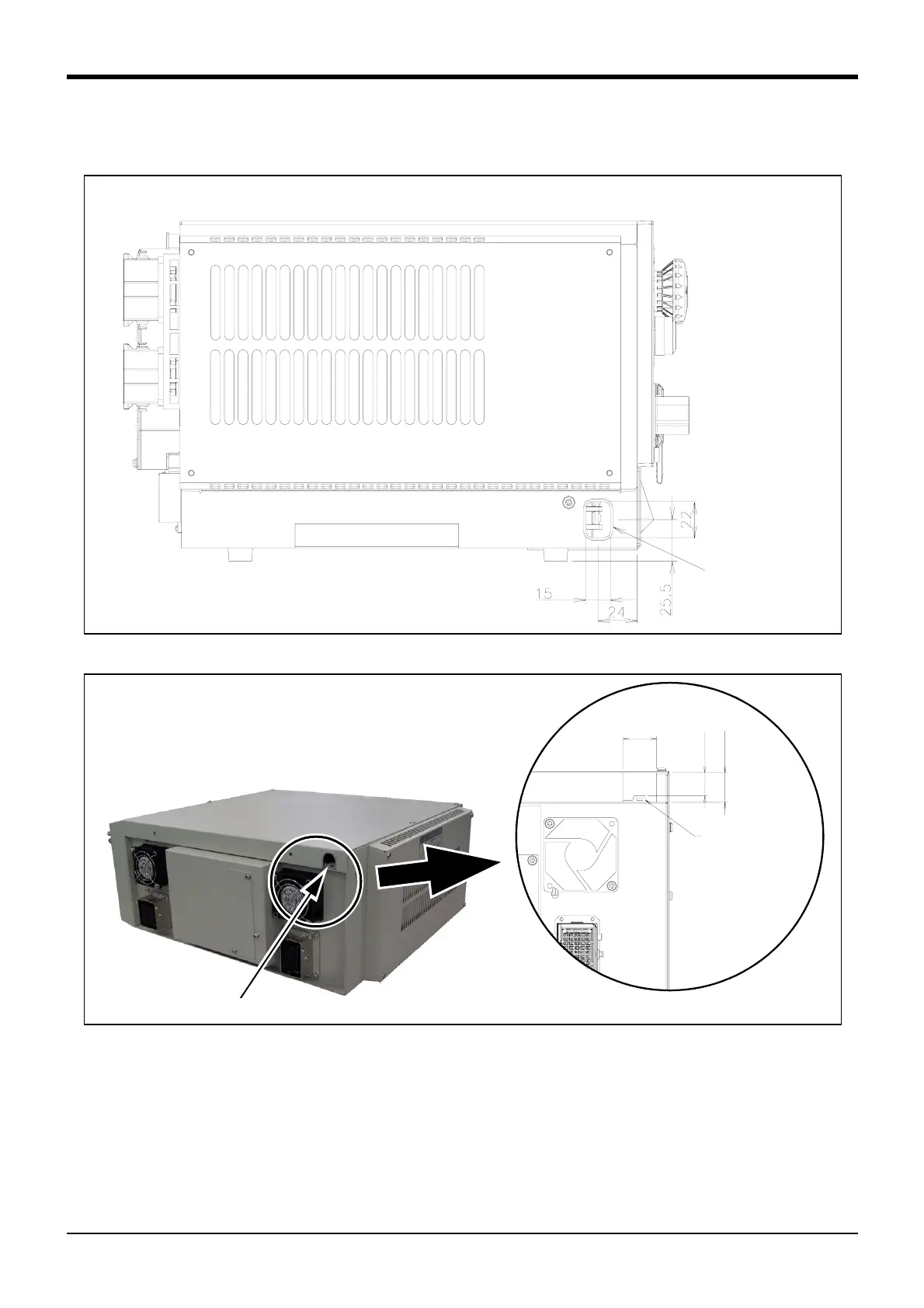

The controller has the openings parts for pulling out the cable as shown in Fig. 3-16, Fig. 3-17 .
Fig.3-16 ： Cable lead-in and dimension of the controller （DU1A-700 series）
Fig.3-17 ： Cable lead-in and dimension of the controller （DU2A-700 series）
<DU1A-700 series>
Input power supply
lead-in (15x22)
<DU2A-700 series>
27
18.7 23.8
配線固定具
Input power supply lead-in
Cable fixing plate
